Carrier 58PHA Performance Boost 80 Series User Manual

SEE NOTES: 1,2,4,7,8,9 on the page
following these figures
'4 I"
SEE NOTES: 1,2,4,5,7,8,9 on the page
following these figures
A03214

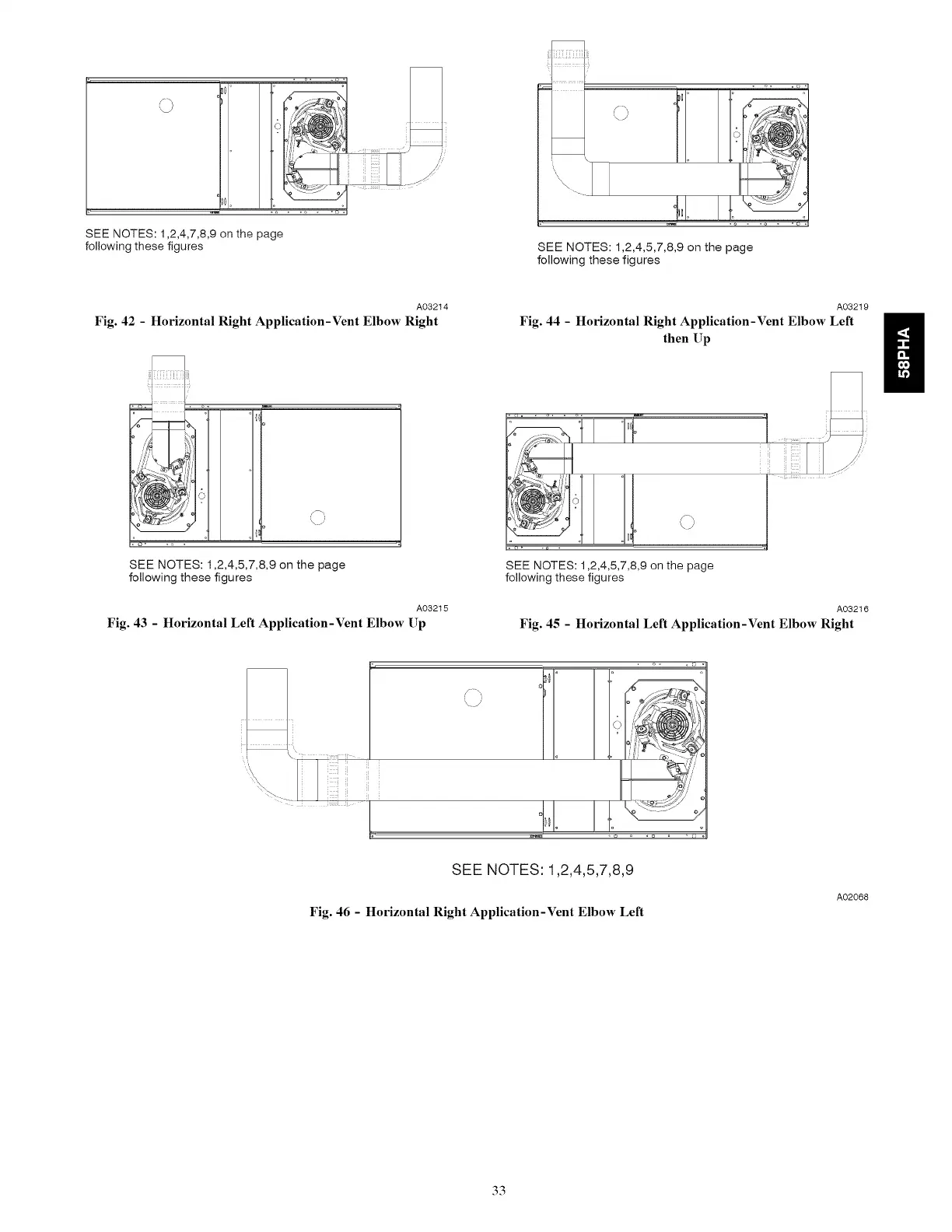

Fig. 42 - Horizontal Right Application-Vent Elbow Right
o o
SEE NOTES: 1,2,4,5,7,8,9 on the page
following these figures
A03215
Fig. 43 - Horizontal Left Application-Vent Elbow Up
A03219
Fig. 44 - Horizontal Right Application-Vent Elbow Left
then Up
oOC
SEE NOTES: 1,2,4,5,7,8,9 on the page
following these figures
A03216
Fig. 45 - Horizontal Left Application-Vent Elbow Right
H
SEE NOTES: 1,2,4,5,7,8,9
Fig. 46 - Horizontal Right Application-Vent Elbow Left
A02068
33
