Table 11 – Electrical Data
UNIT SIZE
V O LT S ---
H E R T Z ---
PHASE
OPERATING VOLTAGE
RANGE*
MAXIMUM
UNIT
AMPS
UNIT
AMPACITY#
MINIMUM
WIRE
SIZE
AWG
MAXIMUM
WIRE
LENGTH
FT (M)}
MAXIMUM
FUSE OR C KT
BKR
AMPS{
Maximum* Minimum*
040---10 1 1 5 --- 6 0 --- 1 127 104 7.0 9.8 14 38 (11.6) 15
040---12 1 1 5 --- 6 0 --- 1 127 104 7.0 9.8 14 38 (11.6) 15
060---12 1 1 5 --- 6 0 --- 1 127 104 7.1 9.9 14 37 (11.3) 15
060---14 1 1 5 --- 6 0 --- 1 127 104 7.1 9.9 14 37 (11.3) 15
080---16 1 1 5 --- 6 0 --- 1 127 104 7.1 9.9 14 37 (11.3) 15
080---20 1 1 5 --- 6 0 --- 1 127 104 9.5 12.9 14 28 (8.5) 15
100---20 1 1 5 --- 6 0 --- 1 127 104 9.6 12.9 14 28 (8.5) 15
120---20 1 1 5 --- 6 0 --- 1 127 104 9.6 12.9 14 28 (8.5) 15
* Permissible limits of the voltage range at which the unit operates satisfactorily.
# Unit ampacity = 125 percent of largest operating component’s full load amps plus 100 percent of all other potential operating components’ (EAC, humidifier,
etc.) f ull load amps.
{Time---delay type is recommended.
}Length shown is as measured one way along wire path between furnace and service panel for maximum 2 percent voltage drop.
A12226

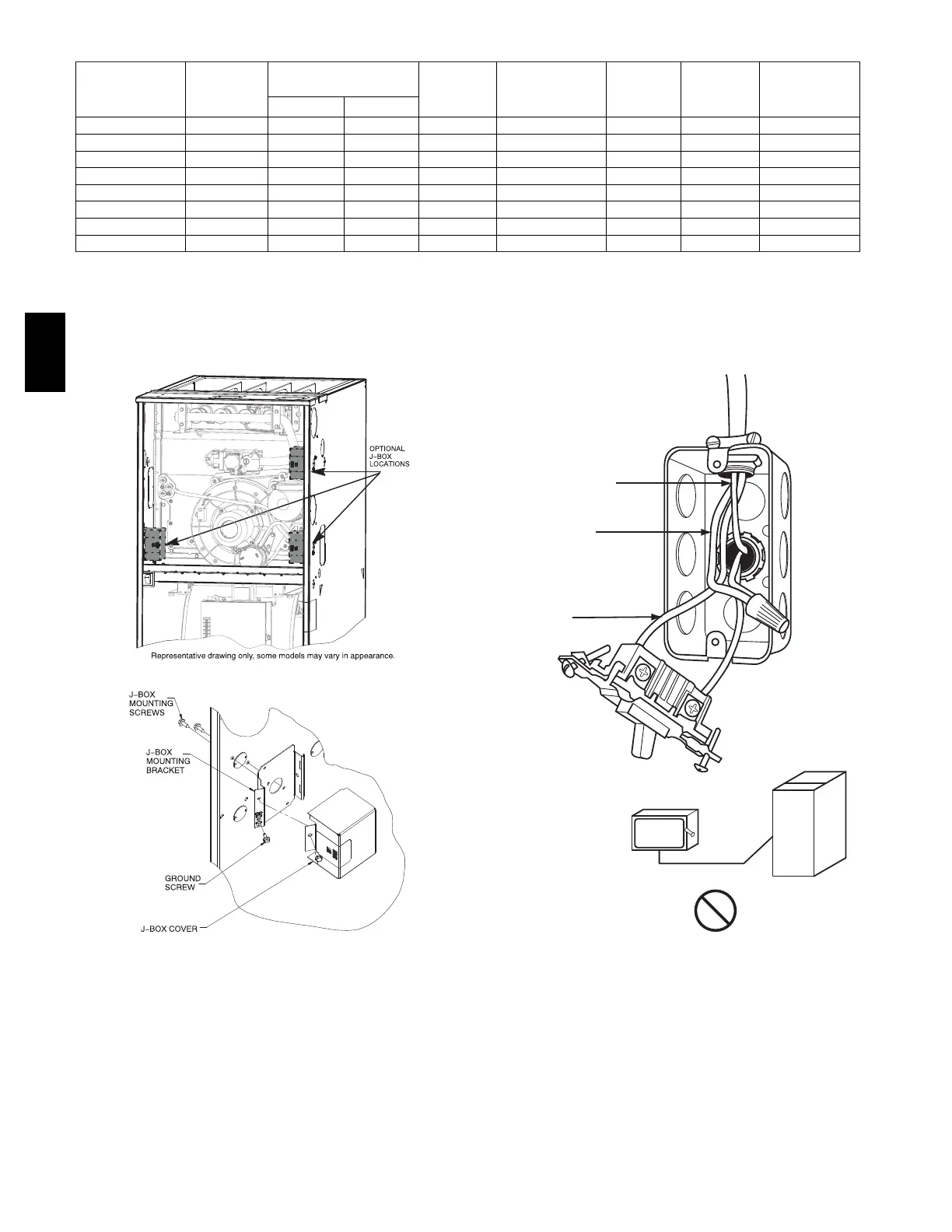

Fig. 34 -- Installing J--Box (When Used)
COPPER
WIRE ONLY
ELECTRIC
DISCONNECT
SWITCH
ALUMINUM
WIRE
GROUND
NEUTRAL
LINE VOLTAGE
A11146
Fig. 35 -- Field--Supplied External Electrical Box on Furnace
Casing
59SP2A
