28
ANY COMBINATION OF 1, 2, OR 3 PERMITTED.
A11036

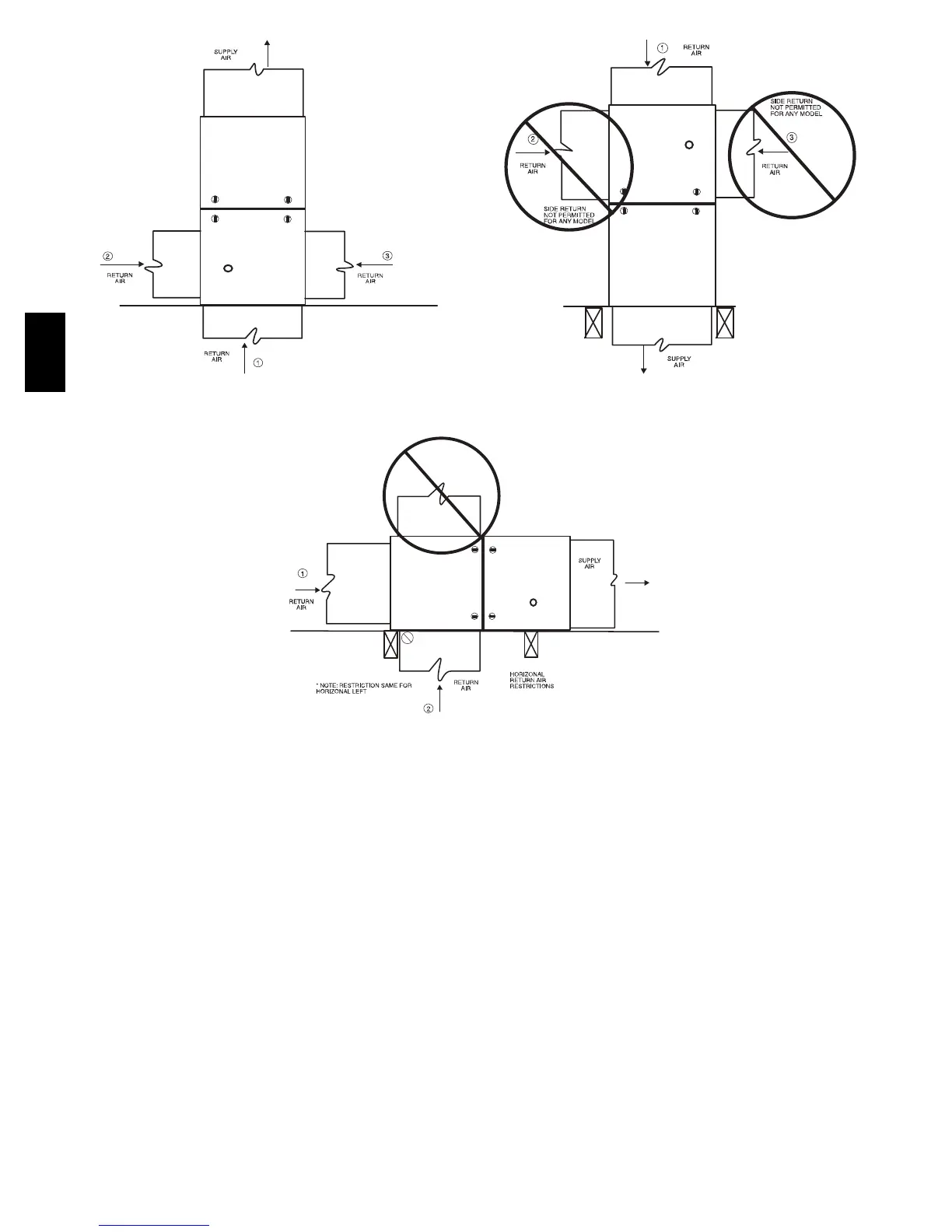

Fig. 24 -- Upflow Return Air Configurations and Restrictions
A11037
Fig. 25 -- Downflow Return Air Configurations
and Restrictions
HORIZONTAL TOP
RETURN NOT
PERMITTED FOR
ANY MODEL
A11038
Fig. 26 -- Horizontal Return Air Configurations
and Restrictions
59TP6A
