Carrier 59TP6A - Fig. 51 - Vent Terminations for Ventilated Combustion Air

Carrier 59TP6A
92 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
63
3ā€ (76 mm)
12ā€ (305 mm)
Pipe hangar
Ventilated Combustion Air
intake termination in crawl
space
Ventilated Combustion
Air intake pipe
CRAWL SPACE
ATTIC
highest level of insulation
A10497

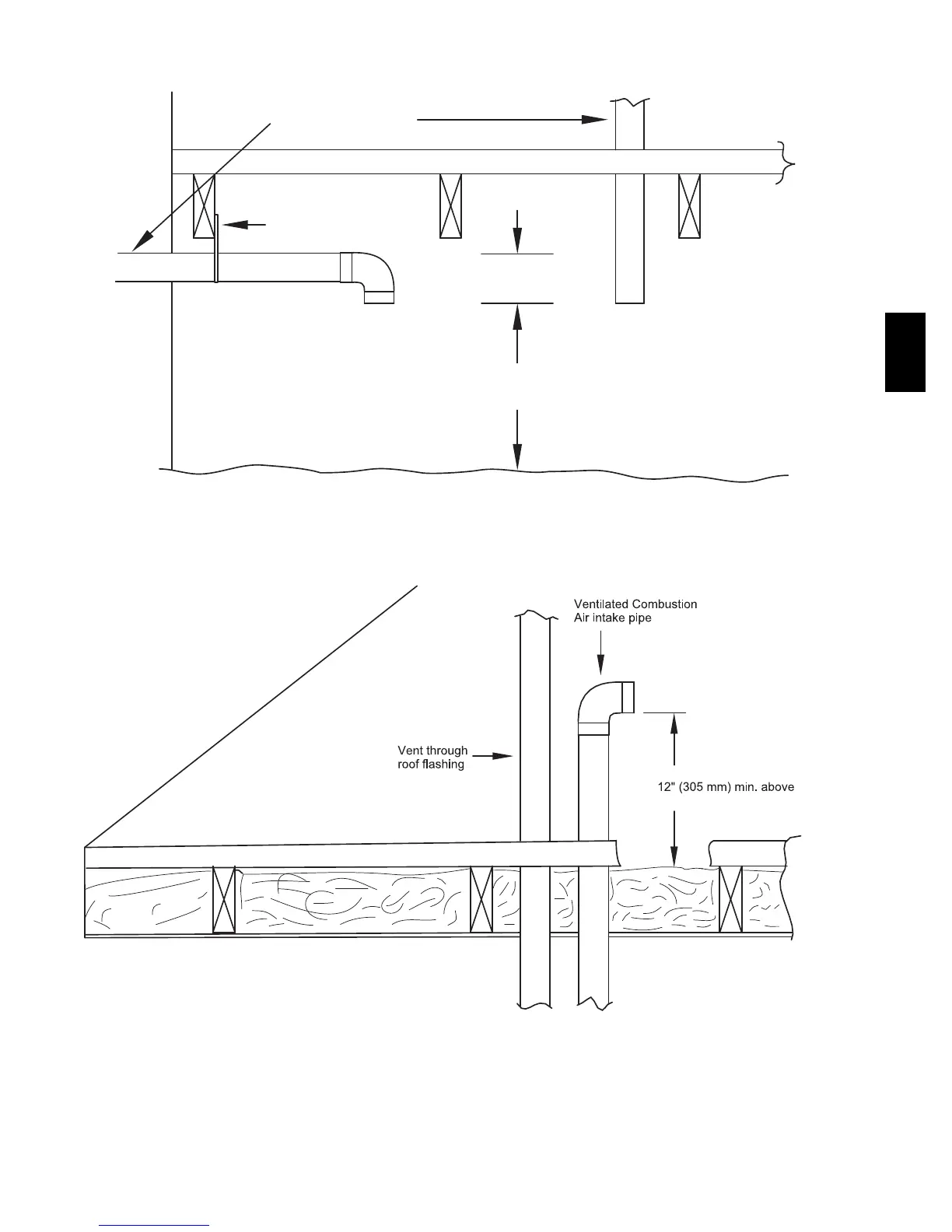

Fig. 51 -- Vent Terminations for Ventilated Combustion Air
59TP6A
