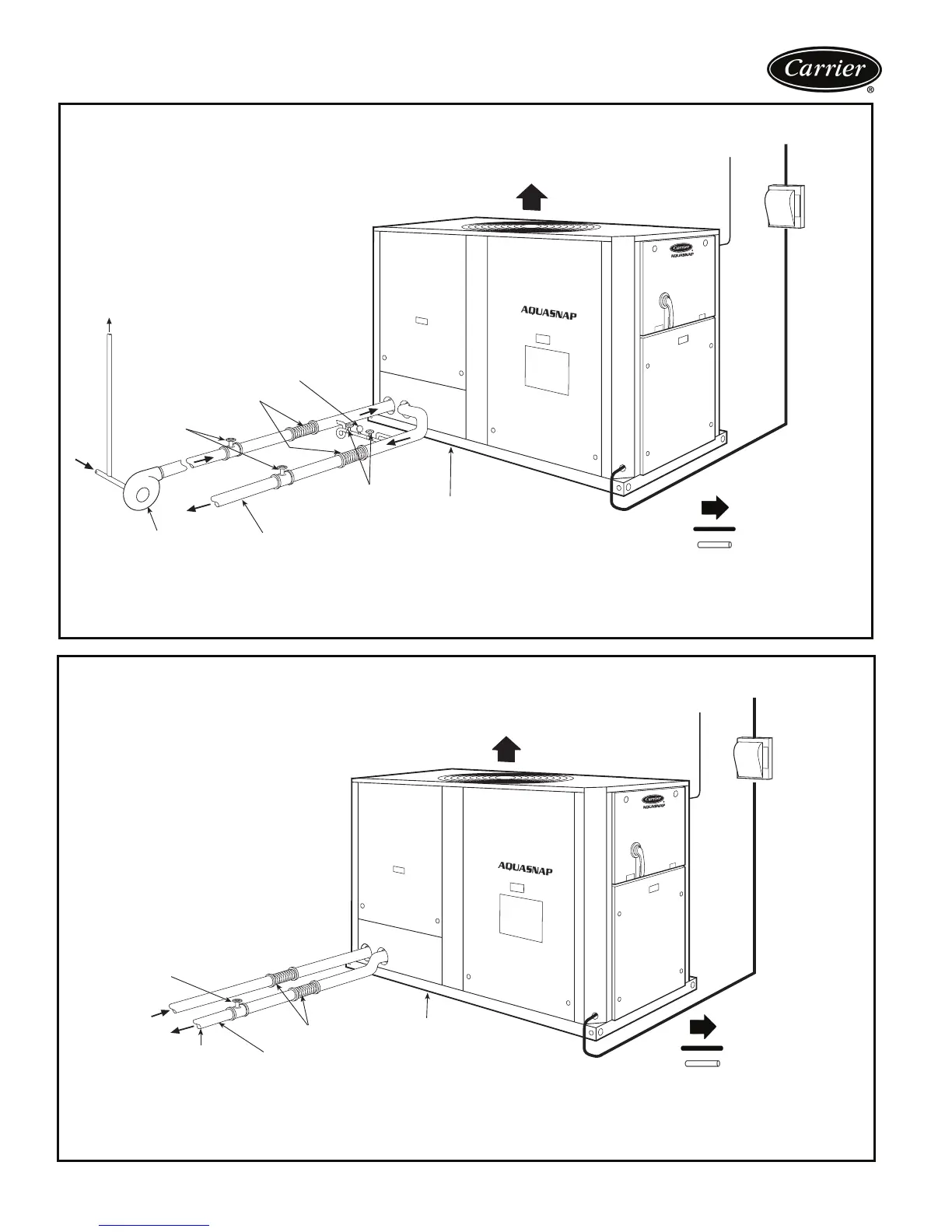

Typical piping and wiring
AIR FLOW
FIELD
POWER
SUPPLY
DRAIN
FLOW
GATE
VALVE
VIBRATION
ELIMINATOR
VALVE
PRESSURE
GAGE
SHUT OFF
VALVES
HEAT TAPE INSULATION IS RECOMMENDED ON ALL EXPOSED PIPING
IF AMBIENT TEMPERATURE <32 F (0° C) AND NO ANTIFREEZE SOLUTION IS IN SYSTEM
CONTROL
WIRING
TO
EXPANSION
TANK
PUMP
AIR FLOW
FIELD
POWER
SUPPLY
DRAIN
FLOW
GATE
VALVE
VIBRATION
ELIMINATOR
NOTE 5
HEAT TAPE INSULATION IS RECOMMENDED ON ALL EXPOSED PIPING
IF AMBIENT TEMPERATURE <32 F (0° C) AND NO ANTIFREEZE SOLUTION IS IN SYSTEM
CONTROL
WIRING
30RA UNITS WITHOUT HYDRONIC PACKAGE
30RA UNITS WITH HYDRONIC PACKAGE
NOTES:
1. Chiller must be installed level to within
1
/
8
in. per foot (10.4 mm per meter) to maintain proper compressor oil return and hydraulics.
2. Wiring and piping shown are general points-of-connection guides only and are not intended for a specific installation. Wiring and piping shown are
for a quick overview of system and are not in accordance with recognized standards.
3. All wiring must comply with applicable local and national codes.
4. All piping must follow standard piping techniques. Refer to Carrier System Design Manual or appropriate ASHRAE (American Society of Heating,
Refrigeration, and Air Conditioning Engineers) handbook for details.
LEGEND
Airflow Through Condenser
Power Wiring
Chilled Water Piping
LEGEND
Airflow Through Condenser
Power Wiring
Chilled Water Piping
NOTES:
1. Chiller must be installed level to within
1
/
8
in. per foot (10.4 mm per meter) to maintain proper compressor oil return and hydraulics.
2. Wiring and piping shown are general points-of-connection guides only and are not intended for a specific installation. Wiring and piping shown are for a
quick overview of system and are not in accordance with recognized standards.
3. All wiring must comply with applicable local and national codes.
4. All piping must follow standard piping techniques. Refer to Carrier System Design Manual or appropriate ASHRAE (American Society of Heating,
Refrigeration, and Air Conditioning Engineers) handbook for details.
5. Air separator required as close to chiller as possible (except primary/secondary systems).

Carrier AQUASNAP 30RA010-055 Specifications

General

Model	30RA010-055
Category	Chiller
Refrigerant	R-410A
Compressor Type	Scroll
Type	Air-cooled
Operating Range	10-46°C (Ambient Air Temperature)
Dimensions	Varies by model
Weight	Varies by model
Sound Level	68-75 dB(A)
