High Wall Type
Installation Manual
–10–
EN

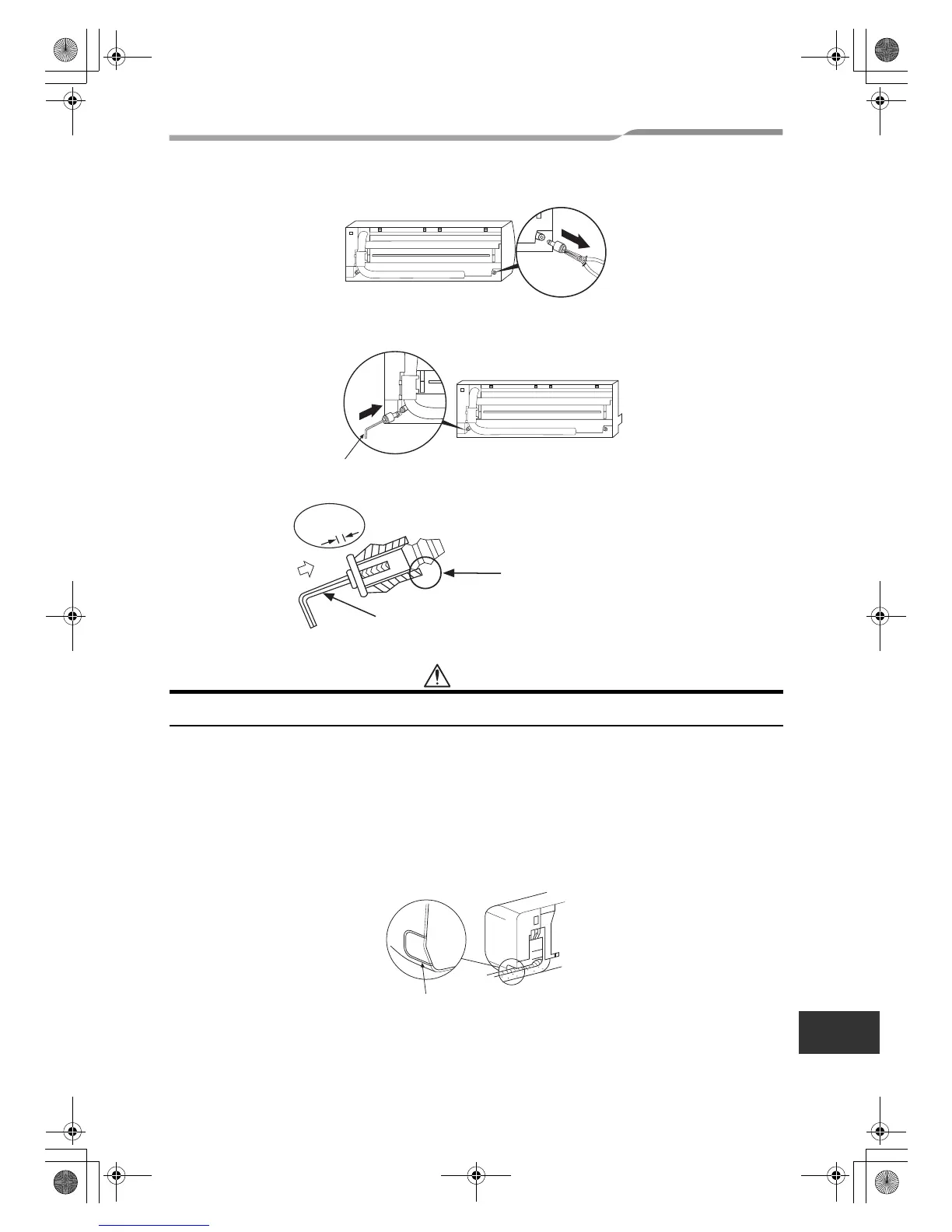

Remove the drains cap
Clip the drain cap by needle-nose pliers and pull out.
Fix the drains cap
1) Insert a 4 mm hexagonal wrench in a centre head.
2) Firmly insert drains cap.
CAUTION
Firmly insert the drain hose and drain cap; otherwise, water may leak.
▼ Right or left piping
• After scribing slits of the front panel with a knife or a marking-off pin, cut them with a pair of nippers or an
equivalent tool.
Remove the drain hose
1) Remove the front panel.
2) Remove the screws of drain hose.
3) Pull out the drain hose.
Fix the drain hose
1) Put the drain hose.
2) Screw the drain hose to the indoor unit.
3) Install the front panel.
4 mm
No gap
Do not apply lubricating oil (refrigerant
machine oil) when inserting the drain cap.
Application causes deterioration and drain
leakage from the plug.
Insert a 4 mm hexagon
wrench
Slit
10-EN
+001111053901_00Ta.book Page 10 Monday, January 17, 2011 11:35 AM
