Wireless remote control
• A place where there are no obstacles such as a curtain that may block the signal from the indoor unit.
• Do not install the remote control in a place exposed to direct sunlight or close to a heating source, such
as a stove.
• Keep the remote control at least 3’3” (1 m) apart from the nearest TV set or stereo equipment.
(This is necessary to prevent image disturb-bounces or noise interference.)

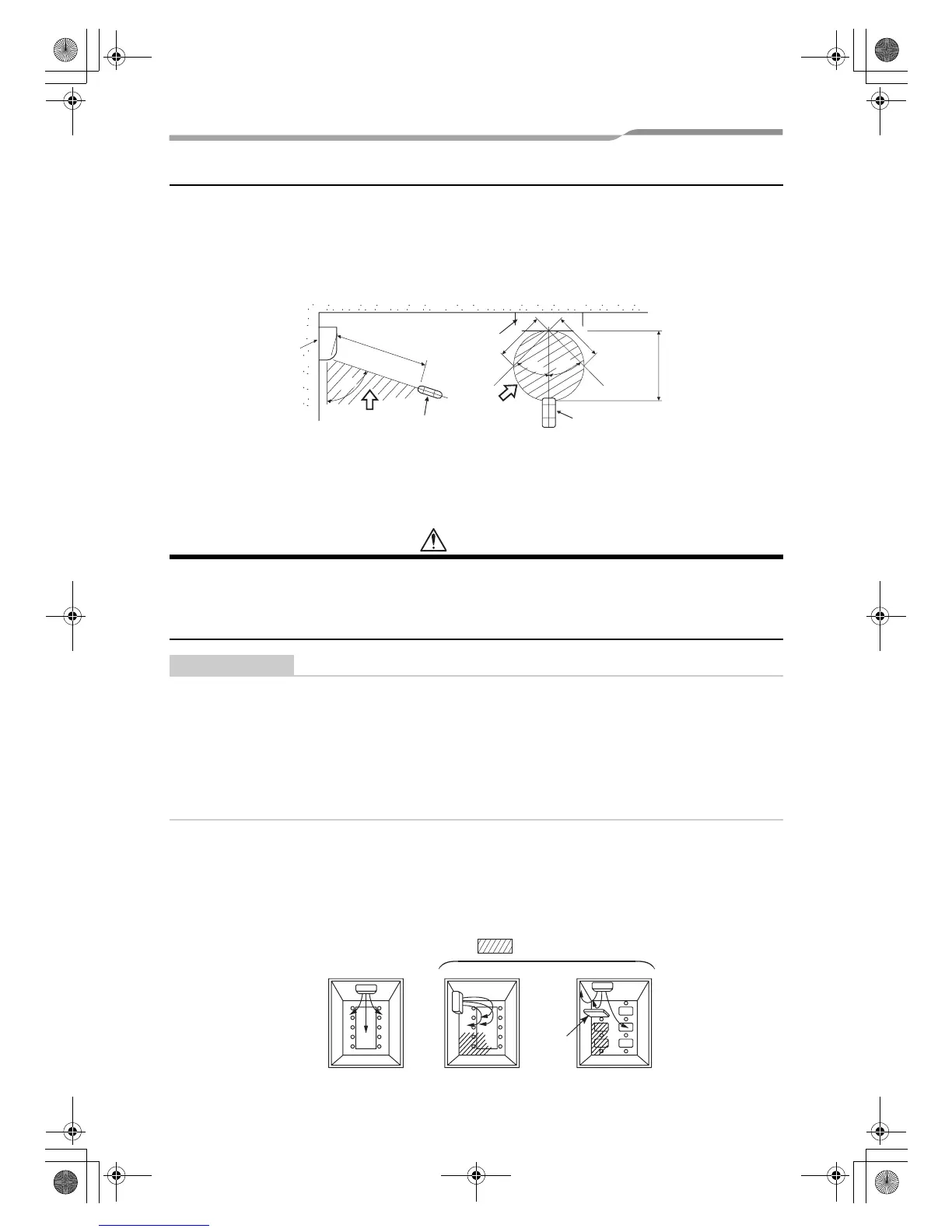

• The location of the remote control should be determined as shown below.
4 Installation of Indoor Unit
WARNING
Install the air conditioner certainly to sufficiently withstand the weight.
If the strength is insufficient, the unit may fall down resulting in human injury.
Perform a specified installation work to guard against strong wind or earthquake.
An incomplete installation can cause accidents by the units falling and dropping.
REQUIREMENT
Strictly comply with the following rules to prevent damage of the indoor units and human injury.
• Do not put a heavy article on the indoor unit. (Even units are packaged)
• Carry in the indoor unit as it is packaged if possible. If carrying in the indoor unit unpacked by necessity,
use buffering cloth to not damage the unit.
• To move the indoor unit, do not apply force to the refrigerant pipe, drain pan, foamed parts, or resin
parts.
• Carry the package by two or more persons, and do not bundle it with plastic band at positions other than
specified.
Following item shall be considered to install the unit.
• Considering air discharge direction, select an installation place where discharge air can circulate evenly
in a room. Avoid to install the unit at place with “NO GOOD” mark in the right figure.
(Side view) (Top view)
Remote control
Reception
range
*: Axial distance
Indoor unit
Remote control
* 23’ (7 m)
Indoor unit
1
6
’
5
”
(
5
m
)
16’5” (5
m)
2
3
’
(
7
m
)
7
5
°
4
5
°
4
5
°
Reception range
Good installation place
Cooled well all over.
Bad installation place
: Not cooled well.
Screen
OK NO GOOD
