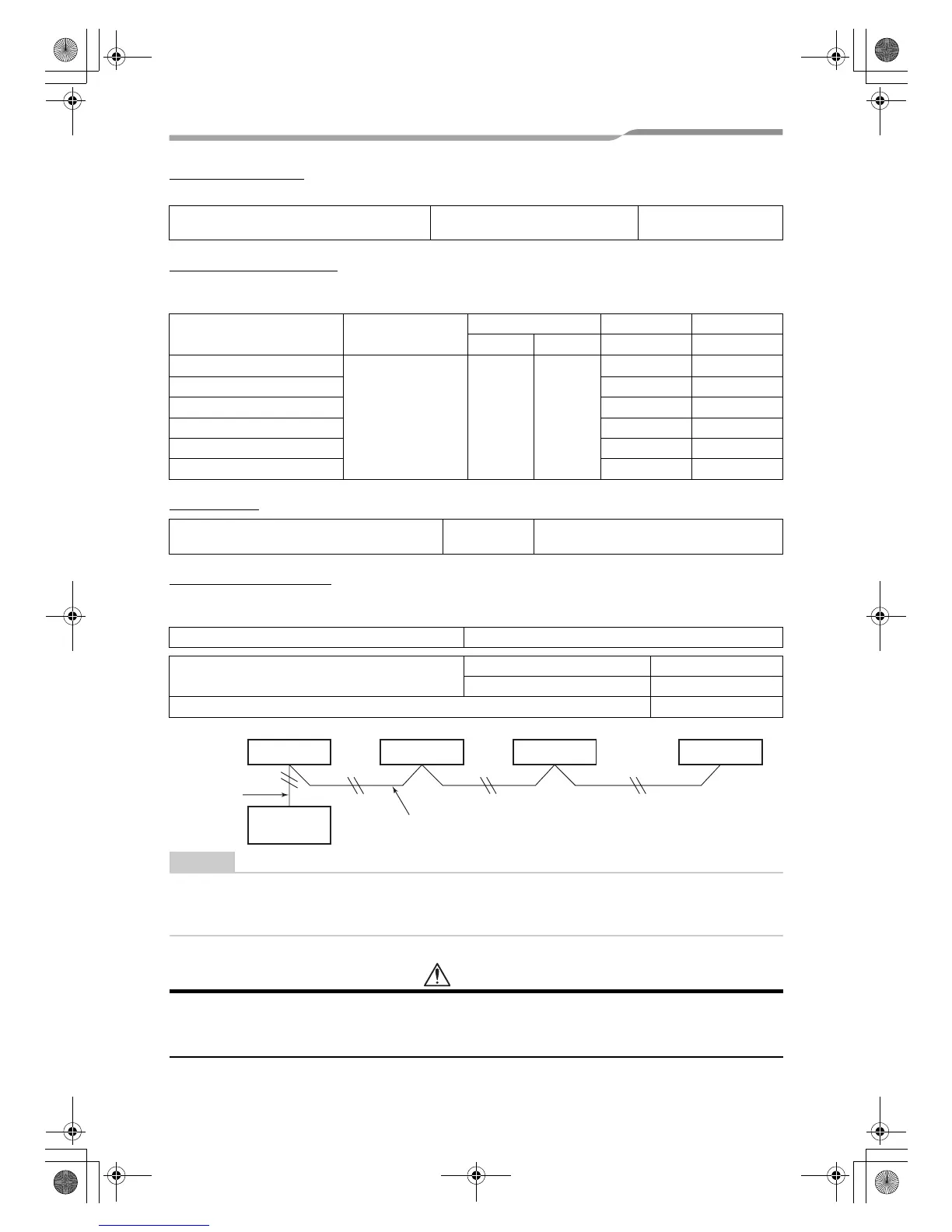

High Wall Type
Installation Manual
–17–
Power supply wire
• Recommended wire diameter and wire length for power supply wire.
Electric characteristics
Control wire
Remote control wiring
• 2-core with non-polarity wire is used for wiring of the remote control wiring and group remote controls
wiring.
NOTE
• Use copper supply wire.
• Use UL wire rated 600V for the power supply.
• Use UL wire rated 300V for the remote control wires and control wires.
CAUTION
The remote control wire (Communication line) and AC208/230V wires cannot be parallel to contact each
other and cannot be stored in the same conduits. If doing so, a trouble may be caused on the control
system due to noise or other factor.
Power supply wiring
Wire size: 2 × AWG12
Ground 1 × AWG12 or thicker
Up to 164’1” (50m)
MCA : Minimum Circuit Amps
MOCP : Maximum Overcurrent Protection (Amps)
Model Power Supply
Voltage Range (V) MCA MOCP
Min Max (A) (A)
MMK-AP0073H2UL
208/230V-1-60Hz 187 253
0.3
15
MMK-AP0093H2UL 0.3 15
MMK-AP0123H2UL 0.3 15
MMK-AP0153H2UL 0.5 15
MMK-AP0183H2UL 0.5 15
MMK-AP0243H2UL 0.5 15
Control wiring between indoor units, and outdoor
unit (2-core shielded wire)
Wire size
(Up to 3280’10” (1000m)) AWG16
(Up to 6561’8” (2000m)) AWG14
Remote control wiring, remote control inter-unit wiring Wire size: AWG20
Total wire length of remote control wiring and remote
control inter-unit wiring = L + L1 + L2 + … Ln
In case of wired type only Up to 1640’5” (500m)
In case of wireless type included Up to 1312’4” (400m)
Total wire length of remote control inter-unit wiring = L1 + L2 + … Ln Up to 656’2” (200m)
L1
L
L2 Ln
Indoor unit
Remote control inter-unit wiring
Indoor unit Indoor unit Indoor unit
Remote
control
(Max. 8 units)
Remote
control
wiring
17-EN
