10. Find suitable indoor mounting location for Equipment Control Module,
either near or on equipment. See Fig. 12.
IMPORTANT NOTE: Equipment Control Module should not be mounted to
duct work or below any other controls or equipment (i.e. humidistat,
humidifier, etc.).
A07217

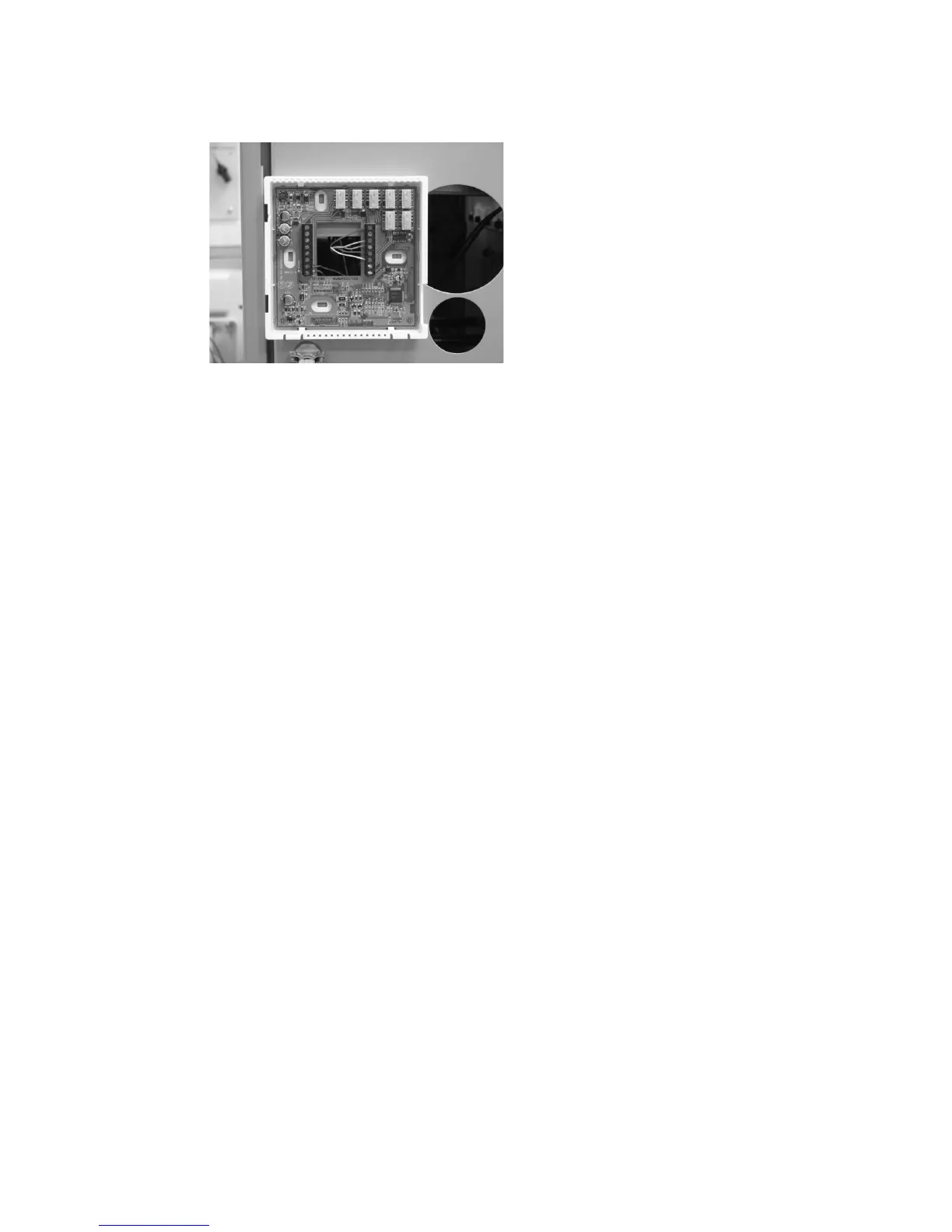

Fig. 12 -- Equipment Control Module on Equipment
11. Route wires through rear of Equipment Control Module using either a clear-
ance hole or supplied standoff. See Fig. 13.
