Carrier Performance TP-PRH-A User Manual

68
Equipment Control Module Fan Coil Air Conditioner
O
Remove J2
Jumper for
heat staging
Heat Stage 2 O/B W2 W2
Heat Stage 1 W/W1 W1
Cool Stage 1 Y1 / W2 Y1 Y1
Cool Stage 2 Y/Y2 Y/Y2 Y2
Fan G G
24VAC Hot Heating Rh R R
24VAC Hot Cooling Rc Remove J1
jumper for
Dehumidify
modes
Dry Contact 1 D1
Dry Contact 2 D2 DH
24VAC Common C C C
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com SRTN
Outdoor Sensor *
Humidifier Solenoid
Valve *
Remote Room
Sensor *
* Indicates connection may not be required/available.
A09167

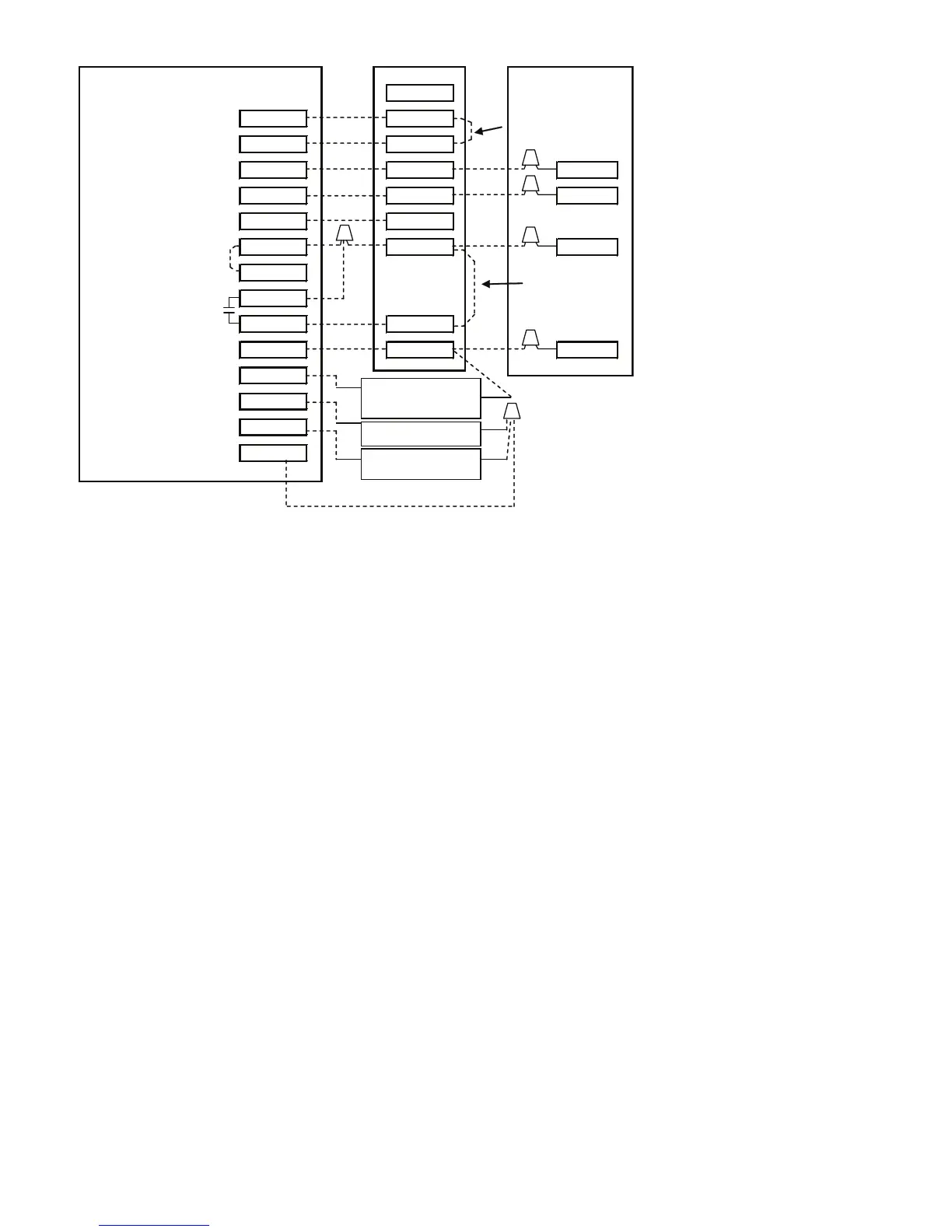

Fig. 23 -- FV/FK Fan Coil w/2--Stage Air Conditioner
