Carrier Performance TP-PRH-A - Fan Coil Shown with Aux. Connection #2

70
Equipment Control Module
Fan Coil
RVS/Heat Stage 2 O/B W2 W3
Heat Stage 1 W/W1 W2
Compressor Low Y1 / W2
Compressor High Y/Y2
Fan G G
24VAC Hot Heating Rh R
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2 Aux. Connection
24VAC Common C C
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com SRTN
Outdoor Sensor *
Humidifier Solenoid
Valve *
Remote Room
Sensor *
* Indicates connection may not be required/available.
A09169

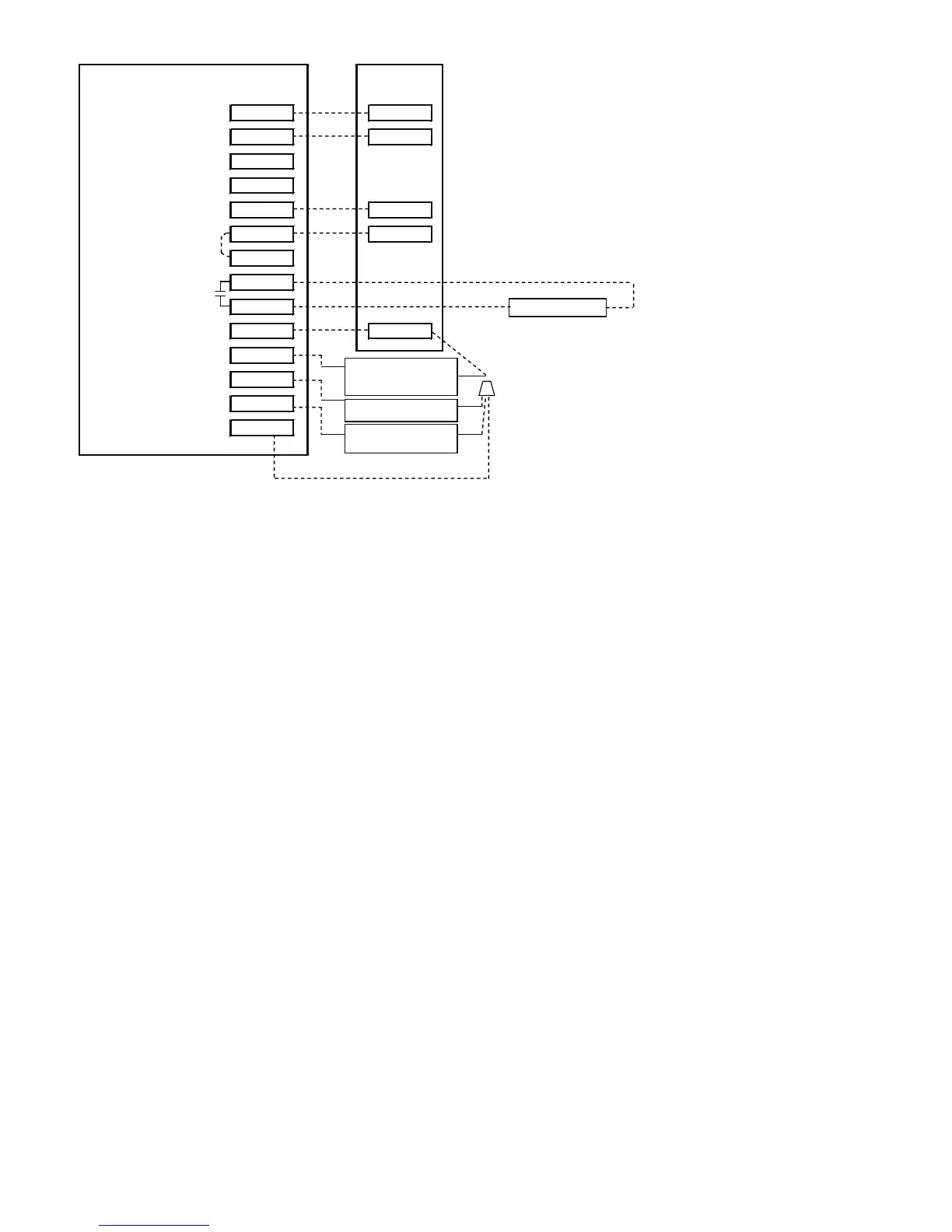

Fig. 25 -- Fan Coil Shown with Aux. Connection #2
(Heat Pump/Air Conditioner removed for clarity.)
