8
Legend
4 holes for vertical assembly (ref.
À
)
2.5.2 - Modular vertical installation (sizes 018-036)
1. Place the lower unit in the desired location.
2. Remove the lifting hooks in the top panel of the lower
unit. In order to do this it is necessary to turn them
counter-clockwise.
3. On the right- and the left-hand side of the top panel of the
lower unit, position two insulation strips of 15 mm
thickness and 10 mm height, so that the holes provided for
the lifting hooks are centred under the insulation strip.
The insulation strip absorbs the transmission of vibrations
from the higher to the lower unit. When selecting the
insulation strip the unit weight must be considered. Punch
holes into the insulation strips to align with the lifting
hooks (Fig. “Vertical installation, sizes 018-036”).
Vibration absorbers can also be installed as shown in Fig.
“Vertical installation, sizes 018-036”.
4. Place the other unit above the lower unit so that the holes
through which the U-frame of the bottom panel of each
unit is secured are aligned with the holes provided for the
lifting hooks (Fig. “Vertical installation, sizes 018-036”).
5. Fix one unit to the other with the four bolts (M12).
6. The power supply must be separate for each unit. Please
consult the wiring diagrams.
VERY IMPORTANT: Do not stack more than 2 units.
Legend
1 Nut
2 Washers
3 Vibration absorber
4 Screw
5 Insulation strip

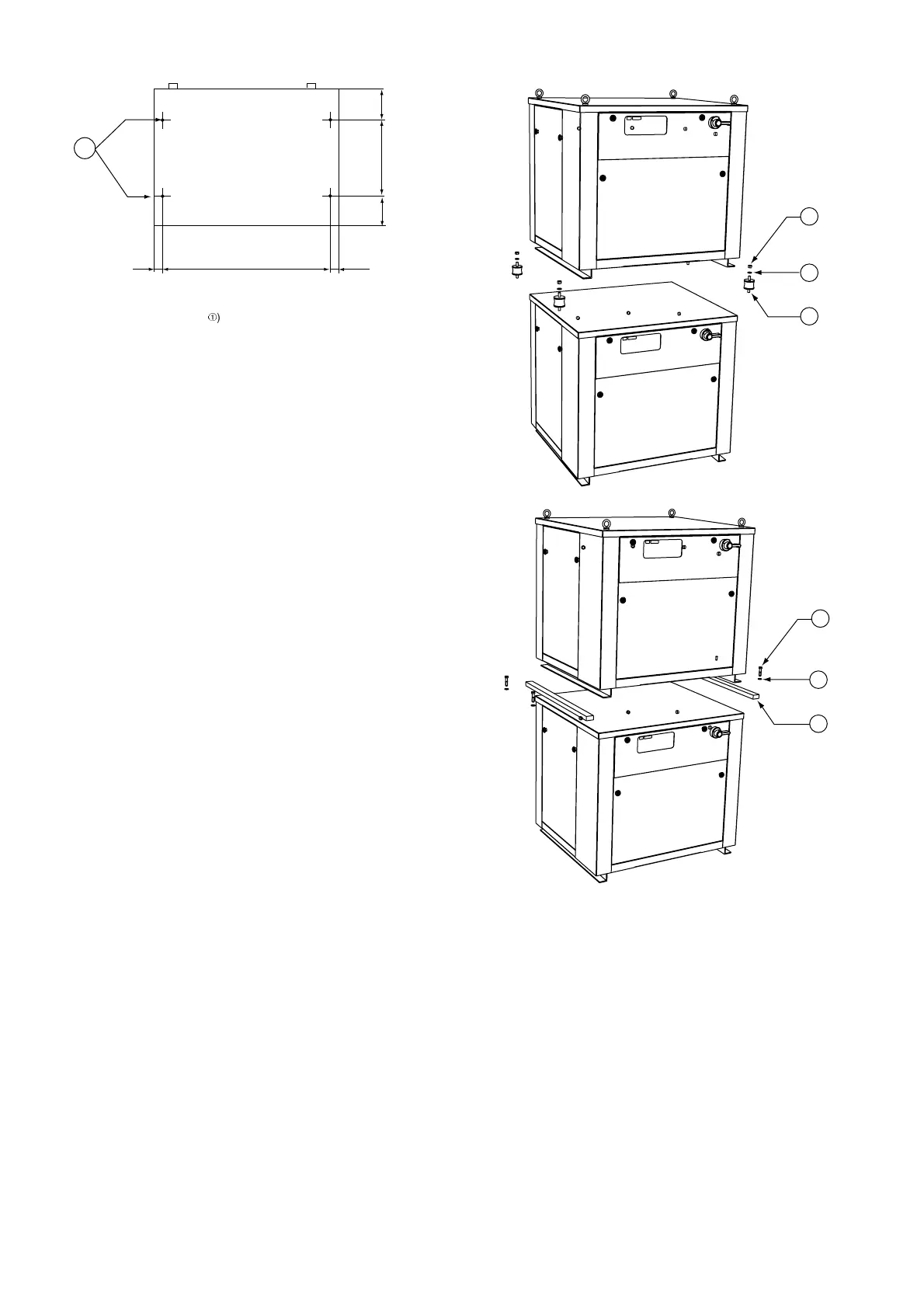

Holes in the unit top panel Vertical installation, sizes 018-036
125
125
300
30
30
690
1
1
2
3
