Zone Manager
ENGLISH

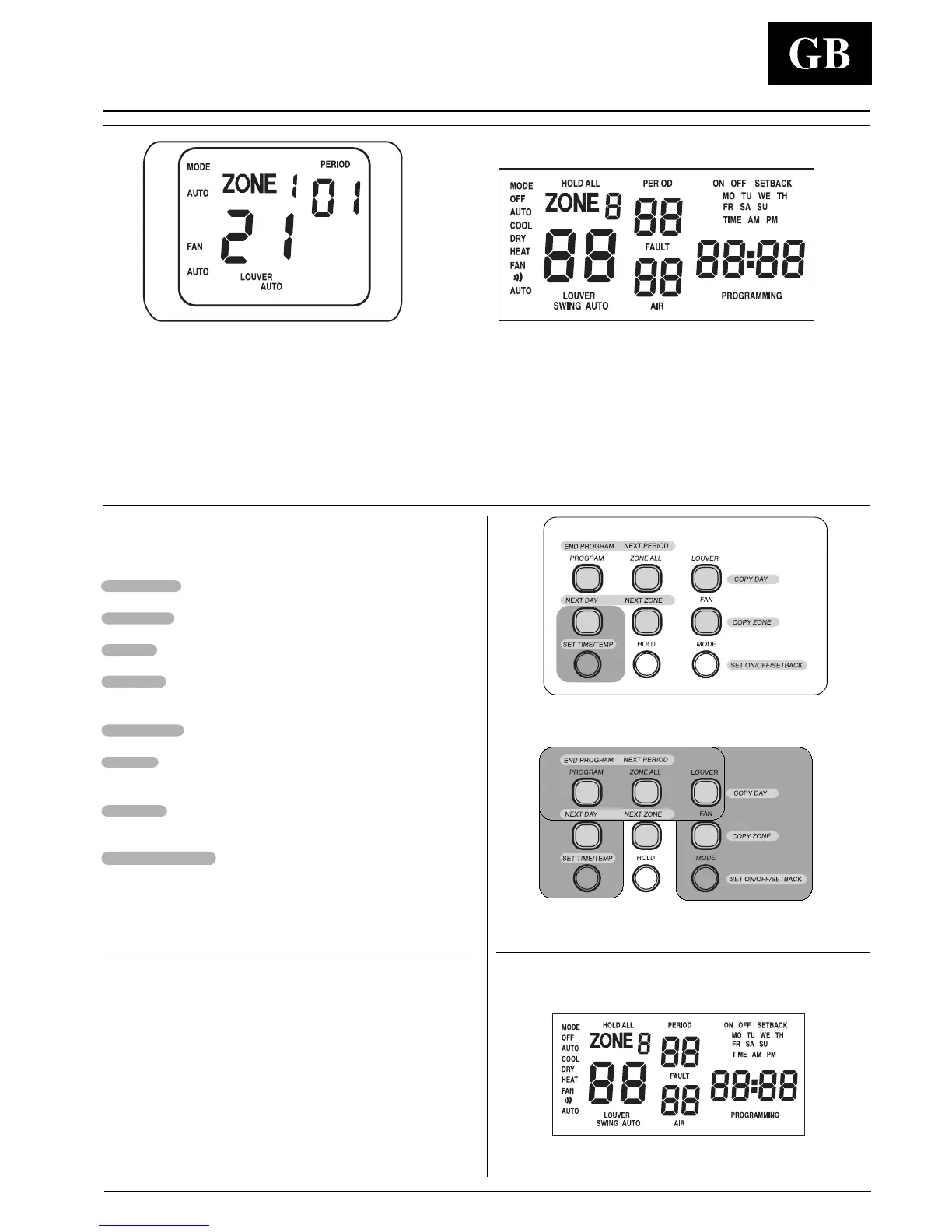

Programming buttons
Example of normal operating Control display with panel open
Key to abbreviations of the days of the week
MO = Mondey
TU = Tuesday
WE = Wednesday
TH = Thursday
FR = Friday
SA = Saturday
SU = Sunday
Characteristics and switching on
Day regulation buttons
Function buttons for programming
Press the "
PROGRAM" button to enter programming mode.
When this button is pressed the buttons described below work.
END PROGRAM
End programming button.
NEXT PERIOD
Button for passage to the next period of the selected zone.
NEXT DAY
Button for selecting the day after the one shown on the display.
NEXT ZONE
Button for passing to the zone after the one shown on the
display
SET TIME/TEMP
Time or temperature selection button for a given period.
COPY DAY
Copies the programming of the previous day onto the current
day for that zone.
COPY ZONE
Copies the programming of the previous zone onto the one
shown on the display.
SET ON/OFF/SETBACK
Button for selecting the operating mode for each period.
Switching on
When switched on the unit is illuminated with a yellow colour
and a control display appears with all the symbols of the
various functions lighted.
The illuminated display switches itself off after around 30".
To switch it on again, press once of the two "up" or "down"
buttons or any function button inside panel 1.
By opening cover 1, the display is uncovered completely to
show time and other functions.
