ZS duct sensors
ZS Sensors Carrier Proprietary and Confidential CARRIER CORPORATION ©2017
Installation Guide All rights reserved
18
To address a ZS duct sensor
Each ZS Sensor on an Rnet must have a unique address, but addresses do not have to be sequential.

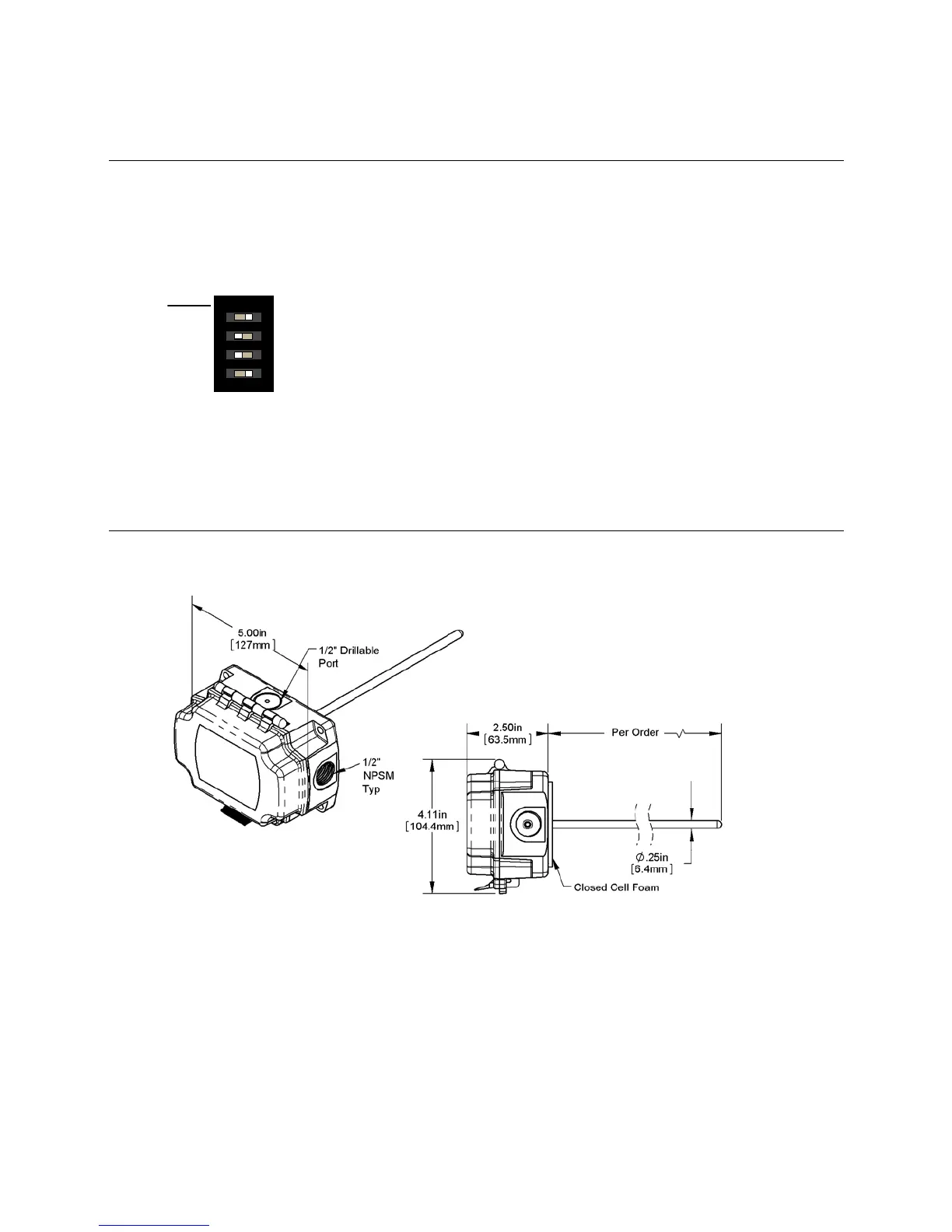

Open the hinged cover on the sensor enclosure, and then use the DIP switches to set an address from 0 to 14. (1
is factory default.) Each DIP switch has the value shown in the figure below. Turn on as many DIP switches as you
need so that their total value equals the address.
DIP
S
witch
value
1
ON
2
4
8
1 2 3 4
DIP switches 1 and 4 above
are on. Their values (1 + 8) total 9, so
the sensor's address is 9.
To mount a ZS duct temperature or temperature/humidity sensor
