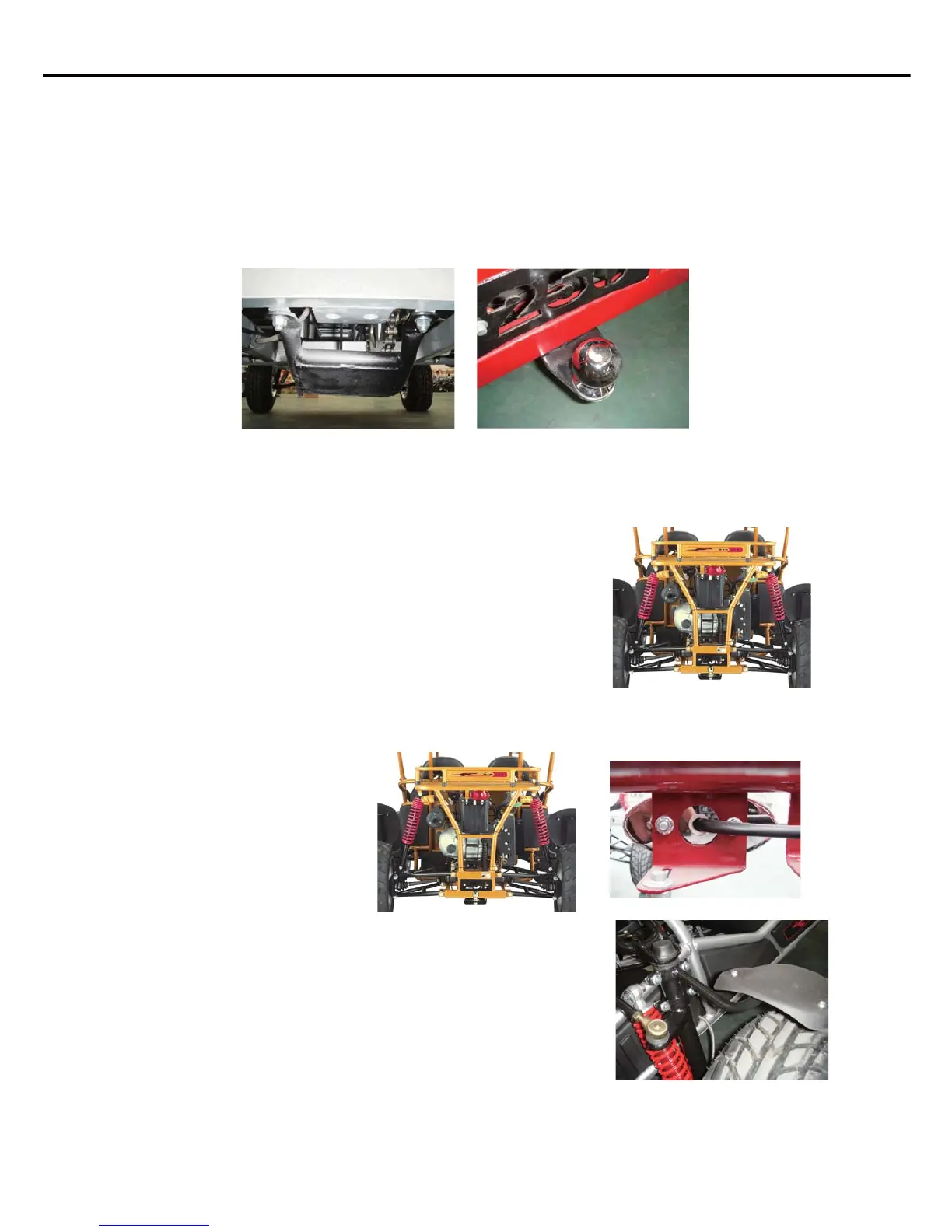

16. STUMP GUARD AND TRAILER HITCH
a. Place the stump guard under the rear suspension box/ under the rear sprocket.
b. Align the 4 holes of the stump guard with the holes on the frame.
c. Be sure all bolts are in place then tighten with 10mm and 12mm wrench.
d. Place trailer hitch plate under trailer hitch mount. Align the 2 bolt holes, insert the 2 large
bolts and washers and tighten with a 19mm and 21 mm wrench.
e. Tighten ball with 24mm or adjustable wrench.
17. CARGO RACK
a. Place a black rubber end cap on each mounting post of the cargo rack. There will be 6 in
all. The black rubber end caps are in the hardware box. Also remove 6 black anodized
bolts and washers.
b. Hold the top section of the rack about 1 off the rear
frame and start the rear bolts. Go ahead and tighten
these rear bolts most of the way. This will prevent the
heads of the bolts from scratching the frame.
c. Insert the remaining bolts and washers and tighten with
a 10mm wrench. Be sure all bolts are started before
tightening.
18. TAIL LIGHT
a. Insert the mounting bolts of the tail light into the tail light
bracket located under the cargo rack.
b. Tighten with a 10mm
wrench. Be sure not to
over tighten.
19. FRONT FENDERS
a. Place the fender brackets over each strut above
the steering arm.
b. Start each bolt first then tighten with a 10mm
and 12mm wrench.
49
SET-UP INSTRUCTIONS
INTERCEPTOR GTR 250
