CARVIN R600 Red Line Series User Manual

FOR THE NEW OWNER ......................................................................... i
RECEIVING INSPECTION ......................................................................... i
TABLE OF CONTENTS ................................................................................ 1
QUICK SET UP ....................................................................................... 1
FRONT PANEL FEATURES ............................................................................ 3
RED LINE DETAILS ..................................................................................... 5
REAR PANEL FEATURES ............................................................................. 9
R600 BI-AMP HOOK UP ............................................................................ 11
RSP BI-AMP HOOK UP .............................................................................. 12
EFFECTS HOOK UP ..................................................................................... 13
STEREO HOOK UP ..................................................................................... 14
AMP PATCH HOOK UP .............................................................................. 14
POWER AMP PROTECTION ....................................................................... 15
RED LINE TECHNICAL SPECIFICATIONS ..................................................... 15
RED LINE MAINTENANCE ........................................................................... 16
RED LINE PARTS LIST ................................................................................ 16
CIRCUIT CARD SUB ASSEMBLIES ............................................................... 17
WARRANTY INFORMATION ...................................................................... 20
TABLE OF CONTENTS
QUICK SET UP
If you are like most new owners , you’re probably in a hurry to check out your new amp.
Before you plug in at least look at this section, to avoid injury to yourself or damage to
your amp or speakers.
CONNECTING AC POWER
Use only a grounded (3 prong) power outlet to avoid shock hazard.
CONNECTING SPEAKERS

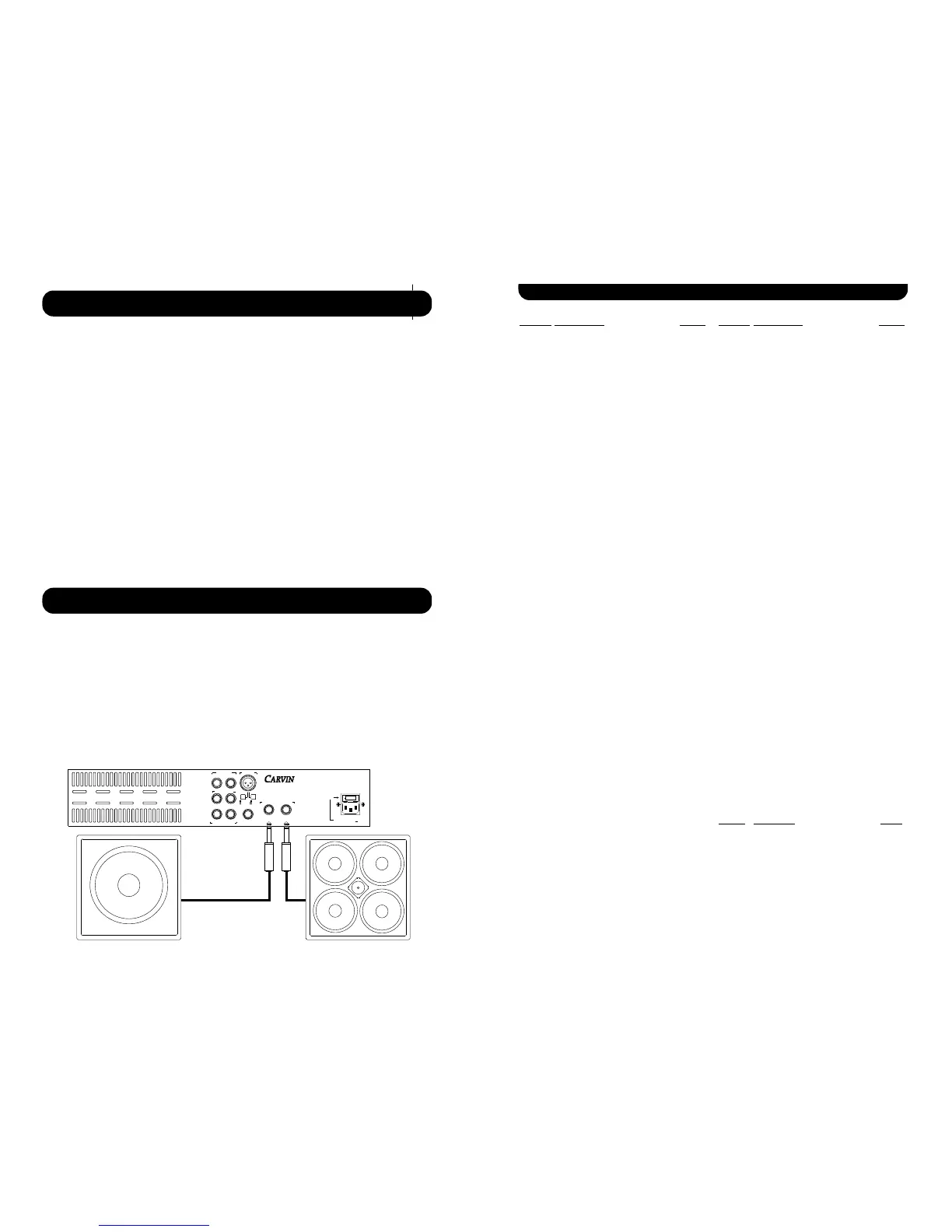

BI-AMP MODE:
To operate in bi-amp mode, connect a low frequency speaker cabinet to the AMP 1 (LOW
F R E Q ) jack, and a high frequency speaker cabinet to the AMP 2 (HIGH FREQ) j a c k .
SND
EFF LOOP
FS-22
FOOT SW
RTN
STEREO RETURN
PRE-AMP OUT
1-800-854-2235
MADE
AUS
IN THE
LOW FREQ HI FREQ
PRE AMP
LINE
DIR
GND
LIFT
SPEAKER OUTPUTS
AMP 2
(HIGH FREQ)
AMP 1
(LOW FREQ)
WARNING –– To prevent a fire hazard, provide adequate space for ventilation! WARNING –– To prevent fire or
shock, do not expose to rain or moisture. WARNING –– Do not remove cover. No user-serviceable parts inside.
CAUTION: TO PREVENT SHOCK, DO
NOT DEFEAT THE SAFETY GROUND.
SPARE
FUSE
FUSE 6A
SLOW BLOW
575VA
120V 60Hz
FUSE
HIGH FREQUENCY CABINETLOW FREQUENCY CABINET
1
80-40624 Red Line Master PCB
PCB REF DESCRIPTION PART #
QC208 Quick Connect, .250, Vert . . . . . . . . . . . . . . . .06-40050
QC209 Quick Connect, .250, Vert . . . . . . . . . . . . . . . .06-40050
QC210 Quick Connect, .250, Vert . . . . . . . . . . . . . . . .06-40050
R1 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R2 Resistor 1/4W, ±5%, 1M . . . . . . . . . . . . . . . . . .50-10065
R3 Resistor 1/4W, ±5%, 100K . . . . . . . . . . . . . . . .50-10055
R4 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R5 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R6 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R7 Resistor 1/4W, ±5%, 180K . . . . . . . . . . . . . . . .50-18055
R8 Resistor 1/4W, ±5%, 47K . . . . . . . . . . . . . . . . .50-47045
R9 Resistor 1/4W, ±5%, 3.3K . . . . . . . . . . . . . . . .51-33045
R10 Resistor 1/4W, ±5%, 470W . . . . . . . . . . . . . . . .50-47025
R11 Resistor 1/4W, ±5%, 22K . . . . . . . . . . . . . . . . .50-22045
R12 Resistor 1/4W, ±5%, 560W . . . . . . . . . . . . . . . .50-56025
R13 Resistor 1/4W, ±5%, 100K . . . . . . . . . . . . . . . .50-10055
R14 Resistor 1/4W, ±5%, 2.2M . . . . . . . . . . . . . . . .50-22065
R15 Resistor 1/4W, ±5%, 220W . . . . . . . . . . . . . . . .50-22025
R16 Resistor 1/4W, ±5%, 220K . . . . . . . . . . . . . . . .50-22055
R17 Resistor 1/4W, ±5%, 33K . . . . . . . . . . . . . . . . .50-33045
R18 Resistor 1/4W, ±5%, 56K . . . . . . . . . . . . . . . . .50-56045
R19 Resistor 1/4W, ±5%, 56K . . . . . . . . . . . . . . . . .50-56045
R20 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R21 Resistor 1/4W, ±5%, 47K . . . . . . . . . . . . . . . . .50-47045
R22 Resistor 1/4W, ±5%, 47K . . . . . . . . . . . . . . . . .50-47045
R23 Resistor 1/4W, ±5%, 100K . . . . . . . . . . . . . . . .50-10055
R24 Resistor 1/4W, ±5%, 47K . . . . . . . . . . . . . . . . .50-47045
R25 Resistor 1/4W, ±5%, 220K . . . . . . . . . . . . . . . .50-22055
R26 Resistor 1/4W, ±5%, 39K . . . . . . . . . . . . . . . . .50-39045
R27 Resistor 1/4W, ±5%, 47W . . . . . . . . . . . . . . . . .50-47015
R28 Resistor 1/4W, ±5%, 150W . . . . . . . . . . . . . . . .50-15025
R29 Resistor 1/4W, ±5%, 150W . . . . . . . . . . . . . . . .50-15025
R30 Resistor 1/4W, ±5%, 560W . . . . . . . . . . . . . . . .50-56025
R31 Resistor 1/4W, ±5%, 1M . . . . . . . . . . . . . . . . . .50-10065
R32 Resistor 1/4W, ±5%, 2.7K . . . . . . . . . . . . . . . .50-27035
R34 Resistor 1/4W, ±5%, 2.2K . . . . . . . . . . . . . . . .50-22035
R35 Resistor 1/4W, ±5%, 56K . . . . . . . . . . . . . . . . .50-56045
R36 Resistor 1/4W, ±5%, 4.7K . . . . . . . . . . . . . . . .50-47035
R37 Resistor 1/4W, ±5%, 1K . . . . . . . . . . . . . . . . . .50-10035
R38 Resistor 1/4W, ±5%, 1K . . . . . . . . . . . . . . . . . .50-10035
R39 Resistor 1/4W, ±5%, 56K . . . . . . . . . . . . . . . . .50-56045
R40 Resistor 1/4W, ±5%, 39K . . . . . . . . . . . . . . . . .50-39045
R41 Resistor 1/4W, ±5%, 3.3K . . . . . . . . . . . . . . . .51-33045
R42 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R43 Resistor 1/4W, ±5%, 5.6K . . . . . . . . . . . . . . . .50-56035
R44 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R45 Resistor 1/4W, ±5%, 1M . . . . . . . . . . . . . . . . . .50-10065
R46 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R47 Resistor 1/4W, ±5%, 47K . . . . . . . . . . . . . . . . .50-47045
R48 Resistor 1/4W, ±5%, 3.3K . . . . . . . . . . . . . . . .51-33045
R49 Resistor 1/4W, ±5%, 12K . . . . . . . . . . . . . . . . .50-12045
R50 Resistor 1/4W, ±5%, 3.3K . . . . . . . . . . . . . . . .51-33045
R51 Resistor 1/4W, ±5%, 15K . . . . . . . . . . . . . . . . .50-15045
R52 Resistor 1/4W, ±5%, 47K . . . . . . . . . . . . . . . . .50-47045
R53 Resistor 1/4W, ±5%, 15K . . . . . . . . . . . . . . . . .50-15045
R54 Resistor 1/4W, ±5%, 15K . . . . . . . . . . . . . . . . .50-15045
R55 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R56 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R57 Resistor 1/4W, ±5%, 2.2K . . . . . . . . . . . . . . . .50-22035
R58 Resistor 1/4W, ±5%, 2.2K . . . . . . . . . . . . . . . .50-22035
R59 Resistor 1/4W, ±5%, 100W . . . . . . . . . . . . . . . .50-10025
R60 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R61 Resistor 1/4W, ±5%, 33K . . . . . . . . . . . . . . . . .50-33045
R62 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R63 Resistor 1/4W, ±5%, 33K . . . . . . . . . . . . . . . . .50-33045
R64 Resistor 1/4W, ±5%, 1M . . . . . . . . . . . . . . . . . .50-10065
R65 Resistor 1/4W, ±5%, 1M . . . . . . . . . . . . . . . . . .50-10065
R66 Resistor 1/4W, ±5%, 15K . . . . . . . . . . . . . . . . .50-15045
R67 Resistor 1/4W, ±5%, 33K . . . . . . . . . . . . . . . . .50-33045
R68 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R69 Resistor 1/4W, ±5%, 2.4K . . . . . . . . . . . . . . . .50-24035
R70 Resistor 1/4W, ±5%, 220K . . . . . . . . . . . . . . . .50-22055
R71 Resistor 1/4W, ±5%, 1.8K . . . . . . . . . . . . . . . .50-18035
R72 Resistor 1/4W, ±5%, 220K . . . . . . . . . . . . . . . .50-22055
R73 Resistor 1/4W, ±5%, 1.8K . . . . . . . . . . . . . . . .50-18035
R74 Resistor 1/4W, ±5%, 300K . . . . . . . . . . . . . . . .50-30055
R75 Resistor 1/4W, ±5%, 2K . . . . . . . . . . . . . . . . . .50-20035
R76 Resistor 1/4W, ±5%, 220K . . . . . . . . . . . . . . . .50-22055
R77 Resistor 1/4W, ±5%, 2.4K . . . . . . . . . . . . . . . .50-24035
R78 Resistor 1/4W, ±5%, 220K . . . . . . . . . . . . . . . .50-22055
R79 Resistor 1/4W, ±5%, 2K . . . . . . . . . . . . . . . . . .50-20035
R80 Resistor 1/4W, ±5%, 360K . . . . . . . . . . . . . . . .50-36055
R81 Resistor 1/4W, ±5%, 2.2K . . . . . . . . . . . . . . . .50-22035
R82 Resistor 1/4W, ±5%, 360K . . . . . . . . . . . . . . . .50-36055
R83 Resistor 1/4W, ±5%, 2.2K . . . . . . . . . . . . . . . .50-22035
R84 Resistor 1/4W, ±5%, 220K . . . . . . . . . . . . . . . .50-22055
R85 Resistor 1/4W, ±5%, 2.2K . . . . . . . . . . . . . . . .50-22035
R86 Resistor 1/4W, ±5%, 150K . . . . . . . . . . . . . . . .50-15055
R87 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R88 Resistor 1/4W, ±5%, 22K . . . . . . . . . . . . . . . . .50-22045
R89 Resistor 1/4W, ±5%, 39K . . . . . . . . . . . . . . . . .50-39045
R90 Resistor 1/4W, ±5%, 1M . . . . . . . . . . . . . . . . . .50-10065
R91 Resistor 1/4W, ±5%, 1M . . . . . . . . . . . . . . . . . .50-10065
R92 Resistor 1/4W, ±5%, 39K . . . . . . . . . . . . . . . . .50-39045
R93 Resistor 1/4W, ±5%, 22K . . . . . . . . . . . . . . . . .50-22045
R94 Resistor 1/4W, ±5%, 47W . . . . . . . . . . . . . . . . .50-47015
R95 Resistor 1/4W, ±5%, 220W . . . . . . . . . . . . . . . .50-22025
R96 Resistor 1/4W, ±5%, 1K . . . . . . . . . . . . . . . . . .50-10035
R97 Resistor 1/4W, ±5%, 100W . . . . . . . . . . . . . . . .50-10025
R98 Resistor 1/4W, ±5%, 150K . . . . . . . . . . . . . . . .50-15055
R99 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R100 Resistor 1/4W, ±5%, 47K . . . . . . . . . . . . . . . . .50-47045
R101 Resistor 1/4W, ±5%, 47K . . . . . . . . . . . . . . . . .50-47045
80-40624 Red Line Master
PCB REF DESCRIPTION PART #
R102 Resistor 1/4W, ±5%, 47K . . . . . . . . . . . . . . . . .50-47045
R103 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R104 Resistor 1/4W, ±5%, 1K . . . . . . . . . . . . . . . . . .50-10035
R105 Resistor 1/4W, ±5%, 560W . . . . . . . . . . . . . . . .50-56025
R106 Resistor 1/4W, ±5%, 47K . . . . . . . . . . . . . . . . .50-47045
R107 Resistor 1/4W, ±5%, 0W . . . . . . . . . . . . . . . . . .50-00035
R108 Resistor 1/4W, ±5%, 18K . . . . . . . . . . . . . . . . .50-18045
R109 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R110 Resistor 1/4W, ±5%, 4.7K . . . . . . . . . . . . . . . .50-47035
R111 Resistor 1/4W, ±5%, 4.7K . . . . . . . . . . . . . . . .50-47035
R112 Resistor 1/4W, ±5%, 18K . . . . . . . . . . . . . . . . .50-18045
R113 Resistor 1/4W, ±5%, 18K . . . . . . . . . . . . . . . . .50-18045
R114 Resistor 1/4W, ±5%, 27K . . . . . . . . . . . . . . . . .50-27045
R115 Resistor 1/4W, ±5%, 18K . . . . . . . . . . . . . . . . .50-18045
R116 Resistor 1/4W, ±5%, 10W . . . . . . . . . . . . . . . . .50-10015
R117 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R118 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R119 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R120 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R124 Resistor 1/4W, ±5%, 100W . . . . . . . . . . . . . . . .50-10025
R125 Resistor 1/4W, ±5%, 100W . . . . . . . . . . . . . . . .50-10025
R126 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R130 Resistor 1/4W, ±5%, 0W . . . . . . . . . . . . . . . . . .50-00035
R131 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R132 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R133 Resistor 1/4W, ±5%, 1K . . . . . . . . . . . . . . . . . .50-10035
R134 Resistor 1/4W, ±5%, 1K . . . . . . . . . . . . . . . . . .50-10035
R135 Resistor 1/4W, ±5%, 10W . . . . . . . . . . . . . . . . .50-10015
R136 Resistor 1/4W, ±5%, 100W . . . . . . . . . . . . . . . .50-10025
R137 Resistor 1/4W, ±5%, 10W . . . . . . . . . . . . . . . . .50-10015
R139 Resistor 1/4W, ±5%, 10W . . . . . . . . . . . . . . . . .50-10015
R140 Resistor 1/4W, ±5%, 1K . . . . . . . . . . . . . . . . . .50-10035
R144 Resistor 1/4W, ±5%, 22K . . . . . . . . . . . . . . . . .50-22045
R146 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R154 Resistor 1/4W, ±5%, 47K . . . . . . . . . . . . . . . . .50-47045
R155 Resistor 1/4W, ±5%, 10K . . . . . . . . . . . . . . . . .50-10045
R200 Resistor 1/4W, ±5%, 0.56W . . . . . . . . . . . . . . .50-05605
R201 Resistor 1/4W, ±5%, 0.56W . . . . . . . . . . . . . . .50-05605
R202 Resistor 1/4W, ±5%, 47K . . . . . . . . . . . . . . . . .50-47045
R203 Resistor 1/4W, ±5%, 22K . . . . . . . . . . . . . . . . .50-22045
R204 Resistor 1/4W, ±5%, 1K . . . . . . . . . . . . . . . . . .50-10035
R205 Resistor, 2W, 150W . . . . . . . . . . . . . . . . . . . . .54-15025
R207 Resistor, 10W, 100W . . . . . . . . . . . . . . . . . . . .56-10020
R208 Resistor 1/4W, ±5%, 47K . . . . . . . . . . . . . . . . .50-47045
R211 Resistor 1/4W, ±5%, 470K . . . . . . . . . . . . . . . .50-47055
R212 Resistor 1/4W, ±5%, 1M . . . . . . . . . . . . . . . . . .50-10065
R213 Resistor 1/4W, ±5%, 33K . . . . . . . . . . . . . . . . .50-33045
R214 Resistor 1/4W, ±5%, 47K . . . . . . . . . . . . . . . . .50-47045
R215 Resistor 1/4W, ±5%, 470K . . . . . . . . . . . . . . . .50-47055
R216 Resistor 1/4W, ±5%, 1M . . . . . . . . . . . . . . . . . .50-10065
R217 Resistor 1/4W, ±5%, 47K . . . . . . . . . . . . . . . . .50-47045
R218 Resistor 1/4W, ±5%, 5.6K . . . . . . . . . . . . . . . .50-56035
R301 Resistor 1/4W, ±5%, 100W . . . . . . . . . . . . . . . .50-10025
R302 Resistor 1/4W, ±5%, 100W . . . . . . . . . . . . . . . .50-10025
R303 Resistor 1/4W, ±5%, 2.2K . . . . . . . . . . . . . . . .50-22035
R304 Resistor 1/4W, ±5%, 100W . . . . . . . . . . . . . . . .50-10025
R305 Resistor 1/4W, ±5%, 100K . . . . . . . . . . . . . . . .50-10055
R306 Resistor 1/4W, ±5%, 100W . . . . . . . . . . . . . . . .50-10025
R307 Resistor 1/4W, ±5%, 680W . . . . . . . . . . . . . . . .50-68025
R308 Resistor 1/4W, ±5%, 680W . . . . . . . . . . . . . . . .50-68025
R309 Resistor 1/4W, ±5%, 2.2K . . . . . . . . . . . . . . . .50-22035
R310 Resistor, 5W, ±5%, 15W . . . . . . . . . . . . . . . . . .55-15005
R311 Resistor, 5W, ±5%, 22W . . . . . . . . . . . . . . . . . .55-22026
R312 Resistor, 5W, ±5%, 15W . . . . . . . . . . . . . . . . . .55-15005
R313 Resistor, 5W, ±5%, 22W . . . . . . . . . . . . . . . . . .55-22026
S1 Switch, DPDT, Push . . . . . . . . . . . . . . . . . . . . .25-02201
S2 Switch, DPDT, Push . . . . . . . . . . . . . . . . . . . . .25-02201
S3 Switch, DPDT, Push . . . . . . . . . . . . . . . . . . . . .25-02201
S4 Switch, DPDT, Push . . . . . . . . . . . . . . . . . . . . .25-02201
S5 Switch, DPDT, Push . . . . . . . . . . . . . . . . . . . . .25-02201
S6 Switch, DPDT, Push . . . . . . . . . . . . . . . . . . . . .25-02201
S7 Switch, DPDT, Push . . . . . . . . . . . . . . . . . . . . .25-02201
U1 IC, Dynamic Range Processor . . . . . . . . . . . . .60-21200
U2 IC, MC14049 Hex Inv . . . . . . . . . . . . . . . . . . . .60-40490
V1 Socket, Tube, 9 pin . . . . . . . . . . . . . . . . . . . . . .23-91632
VR201 Regulator, Voltage, +15, 2A . . . . . . . . . . . . . . .60-78150
VR202 Regulator, Voltage, -15, 2A . . . . . . . . . . . . . . .60-79150
80-40628 R600 Driver & Output
PCB REF DESCRIPTION PART #
A7 5532 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-55320
A8 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A9 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A10 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A11 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A12 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
BIAS ADJ Header, 4 Pin, .100, Straight . . . . . . . . . . . . . .23-10004
C18 Capacitor, Electrolytic, 470µF, 25V . . . . . . . . .47-47125
C19 Capacitor, Electrolytic, 470µF, 25V . . . . . . . . .47-47125
C22 Capacitor, Electrolytic 47µF, 63V . . . . . . . . . . .47-47061
C100 Capacitor, Electrolytic, 470µF, 25V . . . . . . . . .47-47125
C101 Capacitor, Electrolytic, 470µF, 25V . . . . . . . . .47-47125
C125 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C126 Capacitor, Ceramic, 56pF . . . . . . . . . . . . . . . . .45-56052
C127 Capacitor, Ceramic, 27pF . . . . . . . . . . . . . . . . .45-27052
C129 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C131 Capacitor, Ceramic, 120pF . . . . . . . . . . . . . . . .45-12152
CIRCUIT CARD SUB ASSEMBLIES
18

CARVIN R600 Red Line Series Specifications

General

Brand	CARVIN
Model	R600 Red Line Series
Category	Amplifier
Language	English
