CARVIN R600 Red Line Series User Manual

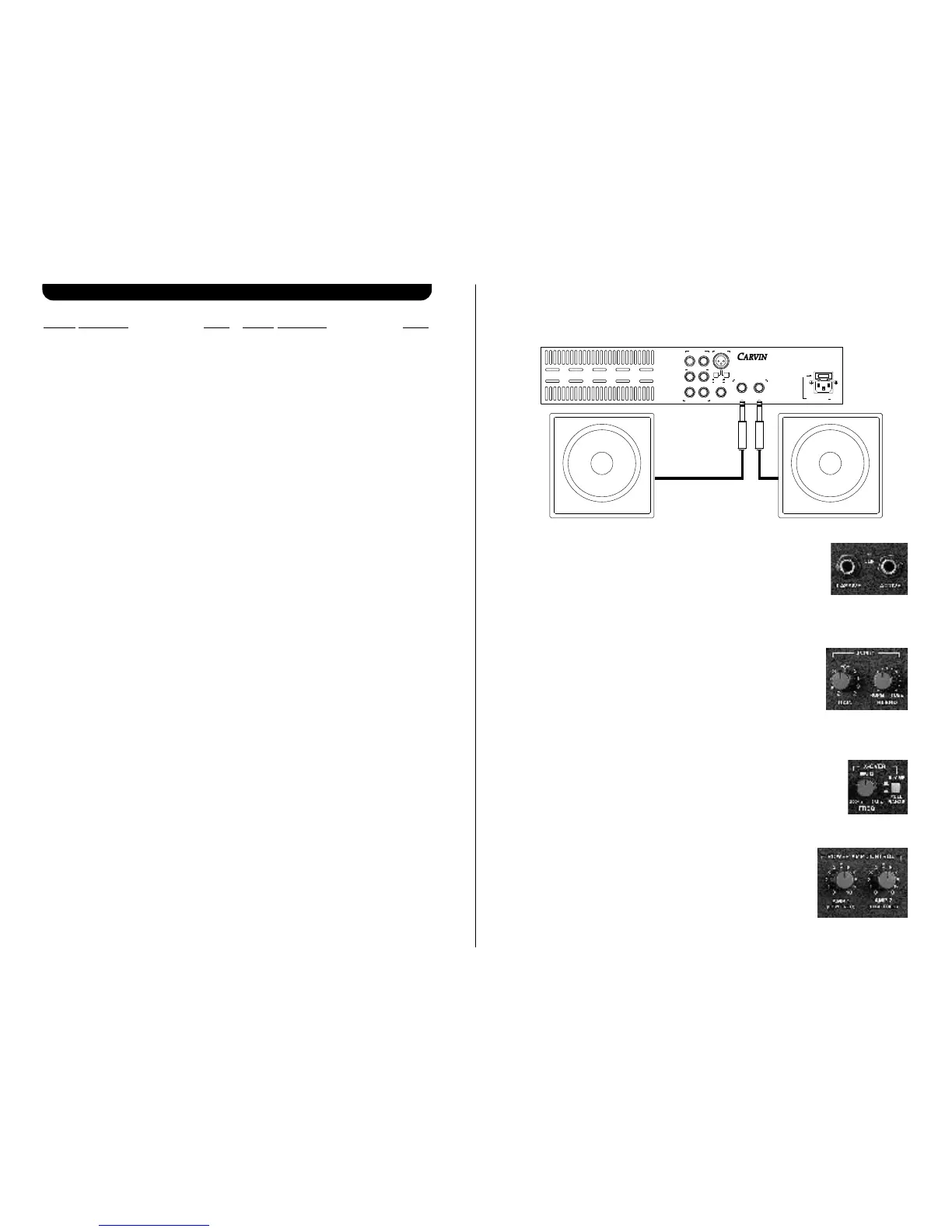

FULL RANGE MODE:
If only one speaker is being used (or multiple full range speakers) connect it to the AMP 1
or the AMP 2 phone jacks. The internal crossover should be set to the FULL RANGE
mode, since it will not be used in this application.
INPUT CONNECTIONS:
Inputs are provided for both passive and active basses.
Instruments with internal pre-amps should be connected
to the A C T I V E input jack. Connect your instrument to the
input of the amplifier with a high quality shielded guitar
c a b l e .
SETTING GAIN:
T h e G A I N knob should be adjusted so that the C L I P i n d i -
cator LED rarely flashes when playing. It is ok for the
C L I P LED to occasionally softly illuminate with the
dynamics of your playing. But if the LED gets bright or
stays on while you are playing, reduce the G A I N s e t t i n g .
T h e B L E N D control sets the mix of the hybrid tube pre-
a m p .
SETTING THE CROSSOVER FREQUENCY:
When operating the amp in a bi-amp configuration the B I -
AMP / FULL R A N G E selector switch must be set to the out
position to engage the internal crossover. The crossover fre-
quency can now be set by rotating the F R E Q adjust knob.
SETTING THE POWER AMP LEVELS:
The individual P O W E R A M P C O N T R O L knobs set the
output level of the internal stereo power amps. When
bi-amping these controls are used to balance the vol-
ume levels of the low frequency and high frequency
speaker cabinets. The POWER AMP CONTROL k n o b s
should be used to set the relative levels of the two
power amps. For overall volume changes use the V O L U M E k n o b .
SND
EFF LOOP
FS-22
FOOT SW
RTN
STEREO RETURN
PRE-AMP OUT
1-800-854-2235
MADE
AUS
IN THE
LOW FREQ HI FREQ
PRE AMP
LINE
DIR
GND
LIFT
SPEAKER OUTPUTS
AMP 2
(HIGH FREQ)
AMP 1
(LOW FREQ)
WARNING –– To prevent a fire hazard, provide adequate space for ventilation! WARNING –– To prevent fire or
shock, do not expose to rain or moisture. WARNING –– Do not remove cover. No user-serviceable parts inside.
CAUTION: TO PREVENT SHOCK, DO
NOT DEFEAT THE SAFETY GROUND.
SPARE
FUSE
FUSE 6A
SLOW BLOW
575VA
120V 60Hz
FUSE
17
80-40624 Red Line Master PCB
PCB REF DESCRIPTION PART #
A1 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A2 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A3 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A4 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A5 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A6 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A7 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A8 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A9 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A10 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A11 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A12 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A13 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A14 5532 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-55320
C1 Capacitor, Poly 0.0068µF 100V . . . . . . . . . . . .46-68212
C2 Capacitor, Ceramic, 120pF . . . . . . . . . . . . . . . .45-12152
C3 Capacitor, Ceramic, 120pF . . . . . . . . . . . . . . . .45-12152
C4 Capacitor, Mylar, 0.22µF . . . . . . . . . . . . . . . . .46-22412
C5 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C6 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C7 Capacitor, Ceramic, 39pF . . . . . . . . . . . . . . . . .45-39052
C8 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C9 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C10 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C11 Capacitor, Ceramic, 680pF . . . . . . . . . . . . . . . .45-68152
C13 Capacitor, Ceramic, 39pF . . . . . . . . . . . . . . . . .45-39052
C14 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C15 Capacitor, Poly 0.0022µF 100V . . . . . . . . . . . .46-22212
C16 Capacitor, Tant, 10µF, 6.3V . . . . . . . . . . . . . . .48-10060
C17 Capacitor, Tant, 10µF, 6.3V . . . . . . . . . . . . . . .48-10060
C18 Capacitor, Ceramic, 39pF . . . . . . . . . . . . . . . . .45-39052
C19 Capacitor, Poly 0.033µF 100V . . . . . . . . . . . . .46-33312
C20 Capacitor, Mylar, 0.22µF . . . . . . . . . . . . . . . . .46-22412
C21 Capacitor, Poly, .001µF, 100V . . . . . . . . . . . . .46-10212
C22 Capacitor, Ceramic, 560pF . . . . . . . . . . . . . . . .45-56152
C23 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C24 Capacitor, Poly 0.0022µF 100V . . . . . . . . . . . .46-22212
C25 Capacitor, Poly 0.022µF 100V . . . . . . . . . . . . .46-22312
C26 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C27 Capacitor, Ceramic, 39pF . . . . . . . . . . . . . . . . .45-39052
C28 Capacitor, Poly 0.022µF 100V . . . . . . . . . . . . .46-22312
C29 Capacitor, Poly 0.022µF 100V . . . . . . . . . . . . .46-22312
C30 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C31 Capacitor, Mylar, 0.22µF . . . . . . . . . . . . . . . . .46-22412
C33 Capacitor, Poly 0.01µF 100V . . . . . . . . . . . . . .46-10312
C34 Capacitor, Poly 0.01µF 100V . . . . . . . . . . . . . .46-10312
C35 Capacitor, Poly 0.047µF 100V . . . . . . . . . . . . .46-47312
C36 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C37 Capacitor, Tant, 1µF, 35V . . . . . . . . . . . . . . . .48-01031
C38 Capacitor, Poly 0.022µF 100V . . . . . . . . . . . . .46-22312
C39 Capacitor, Tant, 1µF, 35V . . . . . . . . . . . . . . . .48-01031
C40 Capacitor, Poly 0.01µF 100V . . . . . . . . . . . . . .46-10312
C41 Capacitor, Mylar, 0.22µF . . . . . . . . . . . . . . . . .46-22412
C42 Capacitor, Poly 0.01µF 100V . . . . . . . . . . . . . .46-10312
C43 Capacitor, Poly 0.1µF 100V . . . . . . . . . . . . . . .46-10412
C44 Capacitor, Poly 0.0068µF 100V . . . . . . . . . . . .46-68212
C45 Capacitor, Poly 0.068µF 100V . . . . . . . . . . . . .46-68312
C46 Capacitor, Mylar, 0.0033µF/100V . . . . . . . . . . .46-33212
C47 Capacitor, Poly 0.033µF 100V . . . . . . . . . . . . .46-33312
C48 Capacitor, Poly 0.0022µF 100V . . . . . . . . . . . .46-22212
C49 Capacitor, Poly 0.022µF 100V . . . . . . . . . . . . .46-22312
C50 Capacitor, Poly, .001µF, 100V . . . . . . . . . . . . .46-10212
C51 Capacitor, Poly 0.01µF 100V . . . . . . . . . . . . . .46-10312
C52 Capacitor, Ceramic, 680pF . . . . . . . . . . . . . . . .45-68152
C53 Capacitor, Poly 0.0068µF 100V . . . . . . . . . . . .46-68212
C54 Capacitor, Ceramic, 560pF . . . . . . . . . . . . . . . .45-56152
C55 Capacitor, Ceramic, 39pF . . . . . . . . . . . . . . . . .45-39052
C56 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C57 Capacitor, Poly 0.01µF 100V . . . . . . . . . . . . . .46-10312
C58 Capacitor, Poly 0.01µF 100V . . . . . . . . . . . . . .46-10312
C59 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C60 Capacitor, Poly 0.0022µF 100V . . . . . . . . . . . .46-22212
C61 Capacitor, Tant, 10µF, 6.3V . . . . . . . . . . . . . . .48-10060
C62 Capacitor, Poly 0.1µF 100V . . . . . . . . . . . . . . .46-10412
C63 Capacitor, Tant, 1µF, 35V . . . . . . . . . . . . . . . .48-01031
C64 Capacitor, Ceramic, 39pF . . . . . . . . . . . . . . . . .45-39052
C66 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C67 Capacitor, Poly 0.022µF 100V . . . . . . . . . . . . .46-22312
C68 Capacitor, Poly 0.022µF 100V . . . . . . . . . . . . .46-22312
C69 Capacitor, Poly, .001µF, 100V . . . . . . . . . . . . .46-10212
C70 Capacitor, Ceramic, 680pF . . . . . . . . . . . . . . . .45-68152
C72 Capacitor, Ceramic, 56pF . . . . . . . . . . . . . . . . .45-56052
C75 Capacitor, Ceramic, 120pF . . . . . . . . . . . . . . . .45-12152
C76 Capacitor, Ceramic, 120pF . . . . . . . . . . . . . . . .45-12152
C77 Capacitor, Ceramic, .1µF . . . . . . . . . . . . . . . . .45-12152
C78 Capacitor, Ceramic, 39pF . . . . . . . . . . . . . . . . .45-10551
C79 Capacitor, Ceramic, .1µF . . . . . . . . . . . . . . . . .45-12152
C80 Capacitor, Electrolytic, 470µF, 16V . . . . . . . . .47-47116
C81 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C82 Capacitor, Electrolytic, 470µF, 16V . . . . . . . . .47-47116
C201 Capacitor, Electrolytic, 470µF, 25V . . . . . . . . .47-47125
C202 Capacitor, Electrolytic, 470µF, 25V . . . . . . . . .47-47125
C207 Capacitor, Electrolytic, 470µF, 25V . . . . . . . . .47-47125
C208 Capacitor, Electrolytic, 220µF, 50V . . . . . . . . .47-22151
C209 Capacitor, Electrolytic, 220µF, 50V . . . . . . . . .47-22151
C210 Capacitor, Electrolytic, 220µF, 50V . . . . . . . . .47-22151
C211 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C212 Capacitor, Poly 0.022µF 100V . . . . . . . . . . . . .46-22312
C213 Capacitor, Electrolytic, 220µF, 50V . . . . . . . . .47-22151
C214 Capacitor, Poly 0.022µF 100V . . . . . . . . . . . . .46-22312
C215 Capacitor, Electrolytic, 220µF, 50V . . . . . . . . .47-22151
C216 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
80-40624 Red Line Master PCB
PCB REF DESCRIPTION PART #
C217 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C218 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C219 Capacitor, Electrolytic, 470µF, 16V . . . . . . . . .47-47116
C220 Capacitor, Electrolytic, 10,000µF, 80V . . . . . . .42-10381
C221 Capacitor, Electrolytic, 10,000µF, 80V . . . . . . .42-10381
C222 Capacitor, Electrolytic, 220µF, 50V . . . . . . . . .47-22151
C301 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C302 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C303 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C304 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C305 Capacitor, Poly 0.068µF 100V . . . . . . . . . . . . .46-68312
C306 Capacitor, Poly 0.068µF 100V . . . . . . . . . . . . .46-68312
C307 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
D1 LED, Small Red . . . . . . . . . . . . . . . . . . . . . . . .60-75320
D2 LED, Small Green . . . . . . . . . . . . . . . . . . . . . . .60-75330
D3 LED, Small Yellow . . . . . . . . . . . . . . . . . . . . . .60-75340
D4 LED, Small Red . . . . . . . . . . . . . . . . . . . . . . . .60-75320
D5 LED, Small Red . . . . . . . . . . . . . . . . . . . . . . . .60-75320
D6 LED, Small Red . . . . . . . . . . . . . . . . . . . . . . . .60-75320
D7 Diode, 1N914 . . . . . . . . . . . . . . . . . . . . . . . . . .61-19140
D8 Diode, 1N914 . . . . . . . . . . . . . . . . . . . . . . . . . .61-19140
D201 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D202 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D203 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D204 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D205 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D206 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D207 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D208 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D209 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D210 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D211 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
H1 Conn. Header, 8 Pin, .100, Straight . . . . . . . . .23-11008
H2 Conn. Header, 4 Pin, .100, Straight . . . . . . . . .23-11004
H3 Conn. Header, 8 Pin, .100, Straight . . . . . . . . .23-11008
H4 Conn. Header, 2 Pin, .100, Straight . . . . . . . . .23-11002
H201 Conn. Header, 8 Pin, .100, Straight . . . . . . . . .23-11008
H202 Conn. Header, 4 Pin, .100, Straight . . . . . . . . .23-11004
H203 Conn. Header, 4 Pin, .100, Straight . . . . . . . . .23-11004
H204 Conn. Header, 2 Pin, .100, Straight . . . . . . . . .23-11002
H205 Conn. Header, 4 Pin, .100, Straight . . . . . . . . .23-11004
H206 Conn. Header, 4 Pin, .100, Straight . . . . . . . . .23-11004
H301 Conn. Header, 8 Pin, .100, Straight . . . . . . . . .23-11008
H303 Conn. Header, 8 Pin, .100, Straight . . . . . . . . .23-11008
J1 Jack, 1/4” 3P Plastic, 24mm . . . . . . . . . . . . . . .21-06453
J2 Jack, 1/4” 3P Plastic, 24mm . . . . . . . . . . . . . . .21-06453
J3 Jack, 1/4” 7P Plastic, 24mm . . . . . . . . . . . . . . .21-06457
J4 Jack, 1/4” 3P Plastic, 24mm . . . . . . . . . . . . . . .21-06453
J5 Jack, 1/4” 3P Plastic, 24mm . . . . . . . . . . . . . . .21-06453
J6 Jack, 1/4” 3P Plastic, 24mm . . . . . . . . . . . . . . .21-06453
J7 Jack, 1/4” 3P Plastic, 24mm . . . . . . . . . . . . . . .21-06453
J8 Jack, 1/4” 3P Plastic, 24mm . . . . . . . . . . . . . . .21-06453
J9 Jack, 1/4” 3P Plastic, 24mm . . . . . . . . . . . . . . .21-06453
J10 XLR, Male, Vert . . . . . . . . . . . . . . . . . . . . . . . .21-00306
J11 Jack, 1/4” 7P Plastic, 24mm . . . . . . . . . . . . . . .21-06457
J12 Jack, 1/4” 3P Plastic, 24mm . . . . . . . . . . . . . . .21-06453
J13 Jack, 1/4” 3P Plastic, 24mm . . . . . . . . . . . . . . .21-06453
L301 Inductor, 2.5µH, 26 Turns of 15AWG, .31" i.d. .15-00165
L302 Inductor, 2.5µH, 26 Turns of 15AWG, .31" i.d. .15-00165
P1 Pot, 9 ”D-P”, 35F B50K-C . . . . . . . . . . . . . . . . .71-09052
P2 Pot, 9 ”D-P”, 35F B50K . . . . . . . . . . . . . . . . . . .71-09053
P3 Pot, 9 ”D-P”, 35F B50K-C . . . . . . . . . . . . . . . . .71-09052
P4 Pot, 9 ”D-P”, 35F B50K-C . . . . . . . . . . . . . . . . .71-09052
P5 Pot, 14 ”D-P”, 35F 15C50Kx2 . . . . . . . . . . . . . .71-13071
P6 Pot, 9 ”D-P”, 35F B50K-C . . . . . . . . . . . . . . . . .71-09052
P7 Pot, 9 ”D-P”, 35F B50K . . . . . . . . . . . . . . . . . . .71-09053
P8 Pot, 9 ”D-P”, 35F B50K . . . . . . . . . . . . . . . . . . .71-09053
P9 Pot, 9 ”D-P”, 35F B50K . . . . . . . . . . . . . . . . . . .71-09053
P10 Pot, 14 ”D-P”, 35F 15C50Kx2 . . . . . . . . . . . . . .71-13071
P11 Pot, 9 ”D-P”, 35F B50K . . . . . . . . . . . . . . . . . . .71-09053
P12 Pot, 9 ”D-P”, 35F B50K . . . . . . . . . . . . . . . . . . .71-09053
P13 Pot, 9 ”D-P”, 35F B50K . . . . . . . . . . . . . . . . . . .71-09053
P14 Fader, 30, B10K-CC . . . . . . . . . . . . . . . . . . . . .71-10332
P15 Fader, 30, B10K-CC . . . . . . . . . . . . . . . . . . . . .71-10332
P16 Fader, 30, B10K-CC . . . . . . . . . . . . . . . . . . . . .71-10332
P17 Fader, 30, B10K-CC . . . . . . . . . . . . . . . . . . . . .71-10332
P18 Fader, 30, B10K-CC . . . . . . . . . . . . . . . . . . . . .71-10332
P19 Fader, 30, B10K-CC . . . . . . . . . . . . . . . . . . . . .71-10332
P20 Fader, 30, B10K-CC . . . . . . . . . . . . . . . . . . . . .71-10332
P21 Fader, 30, B10K-CC . . . . . . . . . . . . . . . . . . . . .71-10332
P22 Fader, 30, B10K-CC . . . . . . . . . . . . . . . . . . . . .71-10332
P23 Pot, Trimmer, 20K . . . . . . . . . . . . . . . . . . . . . .71-22012
Q1 Transistor, 2N5550 . . . . . . . . . . . . . . . . . . . . . .60-55500
Q2 J175, JFET, P-Channel . . . . . . . . . . . . . . . . . .60-17500
Q3 J175, JFET, P-Channel . . . . . . . . . . . . . . . . . .60-17500
Q4 J175, JFET, P-Channel . . . . . . . . . . . . . . . . . .60-17500
Q5 J175, JFET, P-Channel . . . . . . . . . . . . . . . . . .60-17500
Q6 Transistor, Darlington, NPN, 0.5A, 30V . . . . . .60-00014
Q200 Transistor, Darlington, NPN, 0.5A, 30V . . . . . .60-00014
QC201 Quick Connect, .250, Vert . . . . . . . . . . . . . . . .06-40050
QC202 Quick Connect, .250, Vert . . . . . . . . . . . . . . . .06-40050
QC203 Quick Connect, .250, Vert . . . . . . . . . . . . . . . .06-40050
QC204 Quick Connect, .250, Vert . . . . . . . . . . . . . . . .06-40050
QC205 Quick Connect, .250, Vert . . . . . . . . . . . . . . . .06-40050
QC206 Quick Connect, .250, Vert . . . . . . . . . . . . . . . .06-40050
QC207 Quick Connect, .250, Vert . . . . . . . . . . . . . . . .06-40050
CIRCUIT CARD SUB ASSEMBLIES
2

CARVIN R600 Red Line Series Specifications

General

Brand	CARVIN
Model	R600 Red Line Series
Category	Amplifier
Language	English
