24
CAS ELECTRICS CO.,LTD
2
BB01-JP0-0021
FISH TRAY
EA
1

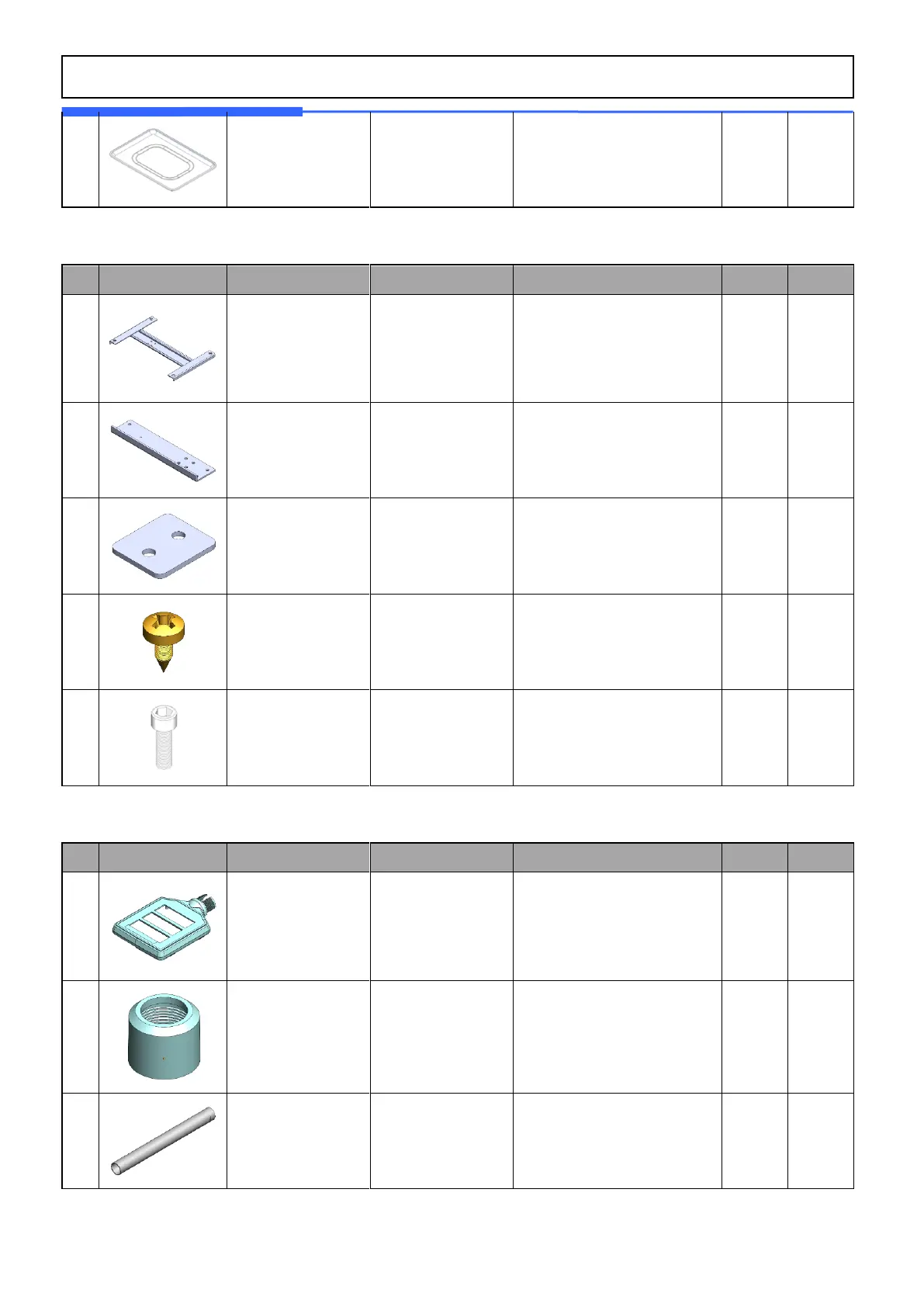

7.2.4. PLATFORM ASS'Y
No
Part Code
Parts Name
DESCRIPTION
Unit
Q'ty
1
BB01-JP0-0006
UPPER PLATFORM
EA
1
2
BB01-JP0-0007
LOWER
PLATFORM
EA
1
3
BB01-JP0-0008
LOADCELL
PLATE
4
1510-A00-0408
T SCREW-1
(PH M4X8)
5
1530-A00-0620
W BOLT (M6X20)
7.2.5. PLATFORM ASS'Y
No
Part Code
Parts Name
DESCRIPTION
Unit
Q'ty
1
2000-PR0-1118
DISPLAY CASE
EA
1
2
2001-A00-0042
DISPLAY NUT
EA
1
3
1150-PR0-1122
POST PIPE
EA
1
