Cascade J Series User Manual

6871082-R28
INSTALLATION
B
D
C
A
GA0005.eps
WARNING: Make sure all personnel
are clear of the attachment during
testing.
10
Cycle attachment functions
• With no load, cycle CLAMP function, SIDESHIFT
function and TIPPING function several times.
Check for equal arm movement and adequate arm
speed.
• Clamp and lift a maximum load. Sideshift left and
right. Tip forward and back.
• Check for operation in accordance with ANSI/
ITSDF (ISO) standards.
IMPORTANT: If necessary, adjust relief valve
cartridges. Refer to Installation Step 11.
• Check for leaks at fittings, valve, manifold and
cylinders.

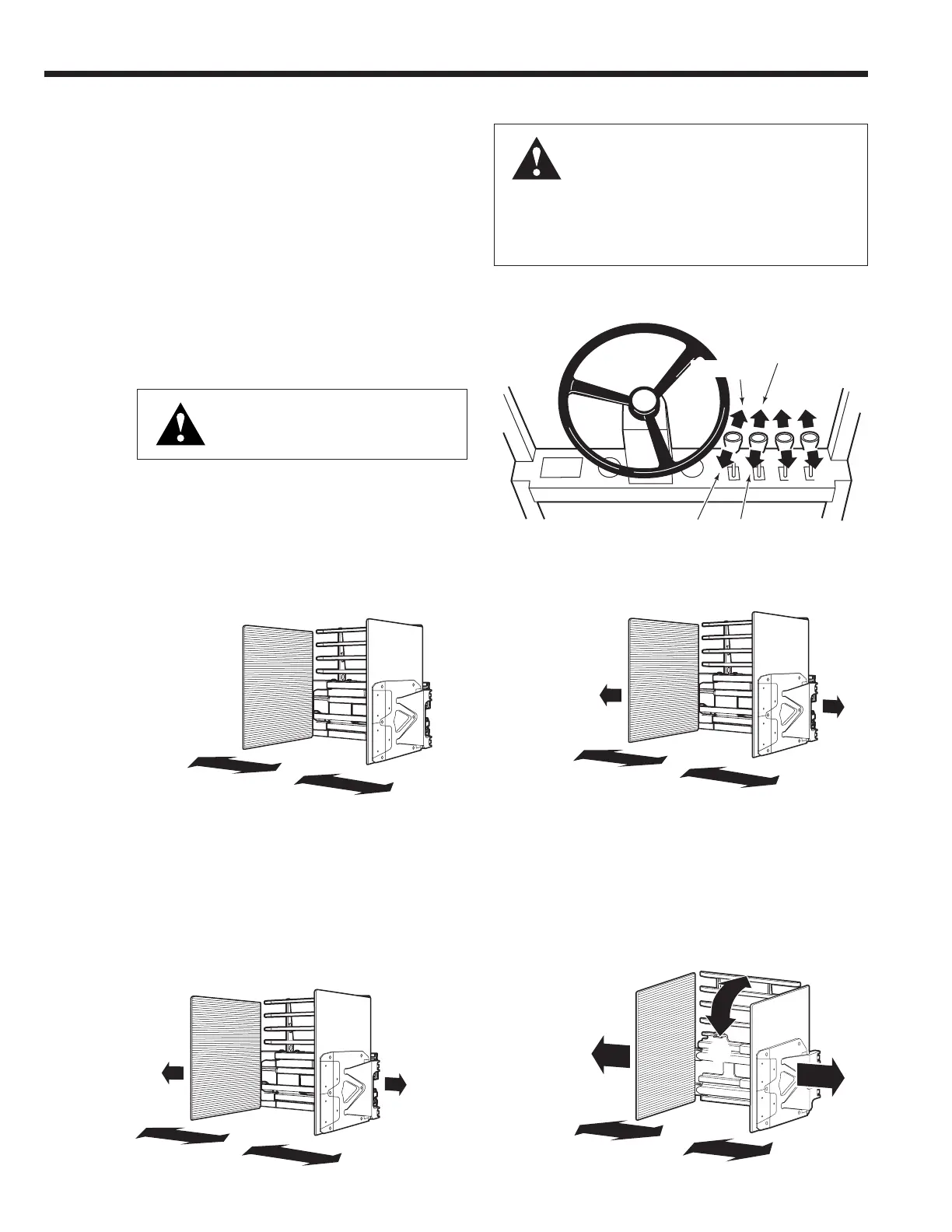

Tilt Forward
AUXILIARY VALVE
FUNCTIONS
Tilt Back
Hoist Down
Hoist Up
WARNING: Truck control handle and
attachment function activation shown here
conforms to ANSI/ITSDF B56.1 (ISO 3691)
recommended practices. Failure to follow
these practices may lead to serious bodily
injury or property damage. End user, dealer
and OEMs should review any deviation from
the practices for safe operation.
CL3270.eps
CL3270.eps
CL3270.eps
CL4541.eps
SIDESHIFTING WITH TIPPING
A Sideshift Left
A Tip Forward
(press knob button)
B Sideshift Right
B Tip Back
(press knob button)
C Release Arms
D Clamp Arms
NON-SIDESHIFTING CLAMPS
A Release Arms
B Clamp Arms
C (not used)
D (not used)
SIDESHIFTING CLAMPS
A Sideshift Left
B Sideshift Right
C Release Arms
D Clamp Arms
SIDESHIFTING CLAMPS WITH
SOLENOID VALVE
A Sideshift Left
A Release Arms
(press knob button)
B Sideshift Right
B Clamp Arms
(press knob button)
B
B
C
D
C
A
A
A
B
B
B
A
A
B
D
A
C
A
C
A
