3-CONTROLSANDINSTRUMENTS
1.
HOURMETER
13.
TESTSWITCH
2.
WATERTEMPERATUREGAUGE
14.
HORNPUSHBUTTON
3.
ENGINEOILPRESSUREGAUGE
15.
IGNITIONSWITCH
4.
NEUTRALINDICATOR
16.
PARKINGBRAKESWITCH
5.
BATTERYNON-CHARGINGINDICATOR
17.
PARKINGLAMPSWITCH
6.
PARKINGBRAKEINDICATOR
18.
HEADLAMPHIGH&LOWBEAM
SWITCH
7.
HIGHCOOLANTTEMPERATURE
INDICATOR
19.
REARLAMPSWITCH
8.
LOWLUBEOILPRESSUREINDICATOR
20.
TURNSIGNALSWITCH
9.
HYDRAULICFILTERCHOKEINDICATOR
21.
WATERPUMPSWITCH
10.
LEFTDIRECTIONINDICATOR
22.
BOTHDRUMHIGH&LOWFREQUENCY
11.
RIGHTDIRECTIONINDICATOR
23.
FRONTDRUMHIGHORLOW
FREQUENCYSWITCH
12.
VOLTMETER
24.
MCB
25
HAZARDSWITCH
Instruments

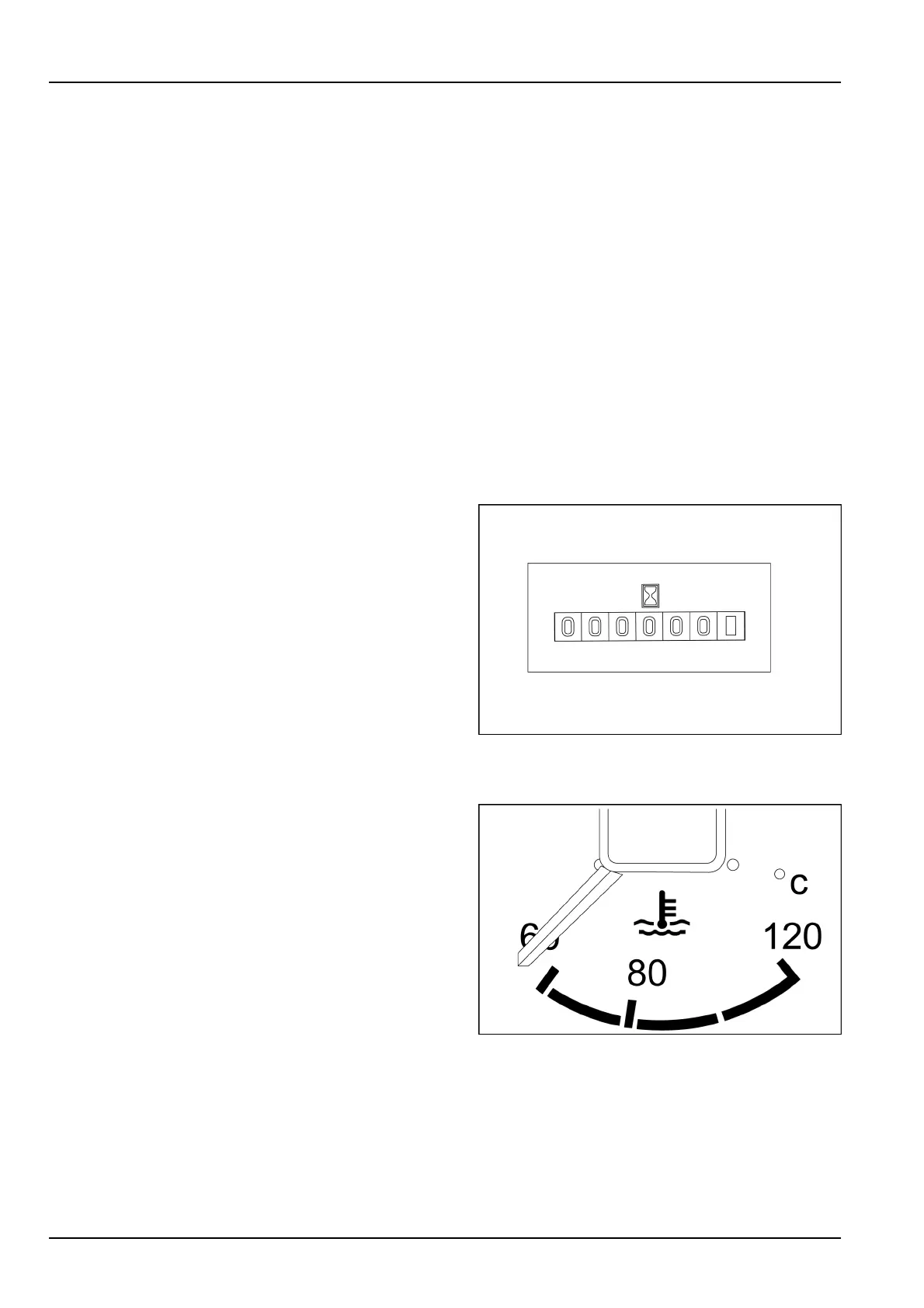

1.HourMeter
Thiselectronichourmeterisconnectedtothealternator.
Whenevertheengineisrunning,thehourmeterstarts
counting.Regularlymonitoringthehourmeterreading
willindicatethenumberofworkinghours(Cumulative).
Thiswillfacilitatetimelymaintenance/servicingofthe
machine.
Donotdisconnectthehourmeterforanyreasons.
PTIL15COM0040AB2
2.EngineCoolantTemperatureGauge
Enginecoolanttemperaturegaugeindicatestheengine
coolanttemperature.
Ensurethecoolanttemperaturegaugeisalwayswithin
thegreenband.
NOTE:IfthetemperaturegaugecrossesintotheRED
band,stoptheengineimmediatelyandcontactthenear-
estauthorisedenginedealer.
PTIL14COM0030AA3
3-6
