1-GENERALINFORMATION

Productidentication

Recordthemachineandpartidenticationnumbers,ifneeded,givethesenumberstoyourDealerwhenyouneed

partsorinformationforyourmachine.Keeparecordofthesenumbersandyourmanufacturer’sstatementororigin

inasafeplace.Ifthemachineisstolen,reportthenumberstoyourlocallawenforcementagency.

Machineidentication

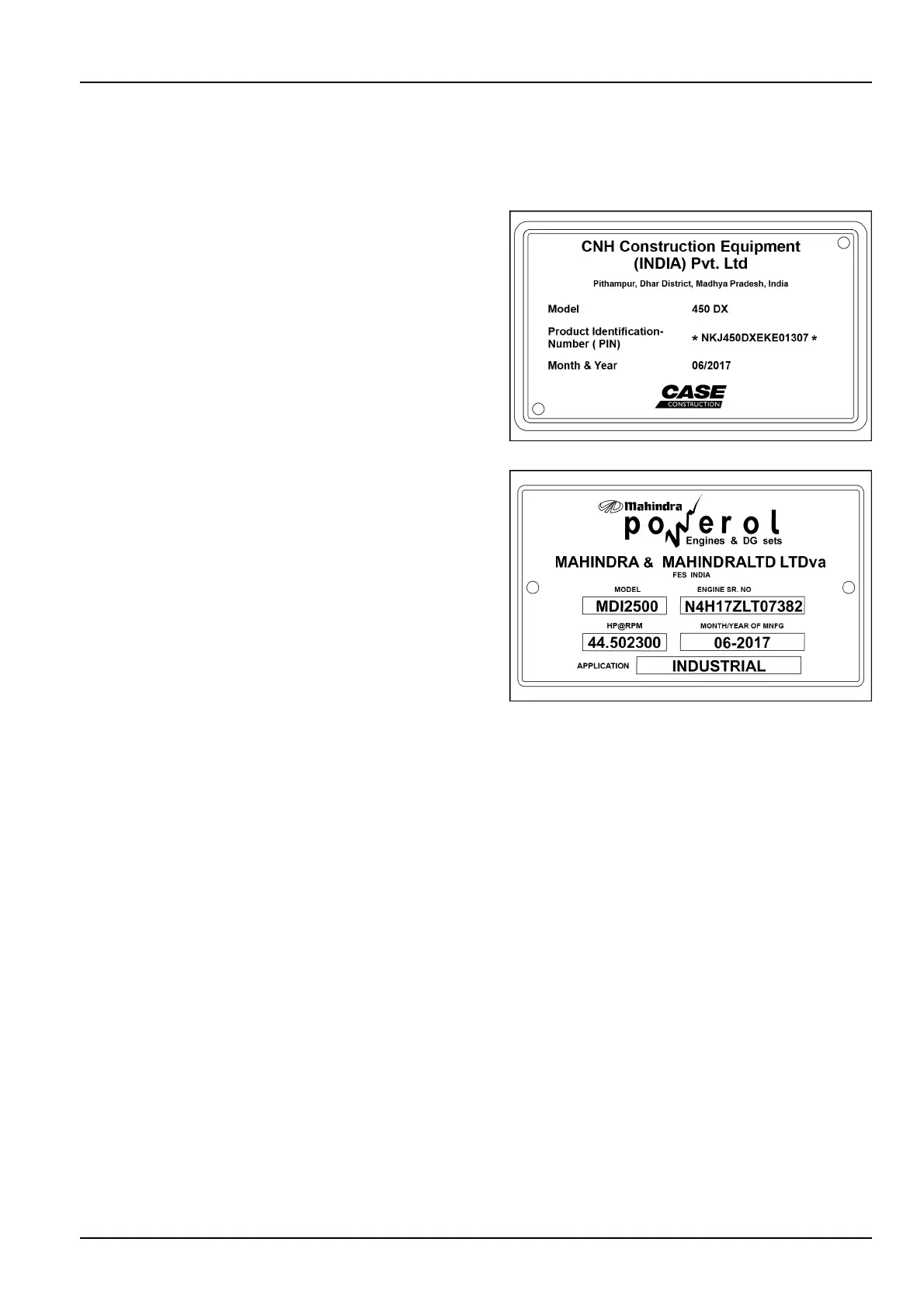

Yourmachineidenticationplateismountedonsteering

column.

PTIL17COM1004AA1

Engineidenticationplate

PTIL17COM1005AA2

Somemajorcomponentsofthemachinehavetheirownidenticationplates/stickers,whichareavailableonthese

individualcomponents.

Itisnecessarytoquotetheserialnumbersprovidedontheidenticationplatesofthemajorcomponentslikeengine,

chassiswheneveranyservice/partsassistanceisrequired.
