SECTION 1 - GENERAL INFORMATION AND SAFETY
1ï10
5. PTO connection 1000 revs / min
6. Caution: Some parts get hot do not touch
7. Hydraulic reservoir refer to manual
8. Danger: Close shield during baler operation
9. Baler lifting points
10. Wheel and axle bolt torques
11. Wheel bolt torque check
12. Reflective strips
13. Danger: No riders allowed on moving baler
14. Warning: Needle lock lever
15. Danger: Rotating driveline
16. Caution: On road requirements
17. Oil pressure decal
18. Reflective strips
19. Danger: Kneedle frame Danger
20. Warning: Knotter fan running
21. Caution: Knotter to needle timing

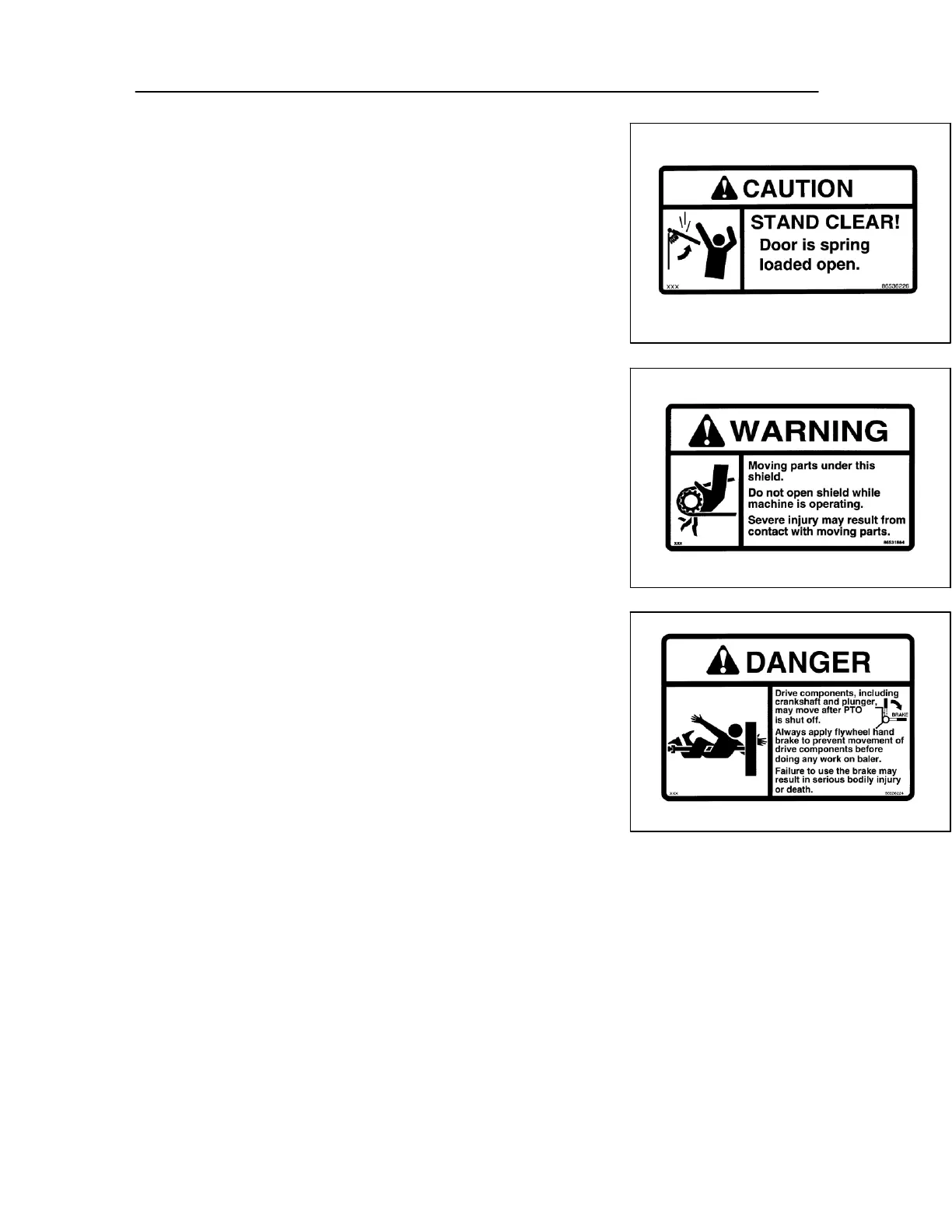

1. CAUTION
STAND CLEAR!
Door is spring
loaded open.
a. Left front door.
b. Left rear door.
c. Right rear door.
d. Right front door.
2. WARNING
Moving parts
under this shield.
Do not open
shield while
machine is
operating.
Severe injury
may result from
contact with
moving parts.
a. Left front door.
b. Left rear corner
of knotter cover.
c. Right front door.
3. DANGER
Drive
components,
including
crankshaft and
plunger, may move after PTO is shut off. Always apply
flywheel hand brake to prevent movement of drive
components before doing any work on baler.
Failure to use the brake may result in serious injury or
death.
Location: Left side of tongue.
