MONITOR OPTIONS
59
BALER PERFORMANCE MONITOR (BLACK AND WHITE DISPLAY) - OPTIONAL EQUIPMENT

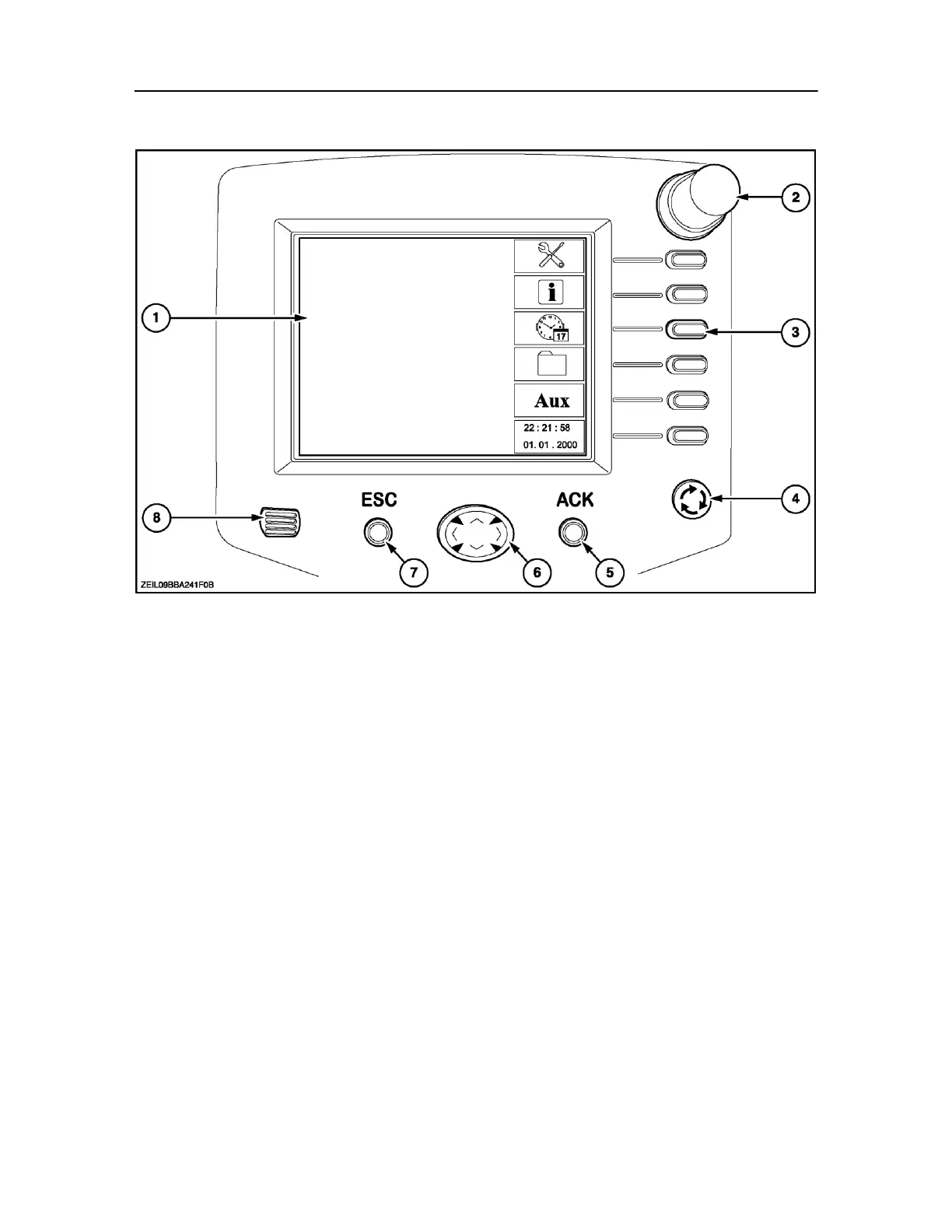

CONTROLS SELECTION
1. Main (home) screen: Displays the baler screens
and operator setting screens.
IMPORTANT: The monitor screen displayed will vary
depending upon the machine it is resident in.
2. Rotary Encoder: Is used to navigate around the
different screen selections, when pressed it
highlights the field, then make your selection.
Press again to save your selection Depending
upon the displayed screen, the encoder can also
increase and decrease alpha, numeric values.
3. Soft keys: These keys are used for screen,
implement, or data selection depending upon the
displayed screen at the time.
4. Switch key: Used to switch between different
ISOBUS implements of which the baler can be
one.
5. Acknowledge / Enter key: Once a selection is made
pressing the enter key confirms that selection.
6. Arrow navigation keys: Are used for selection of
any desired input screen. Once selected, the
background of the selected screen will be
highlighted and the data shown in the screen can
be changed by turning the rotary encoder knob
(2).
7. Escape key: Used when an error is made during an
input, to remove that input.
8. Speaker: Emits audible warnings.
Input selection
