SECTION 1 - GENERAL INFORMATION AND SAFETY
1ï14

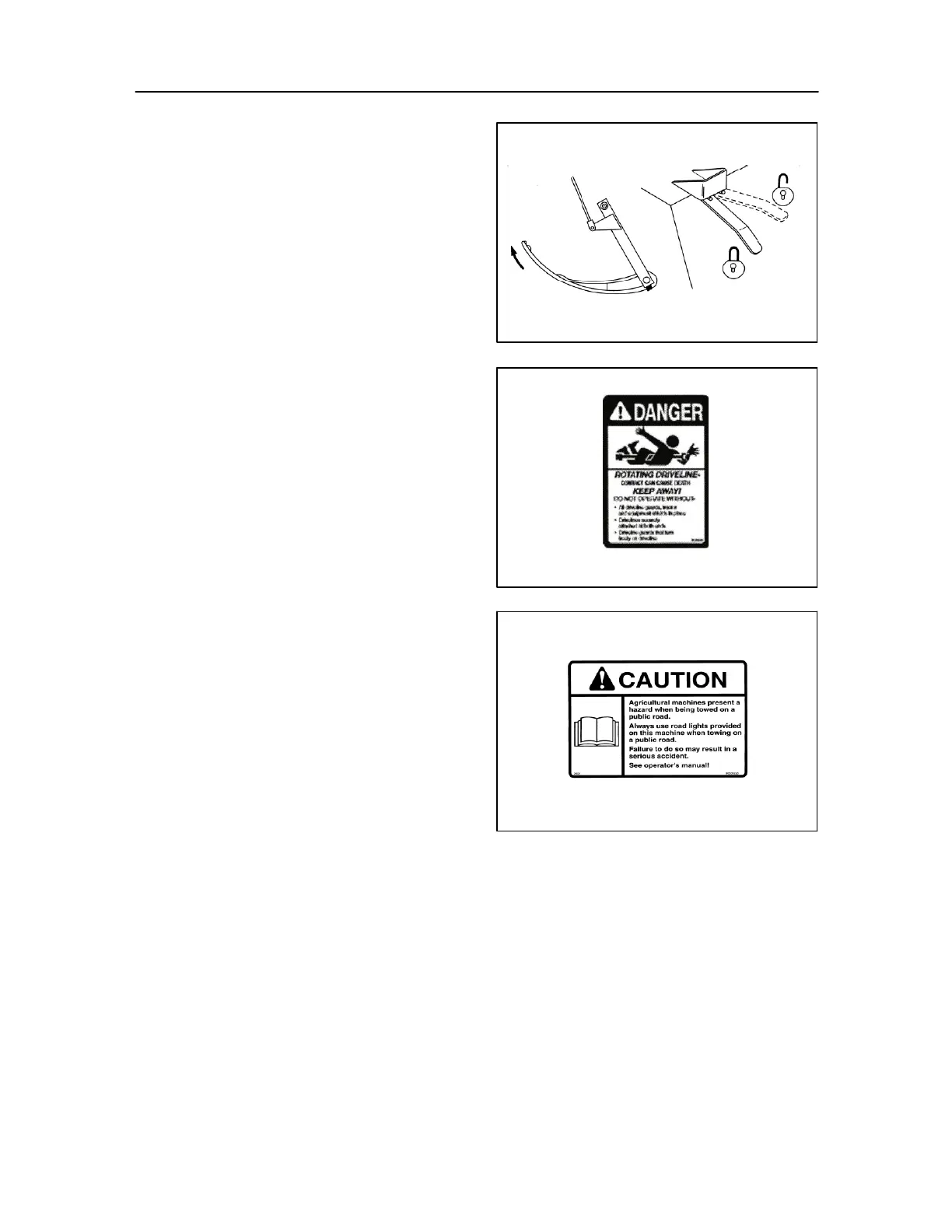

14. This decal shows the safety lock arm to retain the
needle yoke in its ''home position'' when the baler
is transported or when needles are to be
threaded, or during any maintenance work in the
knotter area.
a. Near top of ladder.
b. Left rear corner of baler
15. DANGER ROTATING DRIVELINE
CONTACT CAN CAUSE DEATH
KEEP AWAY
DO NOT OPERATE WITHOUT -
- All driveline guards, tractor and equipmentshields
in place.
- Drivelines securely attached at both ends.- Driveline
guards that turn freely on driveline.
Location: On PTO shaft
16. CAUTION
Agricultural machines present a hazard when being
towed on a public road. Always use road lights provided
on this machine when towing on a public road. Failure to
do so may result in a serious accident.
See operator manual.
Location: Left hand side of tongue.
17. Oil pressure decal - 84007512
Location: Left side front of baler.
18. Reflective strips - 86547782 Location: Front of baler.
