SECTION 2 - CONTROLS, INSTRUMENTS AND OPERATION
2ï25

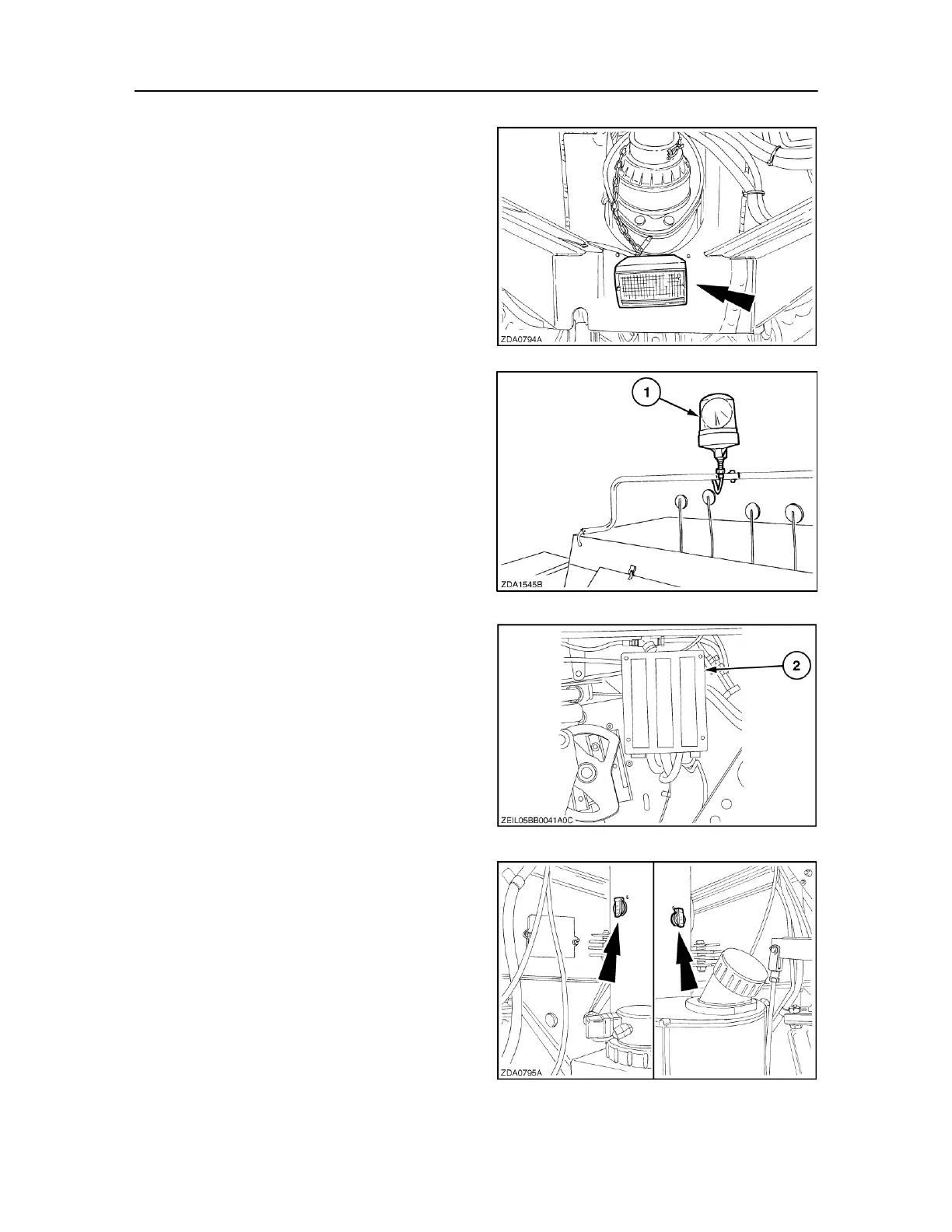

Working light (optional)
Two fixed operating lights are a possibility: one fitted
in the hitch assembly of the baler, pointing to the
pick‐ up (Fig. 39) and one fitted at the front of the
left‐ hand side twine box, pointing to the stuffer drive
(not shown).
The working light is controlled by using the monitor
(refer for more information to paragraph monitor in
this section.
Revolving flashlight (where fitted and subject to local
legislation)
The flashing light is installed on top of the knotter guard
and is controlled from the monitor.
For more information refer to paragraph monitor in this
section.
Electric accessories output
The accessory (2) output channel, limited to 7.5 A
maximum, is located at the top right hand side of the
fuse box.
NOTE: Accessory 2 can also be used as an additional 12 volt
output to the previous four.
Refer to paragraph monitor for the configuration of both
accessory (1) and (2) outputs.
ATTENTION: Never attach an electric device that
exceeds the limits mentioned. 12 V DC sockets
Three plugs are foreseen to connect a portable lamp.
One at each twine box.
IMPORTANT: Use only one plug at a time, the same 5 A fuse
is used by all three sockets.
