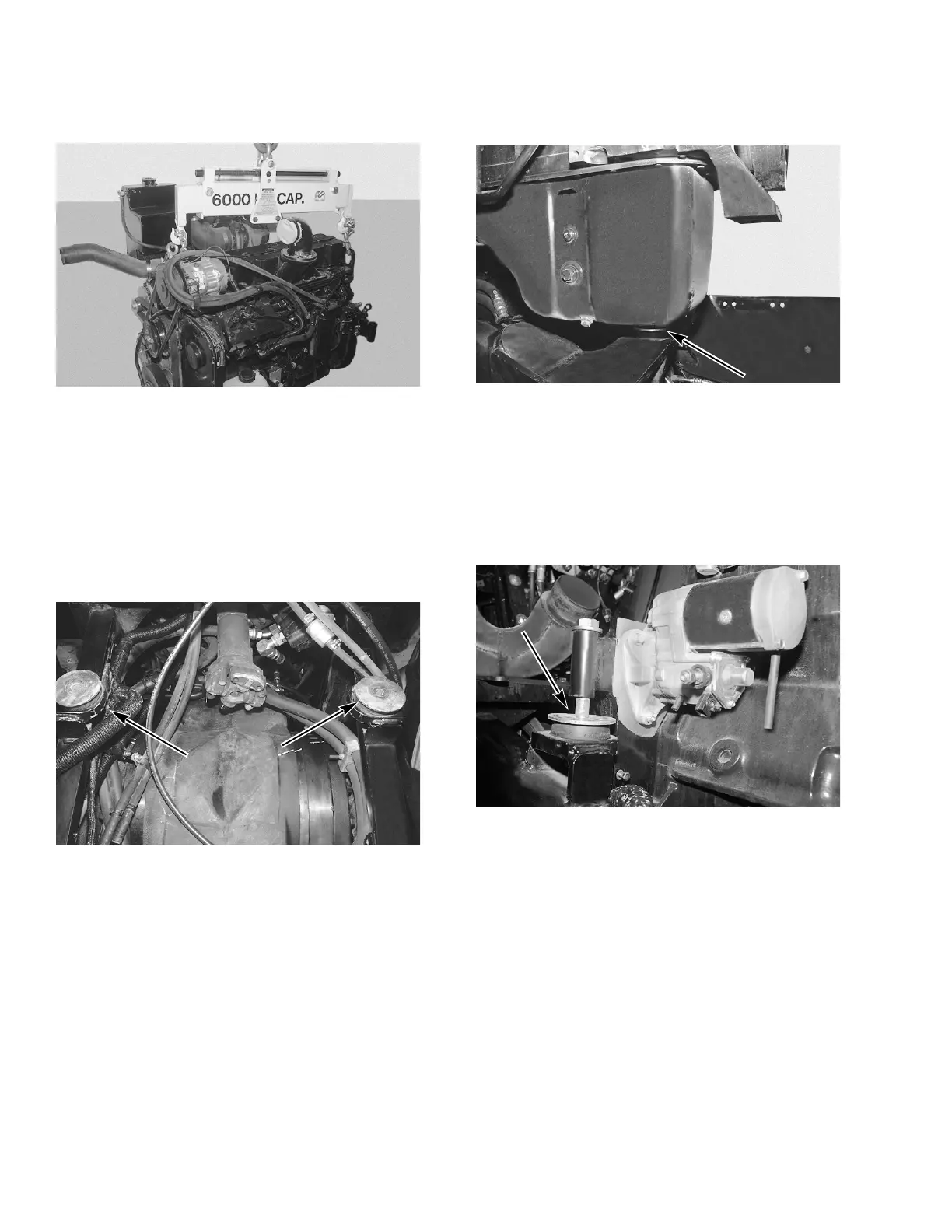

ENGINE INSTALLATION
STEP 36
MK99J036
Install the OEM 4130 Load Rotor on the two engine
lifting brackets. Attach the load rotor to an overhead
hoist.
IMPORTANT: The engine lifting brackets are for
vertical lifting only. Any lifting device that is not
vertically in-line with the lifting brackets can damage
the engine rocker arm cover or cause bracket failure.
STEP 37
MK99J037
If removed after the engine was removed, install the
three large flat washers on the front and rear (shown)
rubber isolators.
STEP 38
MK99J039
Install the bolts and small flat washers in the rear
engine mounts. Lift the engine until the oil pan will
clear the front frame and engine mount
crossmember. Move the engine rearward into the
tractor until it is positioned above the engine
mounting brackets.
STEP 39
MK99J038
Use the rear mounting bolts as guides and slowly
lower the engine on the front frame engine mounting
brackets.
