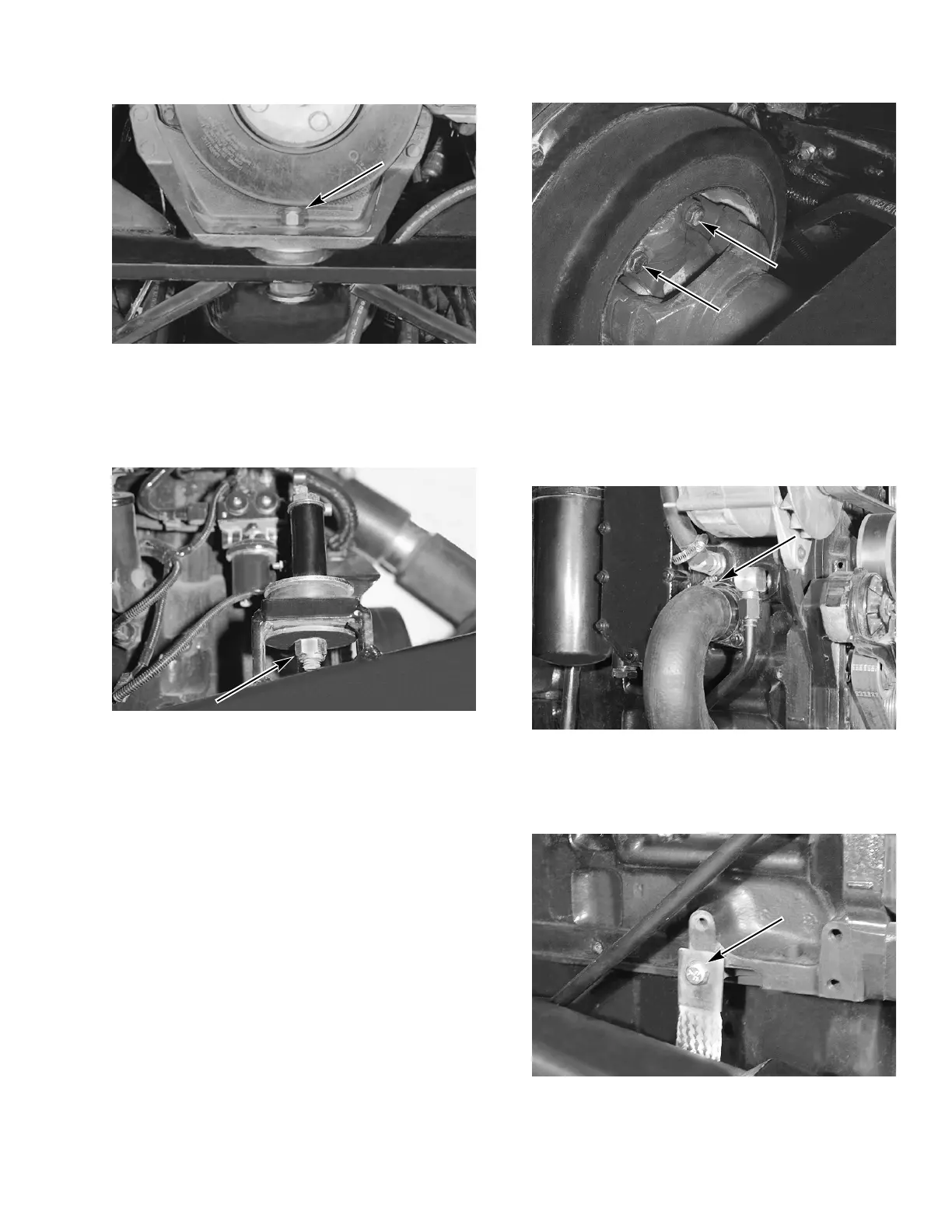

STEP 40
MK99J013
Install the bolt, flat washers and lock nut through the
front motor mount. Tighten the bolt and lock nut to
specifications.
STEP 41
MK99J030
Install the large flat washers and lock nuts on the rear
engine mount bolts. Tighten the bolts and lock nuts to
specifications. Remove the hoist and load rotor.
STEP 42
MK99J015
Move the driveshaft forward and install the four M12 x
20 bolts to secure the driveshaft to the engine drive
coupler. Tighten the bolt and lock nut to
specifications.
STEP 43
MK99J031
Install the lower radiator hose on the engine and
tighten the hose clamp.
STEP 44
MK99J016
Install the right side ground strap on the engine.
