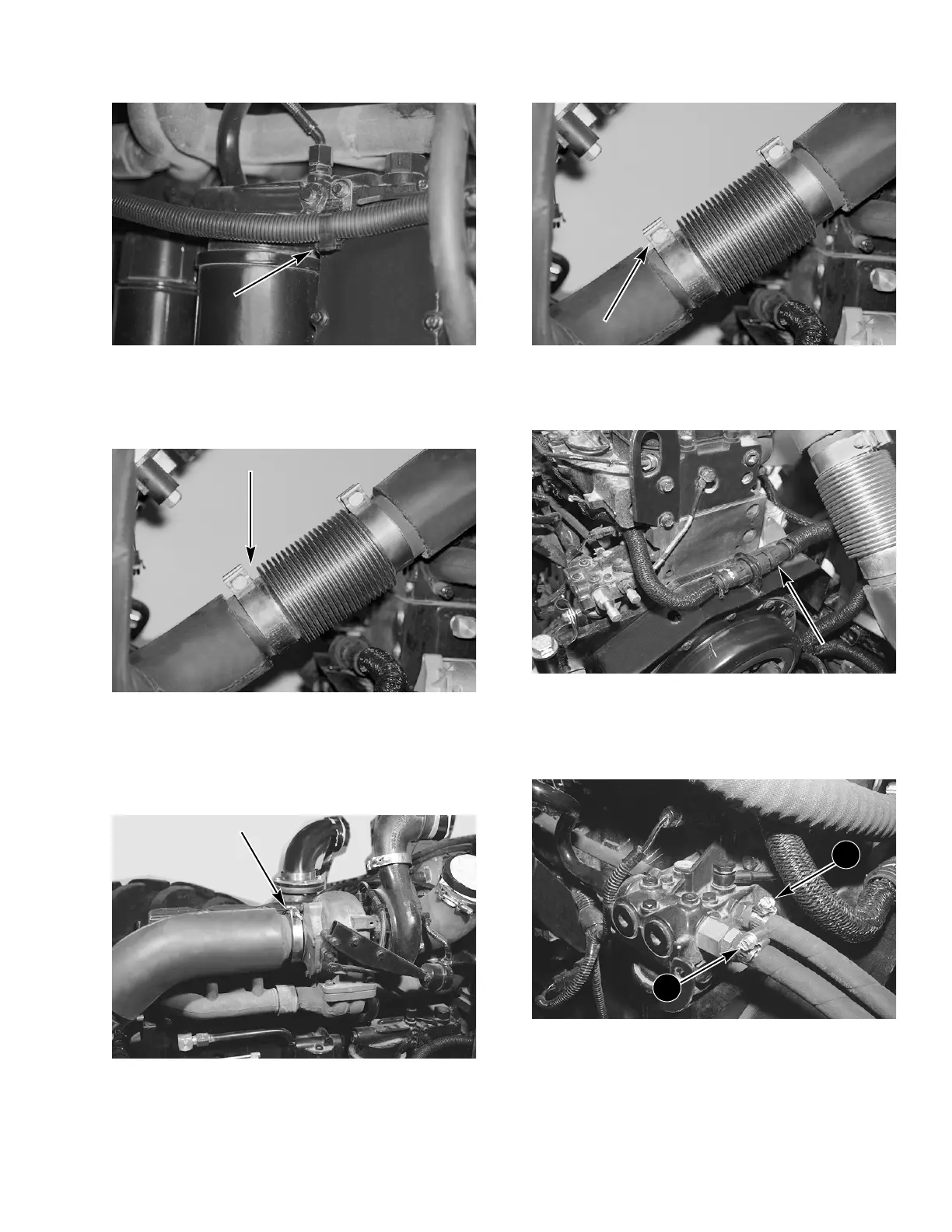

STEP 51
MK99J034
Install the alternator wire harness in the harness
clamp on the engine.
STEP 52
MK99J035
Install the flex tube and exhaust pipe assembly on
the frame mounted exhaust pipe. Do not tighten the
band clamp.
STEP 53
MK99J029
Use the channel clamp to install the exhaust pipe on
turbo exhaust outlet. Tighten the channel clamp to
specifications.
STEP 54
MK99J035
Tighten the flex tube band clamp to specifications.
STEP 55
MK99J028
Install the front frame wire harness connector on the
engine wire harness.
STEP 56
MK99J176
Install the fuel supply hose (1) and the fuel return
hose (2) on the fuel pump. Tighten the hose clamps
and remove the clamps from the hoses.
2
1
