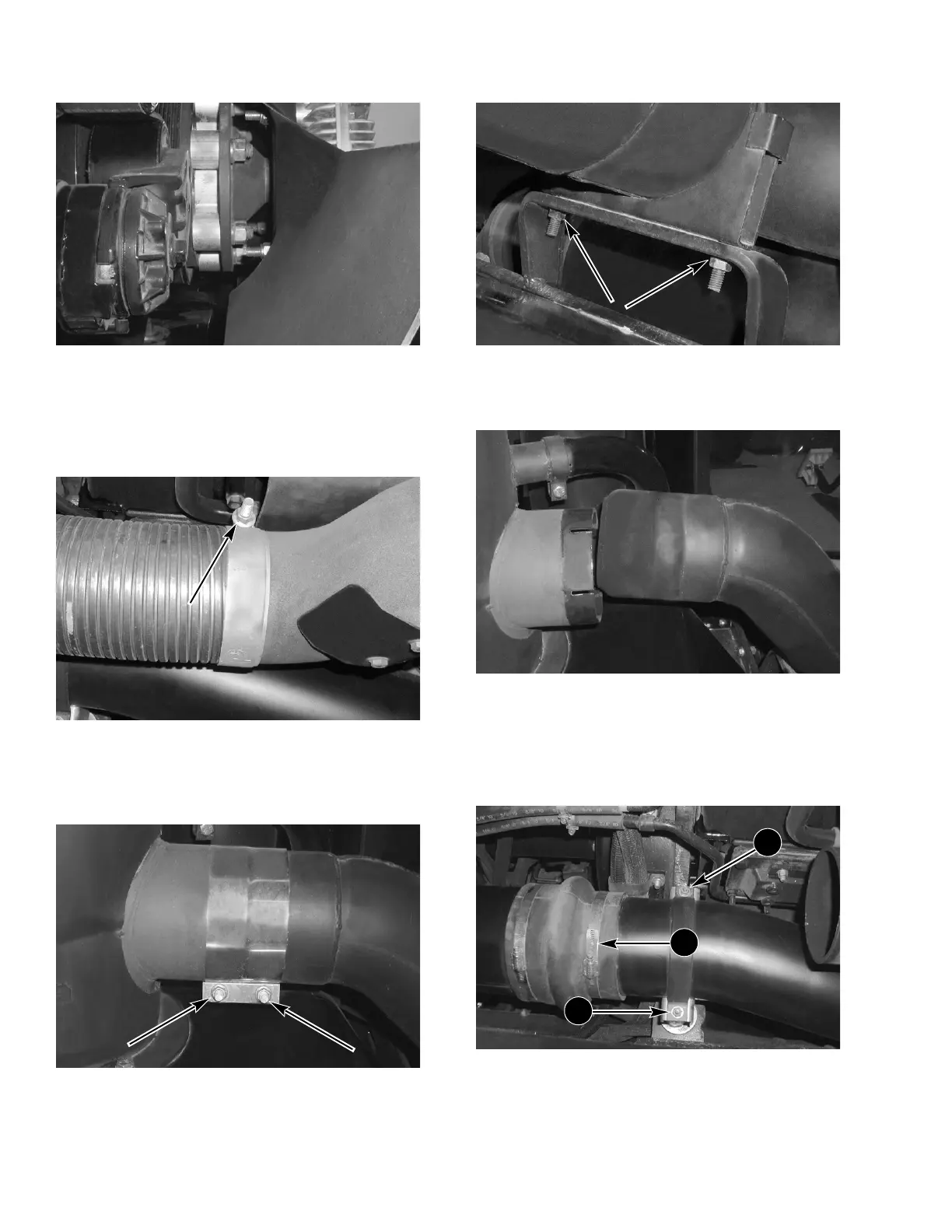

STEP 14
MD02A209
375 MODEL TRACTORS ONLY
Remove the six nuts and lock washers and remove
the fan.
STEP 15
MD02A212
Loosen the band clamp between the turbo exhaust
outlet and the exhaust pipe flex tube.
STEP 16
MD02A211
Remove the band clamp between the muffler and
exhaust pipe.
STEP 17
MD02A213
Remove the clamp from the exhaust pipe.
STEP 18
MD02A215
Remove the exhaust pipe from the muffler. Remove
the flex tube from the turbo exhaust outlet.
Remove the exhaust pipe from the tractor.
STEP 19
MD02A216
Loosen the hose clamp (1) and remove the clamp (2)
from the air tube.
2
2
1
