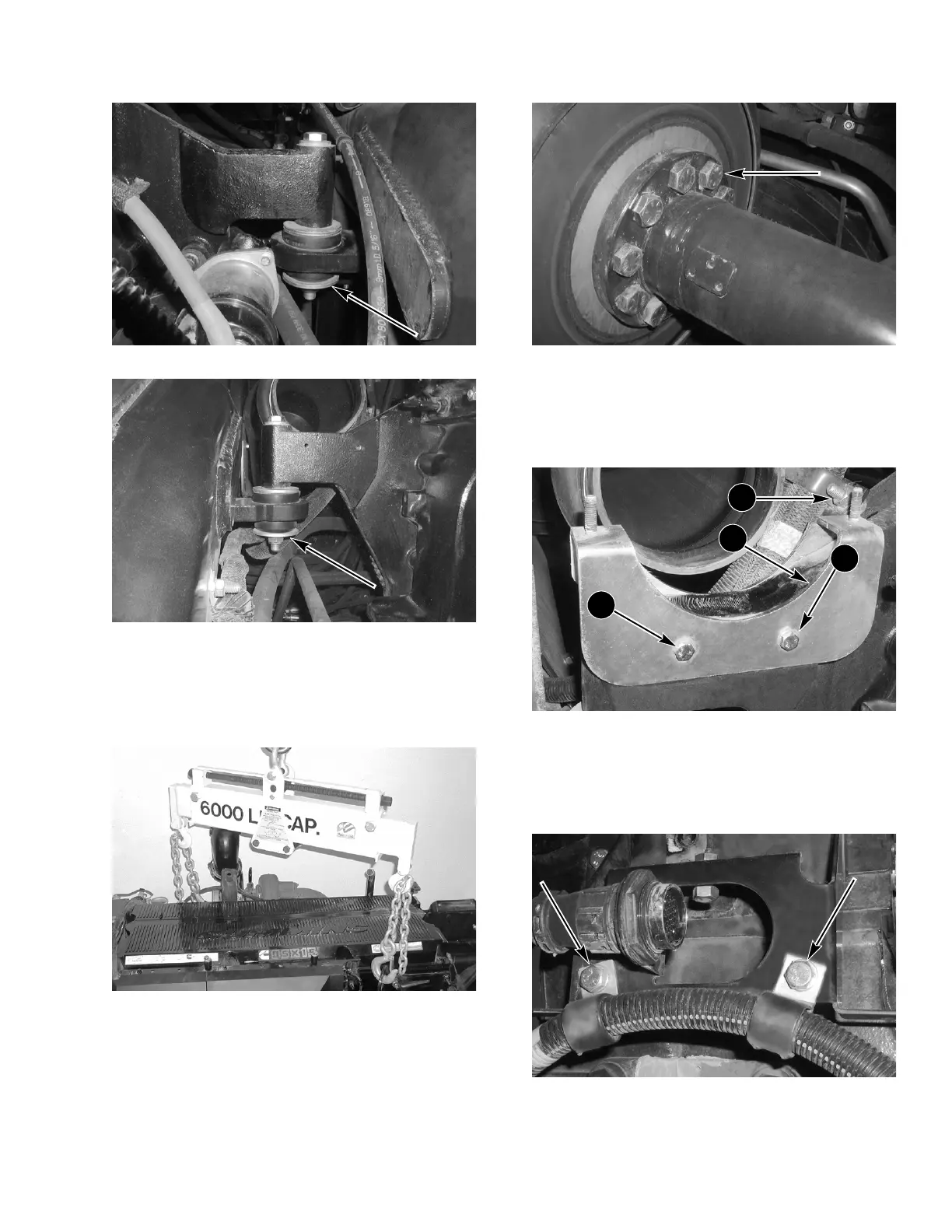

STEP 50
MD02A238
MD02A237
Install the large flat washer and lock nut on the LH
and RH rear motor mount bolts. Tighten the bolts and
nuts to specifications.
STEP 51
MD02A241
Remove the load rotor from the engine.
STEP 52
MD02A236
Move the driveshaft forward and install the ten
driveshaft to drive coupler mounting bolts. Tighten
the bolts to specifications.
STEP 53
MD02A223
Install the air tube bracket (1) and wire harness
bracket (2) on the RH rear motor mount. Tighten the
four bolts (3) to specifications.
STEP 54
MD02A234
Install the starter battery cable clamps on the engine
bracket.
2
1
3
3
