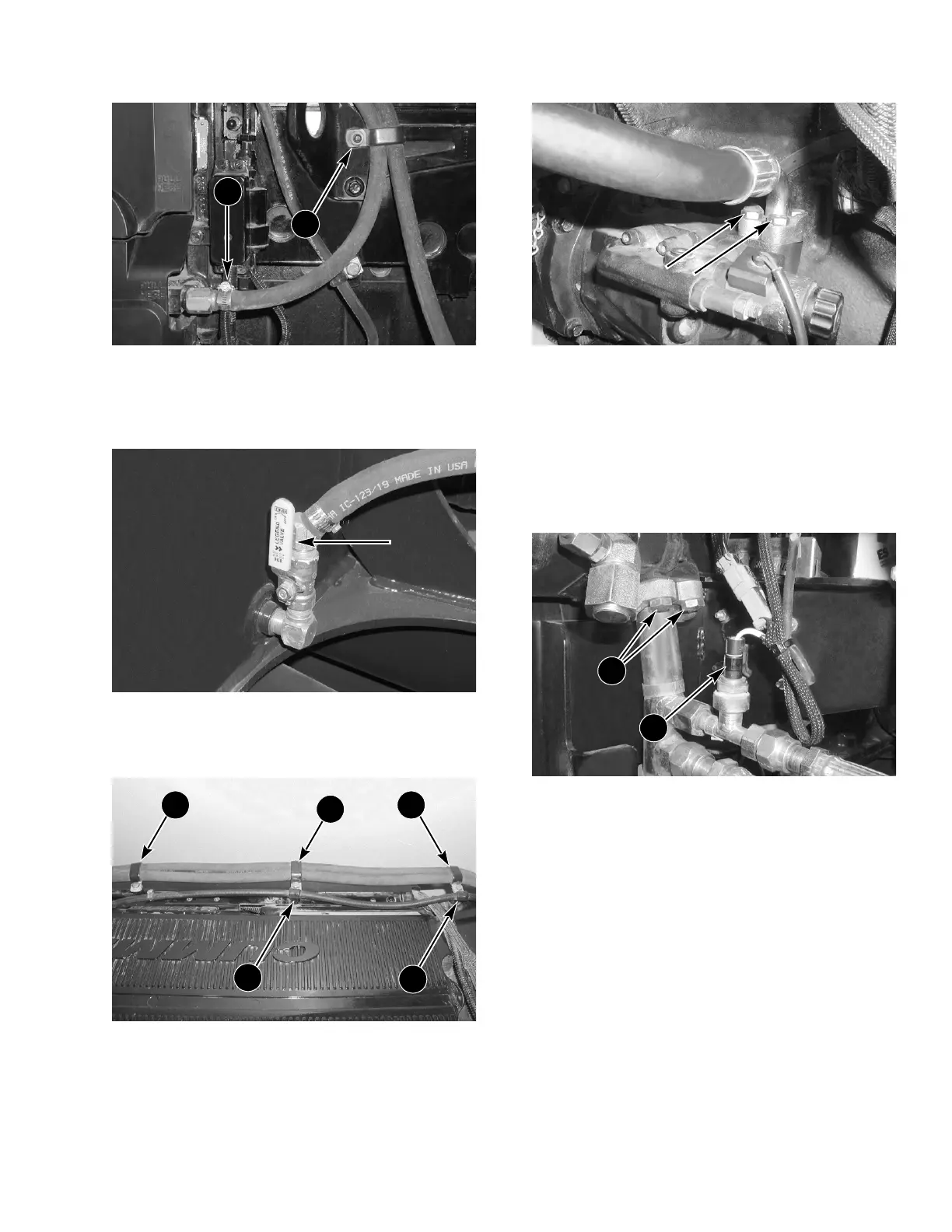

STEP 61
MD02A225
Install and tighten the return hose (1) on the fuel
pump. Install the clamp (2) on the engine.
STEP 62
MD02A227
Turn the fuel tank valve on.
STEP 63
MD02A224
Install the fuel pump to cooler hose clamps (1) and
deaeration hose clamps (2) on the top of the engine.
STEP 64
MD01N083
425 AND 450 MODEL TRACTORS ONLY
Fill the outlet port of the fan drive hydraulic pump with
the specified operating fluid. Install a new O-ring in
the hose end flange and install the hose on the
pump. Tighten the flour split flange mounting bolts to
specifications.
STEP 65
MD01N076
425 AND 450 MODEL TRACTORS ONLY
Lubricate and install a new O-ring on the pump inlet
tube flange. Tighten the four split flange bolts (1) to
specifications. Install the wire connector (2) on the
temperature sensor.
1
2
1
1
1
2
2
1
2
