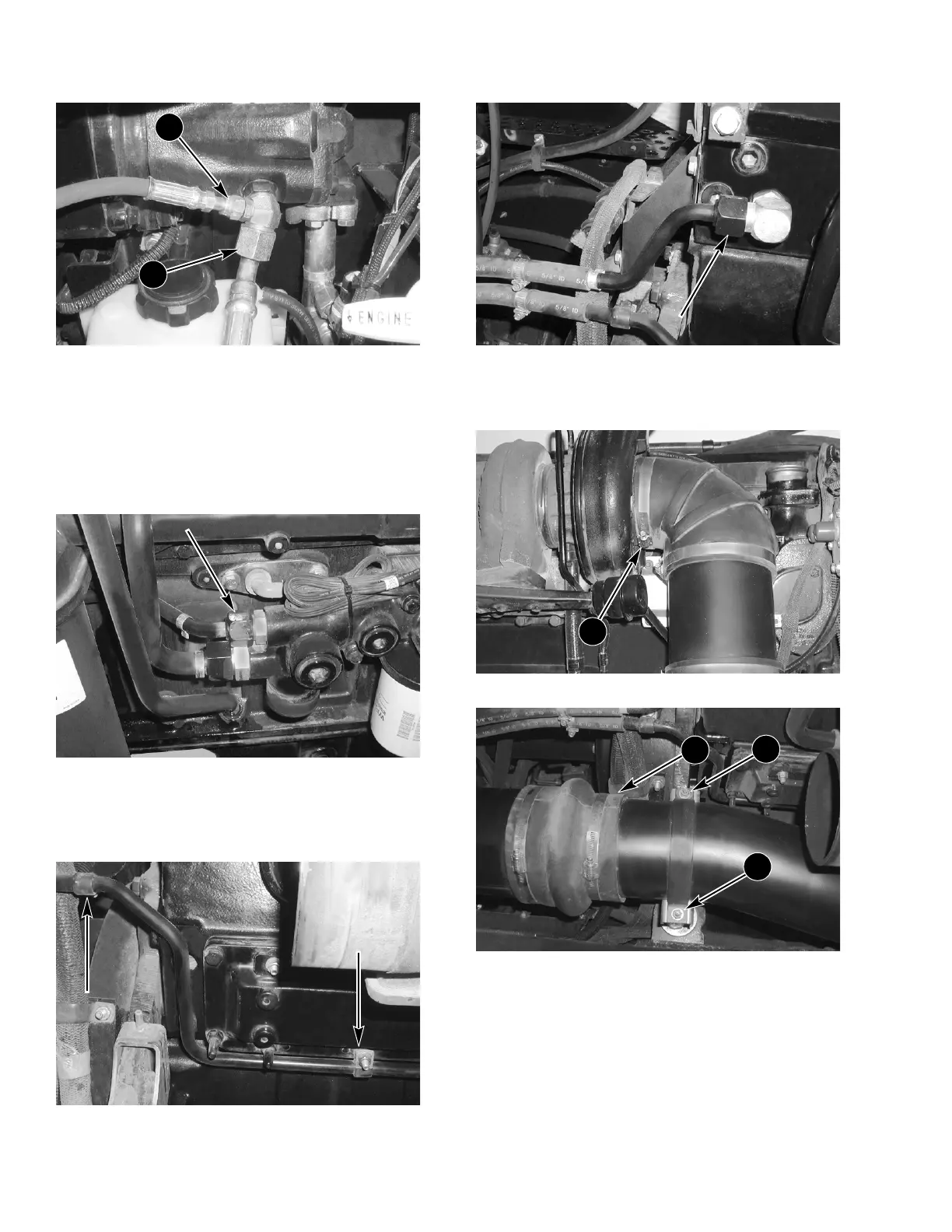

STEP 66
MD01N074
425 AND 450 MODEL TRACTORS ONLY
Lubricate and install new O-rings on the pump case
drain port adapter. Install and tighten the motor case
drain hose (1) and the pump case drain return hose
(2).
STEP 67
MD02A221
Install the cab heater return hose and tube on the
filter head. Do not tighten the tube end nut.
STEP 68
MD02A220
Install the two clamps and tighten the tube end nut.
STEP 69
MD02A219
Install and tighten the heater supply hose and tube.
STEP 70
MD02A217
MD02A216
Install the air tube and elbow assembly on the turbo
inlet (1) and tube coupler (2). Install the clamp (3).
Tighten the two coupler clamps to specifications.
2
1
1
3
3
2
