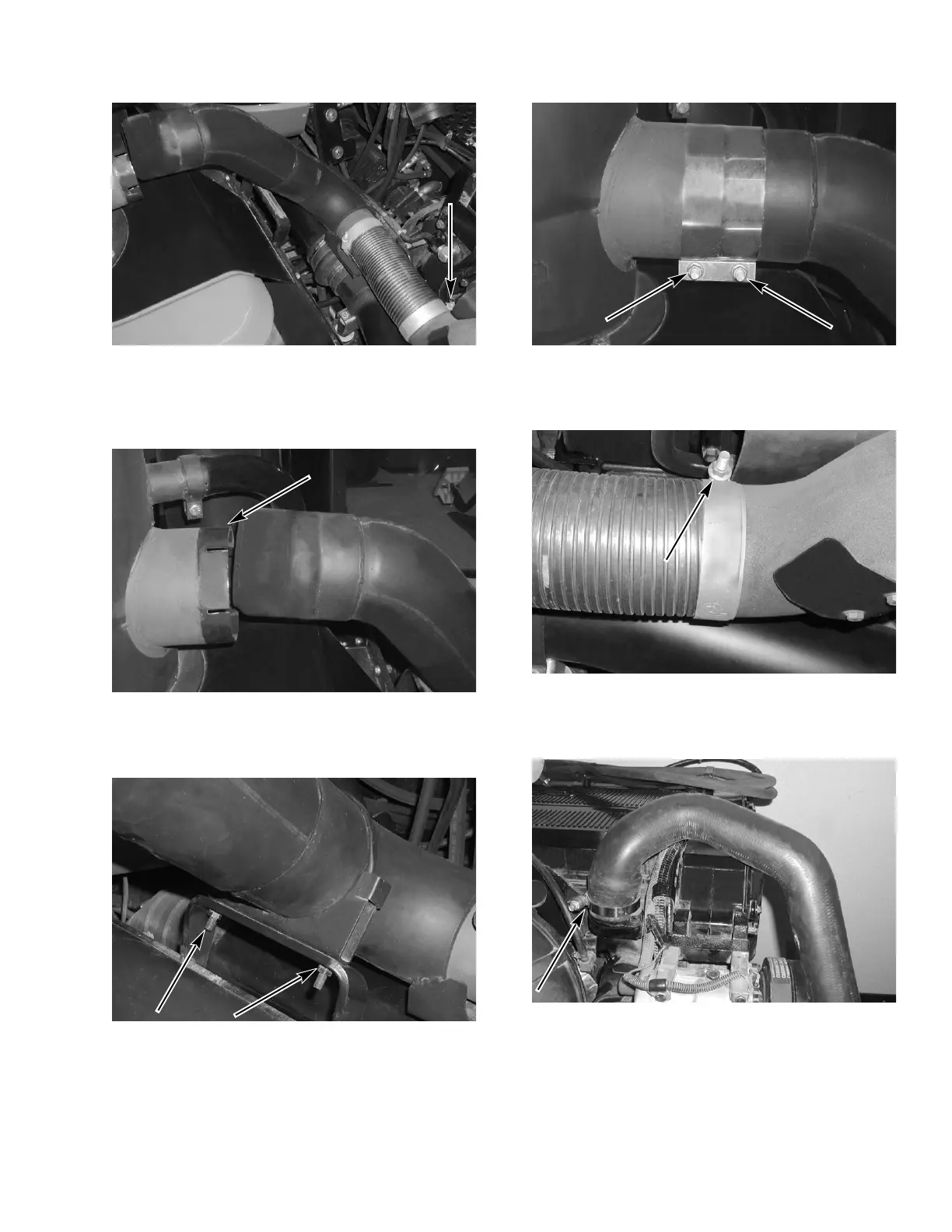

STEP 71
MD02A214
Install the flex coupler of the exhaust pipe assembly
on the turbo exhaust outlet. Do not tighten the clamp.
STEP 72
MD02A215
Install the exhaust pipe in the muffler.
STEP 73
MD02A253
Install the U-bolt clamp on the exhaust pipe and
tighten to specifications.
STEP 74
MD02A211
Install the band clamp and tighten to specifications.
STEP 75
MD02A212
Tighten the clamp on the flex tube to specifications.
STEP 76
MD02A208
Install the upper radiator hose. Do not tighten the
clamp until the radiator is installed.
