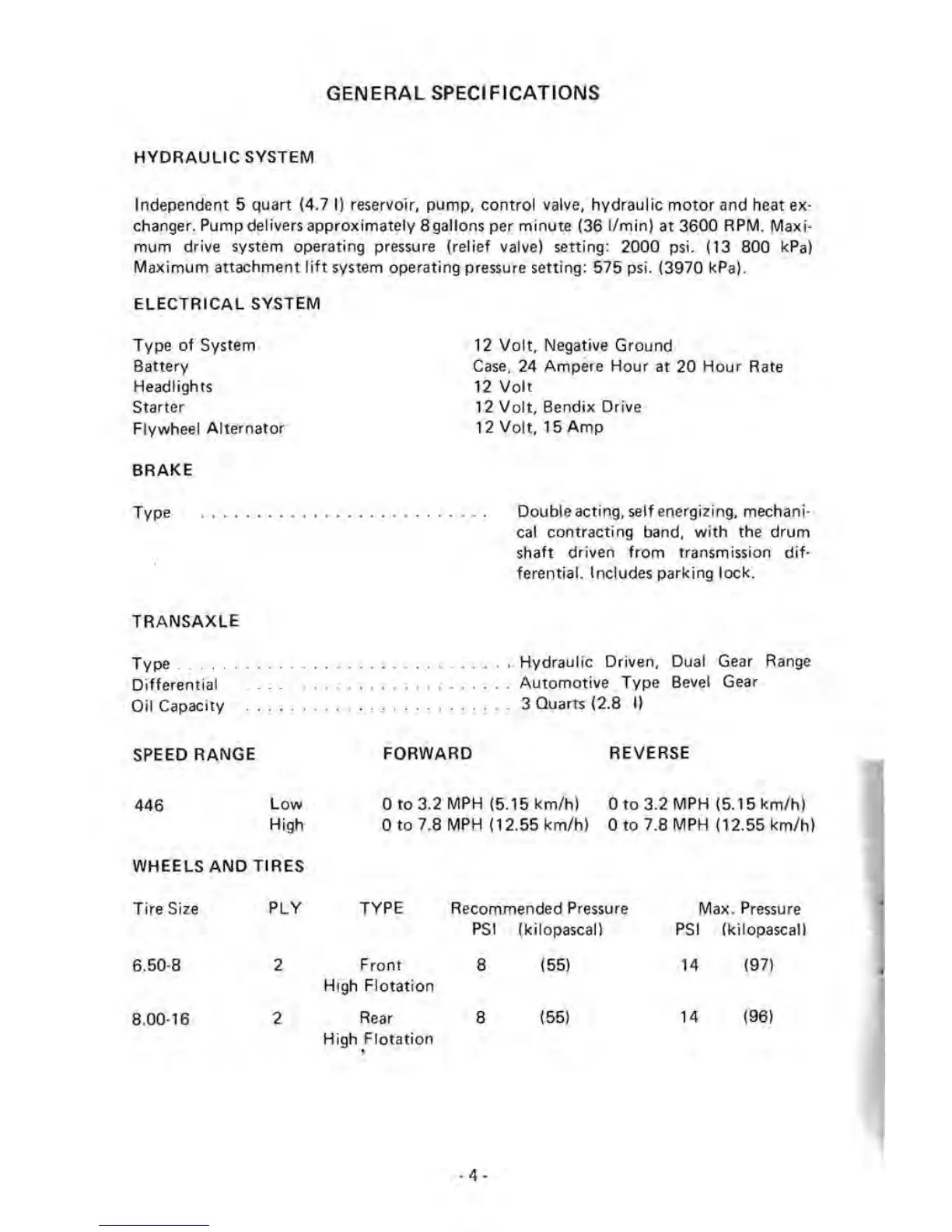

GENERAL
SPECIFICATIONS
HYDRAULIC
SYSTEM
Independent 5
quart
(4.7
I)
reservoir,
pump,
control
valve,
hydraulic
motor
and heat ex-
changer. Pump delivers
approximately
8 gallons per
minute
(36
limin)
at
3600
R PM. Max
i-
mum
drive system operating pressure (relief valve) setting:
2000
psi
. (13
800
kPa)
Maximum
attachment
lift
system operating pressure setting: 575 psi.
(3970
kPa) .
ELECTRICAL
SYSTEM
Type
of
System 12
Volt,
Negative
Ground
Battery
Case,
24 Ampere
Hour
at
20
Hour
Rate
Headlights 12
Volt
Starter
12
Volt,
Bendix Drive
Flywheel
Alternator
12
Volt,
15
Amp
BRAKE
Type
Double acting, self energizing, mechani-
cal
contracting
band,
with
the
drum
shaft driven
from
transmission
dif
-
ferential. Includes parking lock.
TRANSAXLE
Type
. .
...
.........
.
..
. .
...
Hydraulic
Driven, Dual Gear Range
Differential
. . . . . . . . . . . . . .
Automotive
Type
Bevel Gear
Oil Capacity
..
..... .....
.
...
....
3 Quarts (2.8
II
SPEED
RANGE
FORWARD
REVERSE
Low
o
to
3.2 MPH (5.
15
km/h)
o
to
3.2 MPH
(5.15
km/h)
High o
to
7.8 MPH
(12.55
km/h)
o
to
7.8 MPH (12.55
km/h)
WHEELS
AND
TIRES
Tire Size
PLY
TYPE
Recommended Pressure
PSI
(kilopascal)
Max. Pressure
PSI
(kilopascal)
6.50-8 2
Front
High
Flotation
8
(55)
14
(97)
8.00-16
2
Rear
High
.Flotation
8
(55)
14
(96)
