Case 446 - Overall Measurements

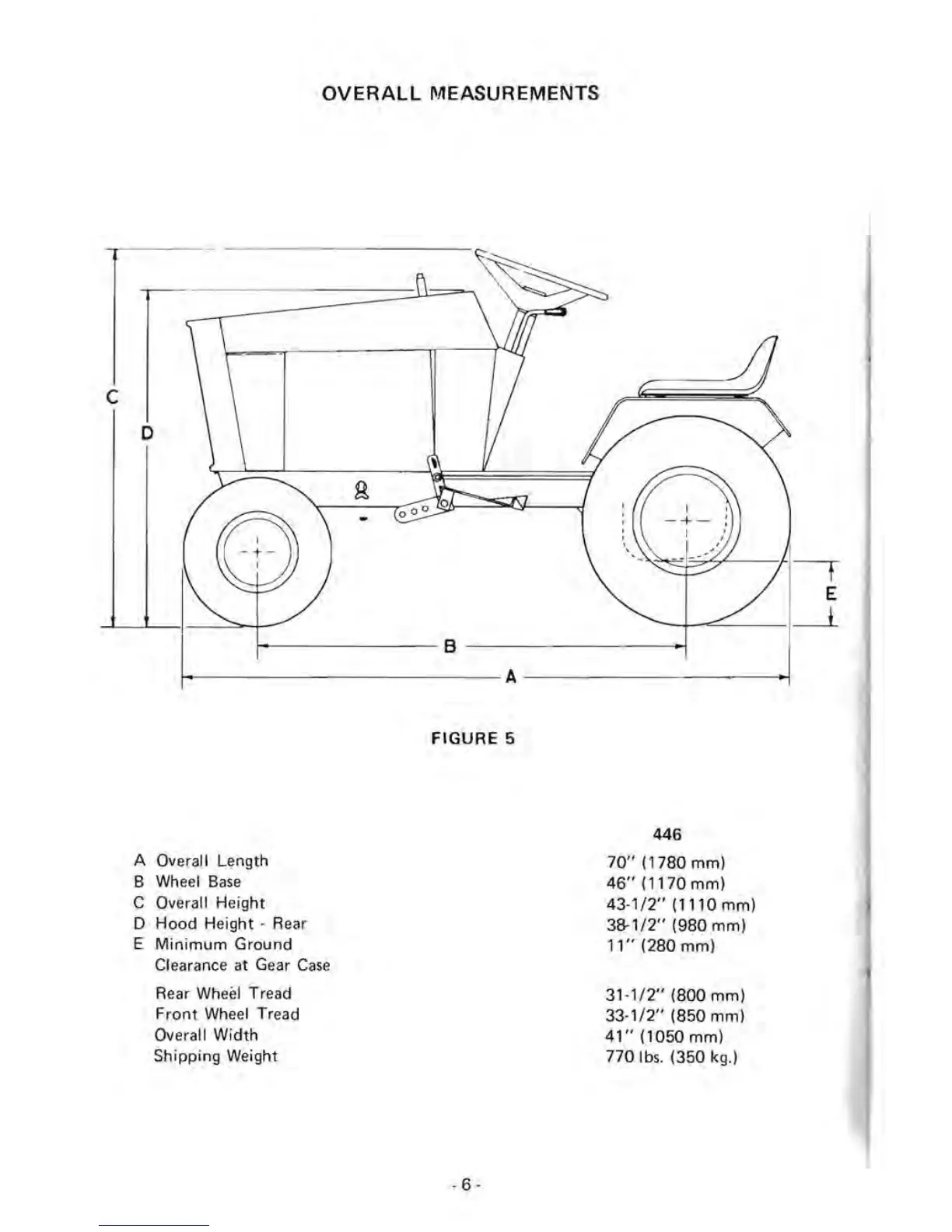

OVERALL MEASUREMENTS
c
D
FIGURE 5
446
A
Overall Length
70" (1780 mm)
B Wheel
Base
46" (1170 mm)
C Overall Height
43-1/2" (1110mm)
D
Hood Height - Rear
38-1/2" (980 mm)
E
Minimum Ground
11" (280 mm)
Clearance at Gear
Case
Rear Wheel Tread
31-112" (800 mm)
Front Wheel Tread
33-1/2" (850 mm)
Overall Width
41" (1050 mm)
Shipping Weight
770
Ibs. (350 kg.)
- 6-
