ELECTRICAL SYSTEM
HEADLIGHTS
, ~ I

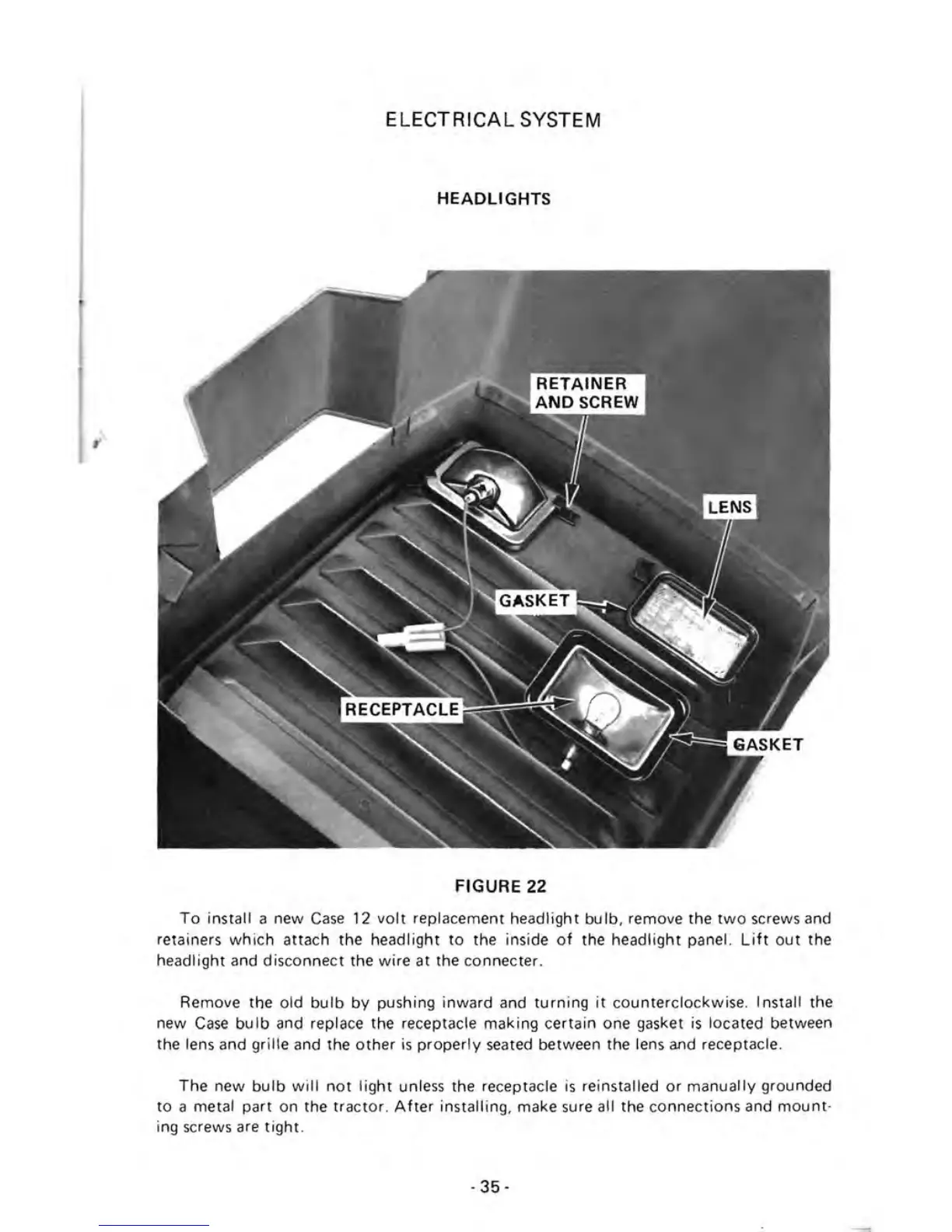

FIGURE 22
To install a new Case 12 volt replacement headlight bulb, remove the two screws and
retainers
which attach the headlight to the inside of the headlight panel. Lift out the
headlight and disconnect the wire at the connecter .
Remove the
old bulb by pushing inward and turning it counterclockwise. Install the
new
Case bulb and replace the receptacle making certain one gasket is located between
the lens and
grille and the other is properly seated between the lens and receptacle.
The new bulb will not light unless the receptacle is reinstalled or manually grounded
to a metal part on the tractor. After installing, make sure all the connections and mount·
ing screws are tight.
- 35-
