CORRECT USE OF TORQUE WRENCHES
TORQUE
WRENCHES
PDG0315
CORRECT USE

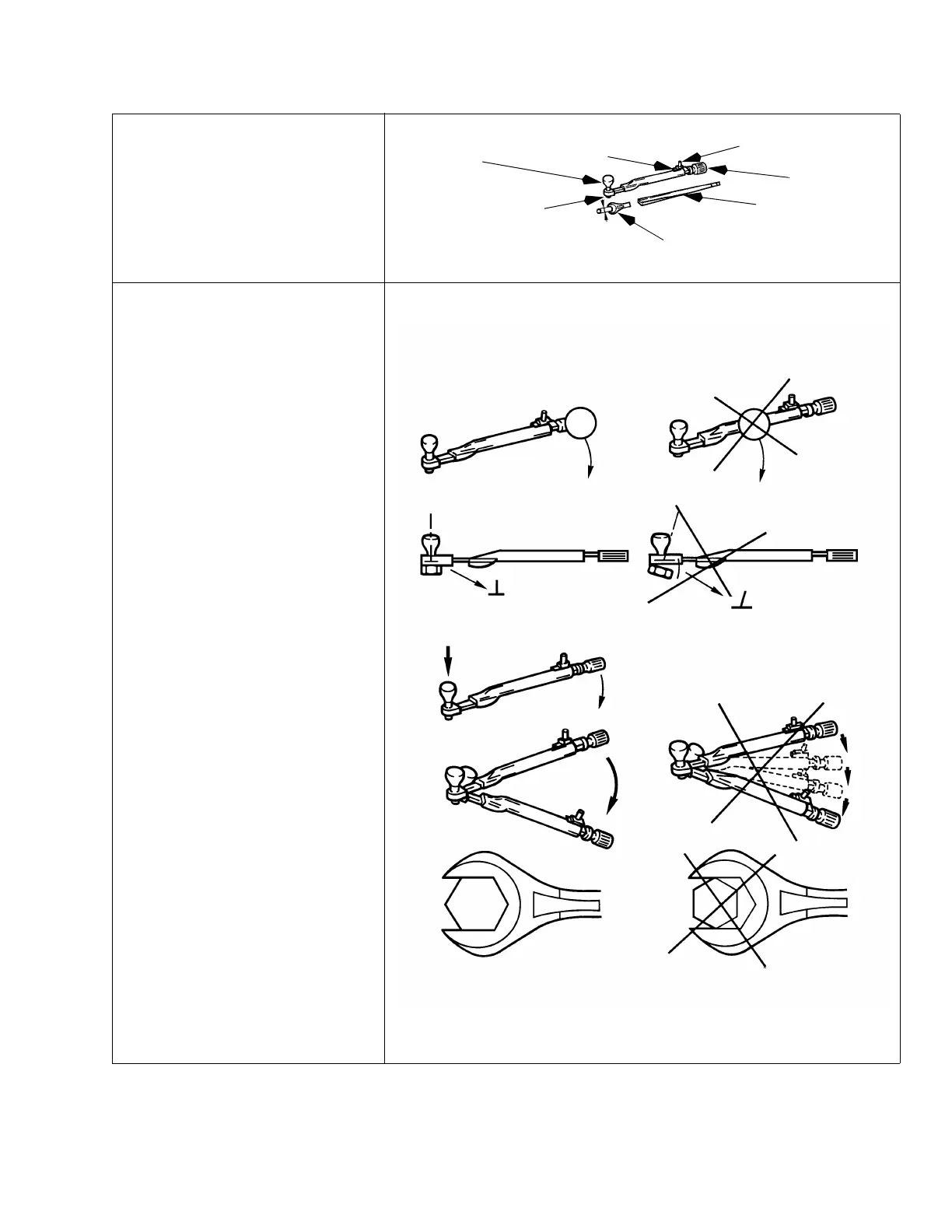

a - Hold the wrench by the handle
provided.
b - When tightening, always keep the
wrench perpendicular to the screw.
c - Keep one hand on the leverage
point handle on the wrench.
d - Tighten progressively in one
movement.
e - Position a correctly dimensioned
socket or open-ended wrench on the
flats of the screw head.
PDG0316
Open-ended wrench
Manipulator
Leverage point handle
1/2” square insert
Setting pointer
Adjusting lever
Extension SJ214, for doubling
capacity of S203 wrenches
NO
NO
HAND
NO
