Case 788 - Plastic Plug and Cap Reference Chart

1001-11
Cre 7-56942GB Issued 11-99

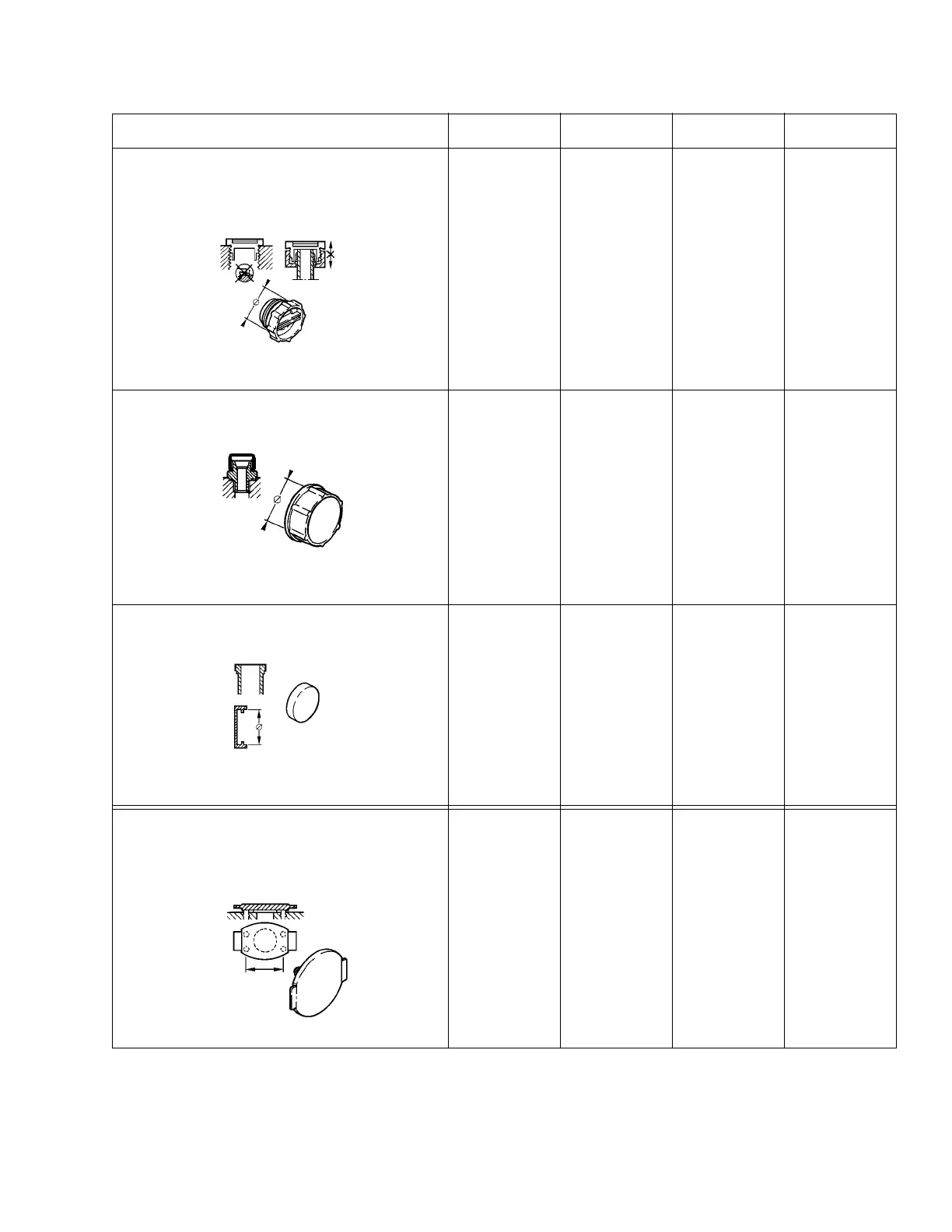

PLASTIC PLUG AND CAP REFERENCE CHART
NP = Nominal pressure
ND = Nominal diameter
Dia. x pas Part number Dia. x pas Part number
Tapped orifices and connectors with tighten-
ing nuts = screw-type plugs
PDG0324
M10 x 1.5
M12 x 1.5
M14 x 1.5
M16 x 1.5
M18 x 1.5
F3237416
G3237417
H3237418
J3237419
K3237420
M20 x 1.5
M22 x 1.5
M24 x 1.5
M27 x 2
L3237421
M3237422
N3237423
Q3237448
Unions = Screw-type plugs
PDG0325
M12 x 1.5
M14 x 1.5
M16 x 1.5
M18 x 1.5
X3237409
Z3237410
A3237411
B3237412
M20 x 1.5
M22 x 1.5
M30 x 1.5
C3237413
D3237414
E3237415
S.A.E tube or hose collars = external plugs
PDG0326
NP 250 bar
30.2
38.1
44.5
50.8
60.4
J2537460
K2537461
L2537462
M2537463
N2537464
NP 400 bar
31.8
41.3
47.6
54
63.6
P2537465
Q2537466
R2537467
S2537468
T2537469
S.A.E orifices = caps for installation into
tapped fitting orifices
PDG0327
NP 250 bar
L =
38.1
47.65
52.35
58.07
69.85
A2340480
B2340481
C2340482
D2340483
E2340484
NP 400 bar
L =
40.5
50.8
57.15
66.7
79.4
K1640415
R1640421
S1640422
T1640423
Z1640479
