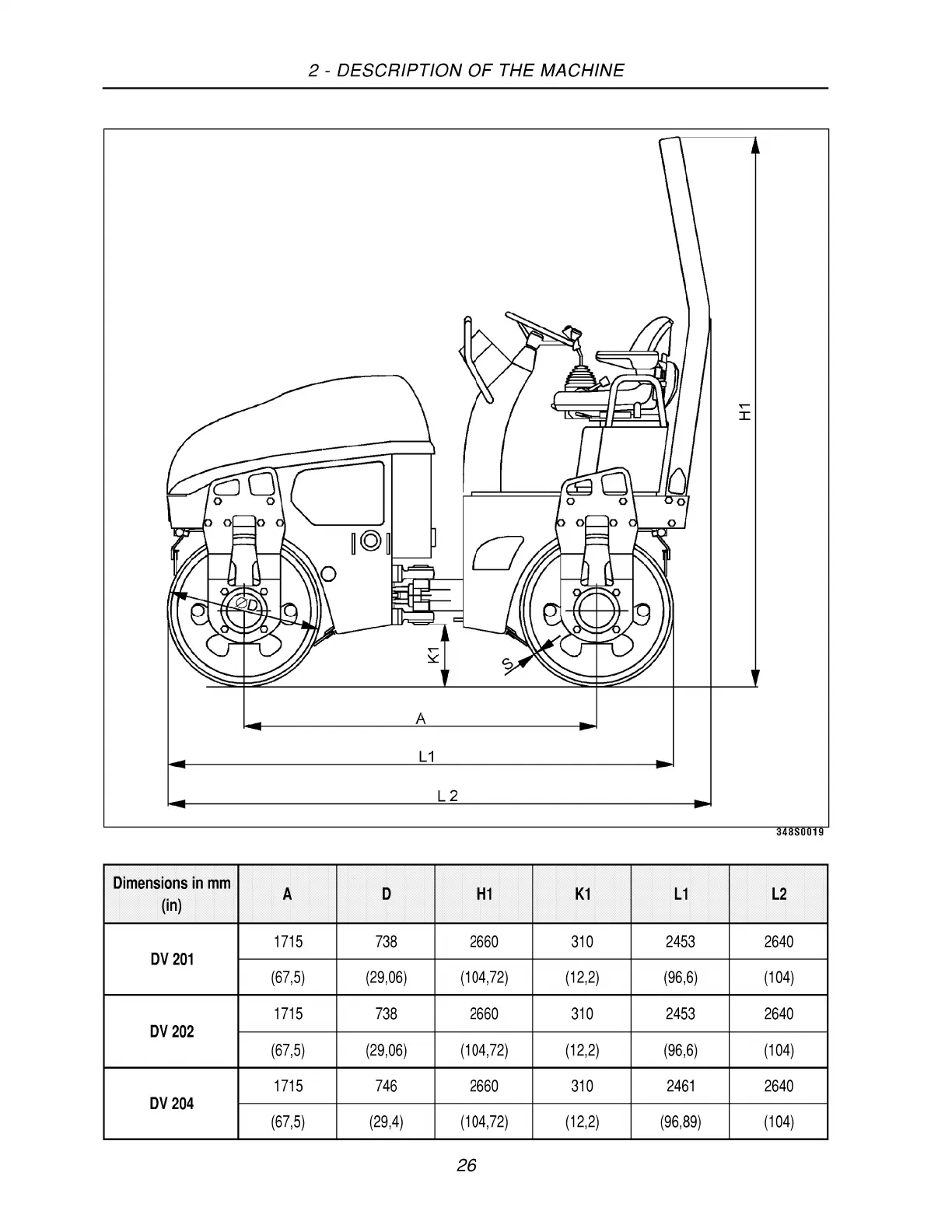

2 - DESCRIPTION OF THE MACHINE
.,....
I
A
L1
L2
34880019
Dimensions In mm
A D H1 K1 L1 L2
(in)
1715 738 2660
310
2453 2640
DV201
(67,5) (29,06) (104,72) (12,2)
(96,6)
(104)
1715 738 2660
310
2453 2640
DV202
(67,5) (29,06) (104,72) (12,2)
(96,6)
(104)
1715 746 2660 310 2461 2640
DV204
(67,5) (29,4) (104,72) (12,2) (96,89) (104)
