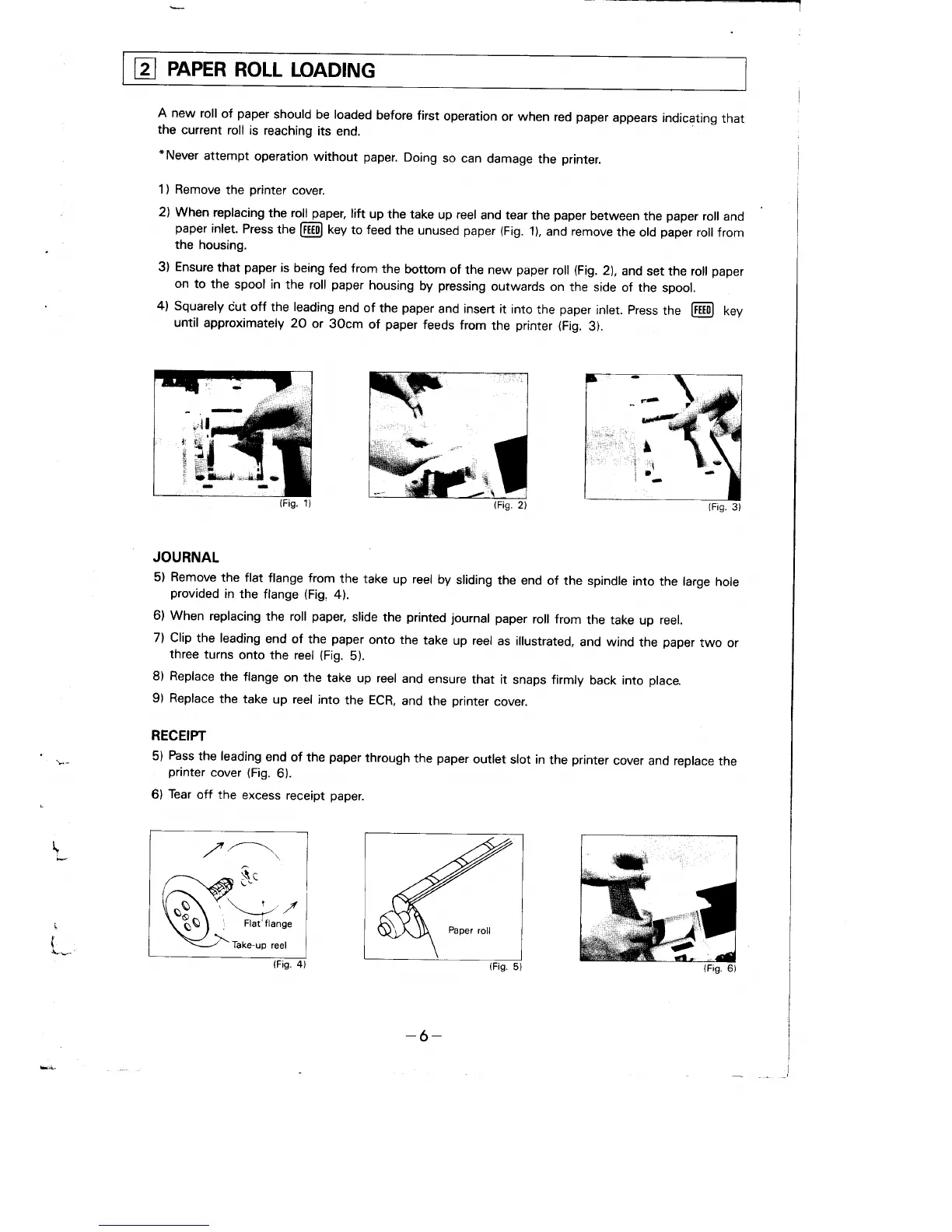

Casio 116ER - Paper Roll Loading Procedures; Loading Journal Paper; Loading Receipt Paper

@
eneeR
RoLL
LoADING
A new
roll
of
paper
should be loaded
before first
operation
or when
red
paper
appears indicating
that
the
current
roll is
reaching
its
end.
*Never
attempt
operation
without
paper.
Doing
so
can
damage
the
printer.
1) Remove
the
printer
cover.
2) When
replacing
the roll
paper,
lift
up
the take
up reel
and tear
the
paper
between
the
paper
roll
and
paper
inlet.
Press
the
Fiiill
tey
to feed
the unused
paper
(Fig.
1),
and remove
the old
paper
roll
from
the housing.
3)
Ensure
that
paper
is
being fed
from
the
bottom
of the new
paper
roll
(Fig.
2),
and
set the roll
paper
on
to the
spool in
the roll
paper
housing
by
pressing
outwards
on the side
of the
spool.
4)
Squarely
iut off
the
leading
end
of the
paper
and insert it
into
the
paper
inlet.
press
the
[ETll
6gy
until
approximately
20
or
30cm
of
paper
feeds
from
the
printer
(Fig.
3).
..ji:,:.
iS-
(Fis.
2)
JOURNAL
5)
Remove
the flat
flange from
the take
up reel
by
sliding
the
end
of the spindle
into
the large
hole
provided
in
the flange
(Fig,
4).
6) When
replacing
the
roll
paper,
slide
the
printed journal
paper
roll from
the take
up
reel.
7) Clip
the leading
end
of the
paper
onto the
take
up reel
as illustrated,
and wind
the
paper
two
or
three
turns
onto the reel
(Fig.
5).
8) Replace
the flange
on the
take
up reel
and
ensure
that it
snaps firmly
back into
place.
9) Replace
the take
up
reel
into
the ECR,
and
the
printer
cover.
RECEIPT
5)
Fbss
the leading
end
of the
paper
through
the
paper
outlet
slot in
the
printer
cover
and replace
the
printer
cover
(Fig.
6).
6)
Tear
off the
excess
receipt
paper.
\
(Fis.
5)
ttx
'e
(Fis.
6)
!
{
"lfl..
{&
I
I
:
t
(Fis.
1)
(Fis.
4)
-6-
