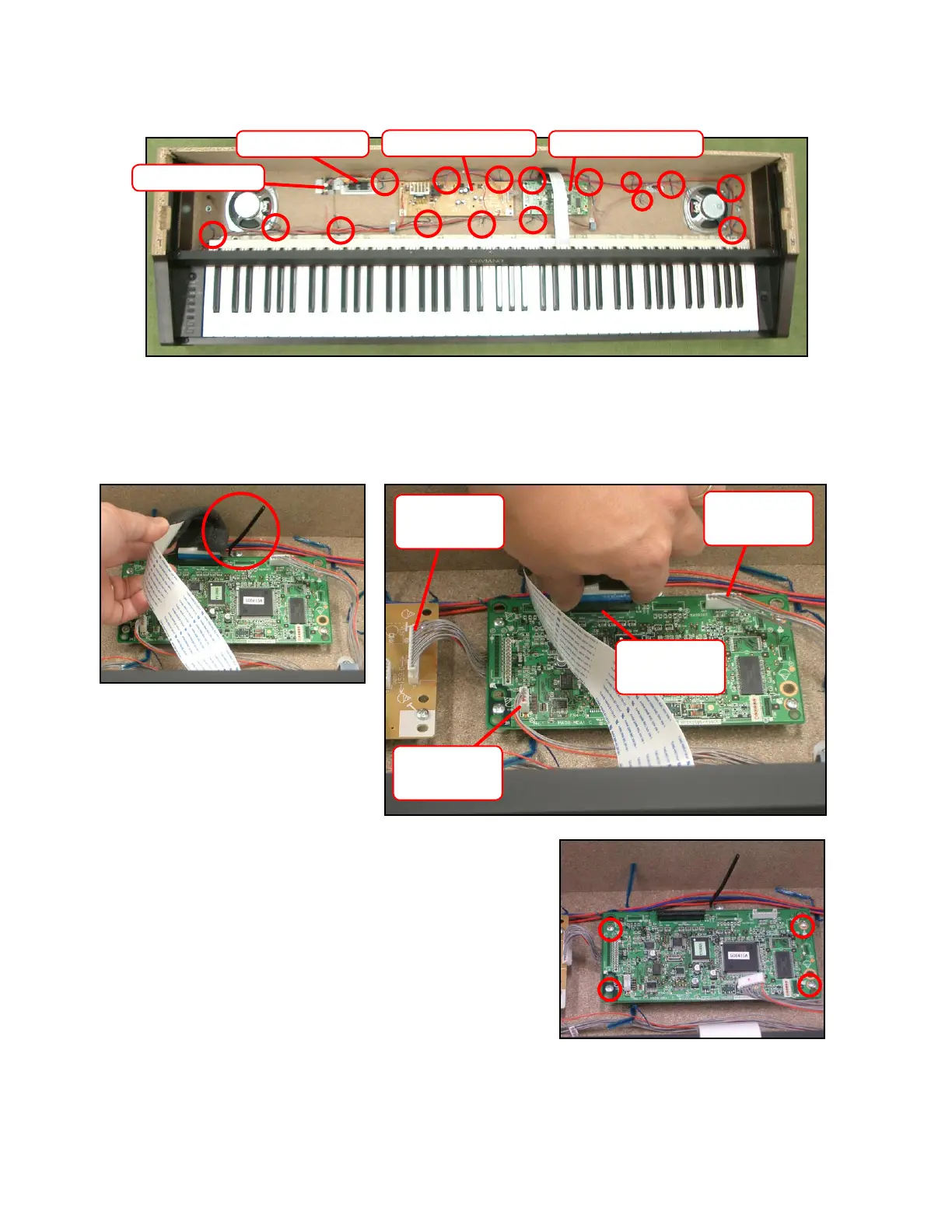

8. Removing the M333-MDA1 PCB
8-1. Remove the twist ties that hold the FPC cables in place.
8-2. Remove the 3 connectors.
8-3. Remove the connector, release the lock and then remove the FPC.
7. Remove the twist ties that hold the 16 cables in place.
M333-PSA1 PCB
M333-MDA1 PCBM333-CNA3 PCB
M333-CNA5 PCB
Connector
(M333-PSA1)
Connector
(M333-CNA1)
Connector
(Pedal)
FPC
(Keyboard)
8-4. Remove 4 screws and the M333-MDA1 PCB.
