Casio AP-200

– 13 –

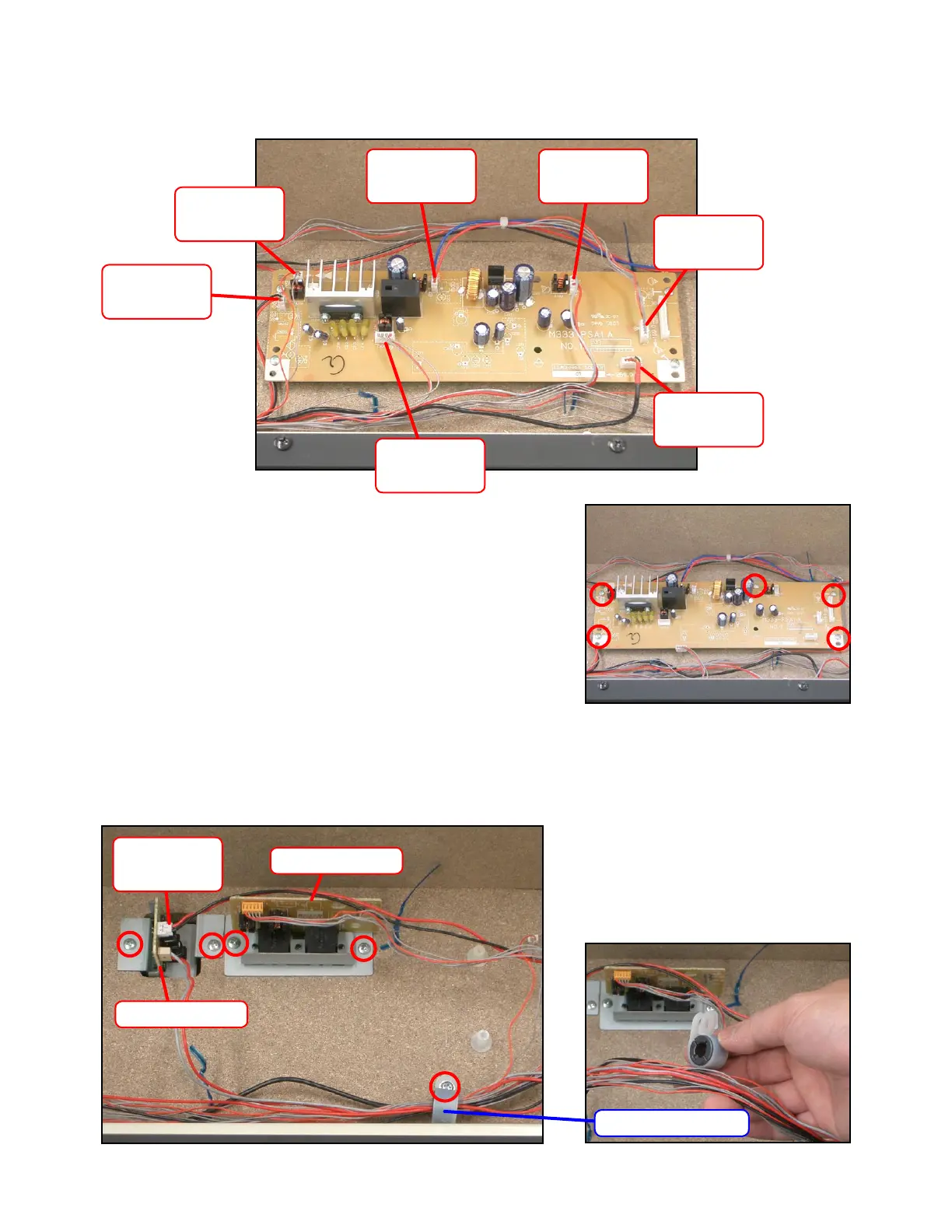

9. Removing the M333-PSA1 PCB
9-1. Remove the 7 connectors.
Connector
(M333-CNA3)
Connector
(M333-CNA5)
Connector
(M333-CNA1)
Connector
(Speaker(R))
Connector
(Speaker(L))
Connector
(M333-CNA4)
Connector
(M333-CNA2)
Connector
(Power SW)
Ferrite core
M333-CNA3 PCB
M333-CNA5 PCB
9-2. Remove 5 screws and the M333-PSA1 PCB.
10. Removing the M333-CNA3 PCB and M333-CNA5 PCB
10-1. Remove the screw and the Ferrite core.
10-2. Remove the connector.
10-3. Remove 2 screws and the M333-CNA5 PCB and bracket.
10-4. Remove 2 screws and the M333-CNA3 PCB and bracket.
