Casio AP-200

– 16 –

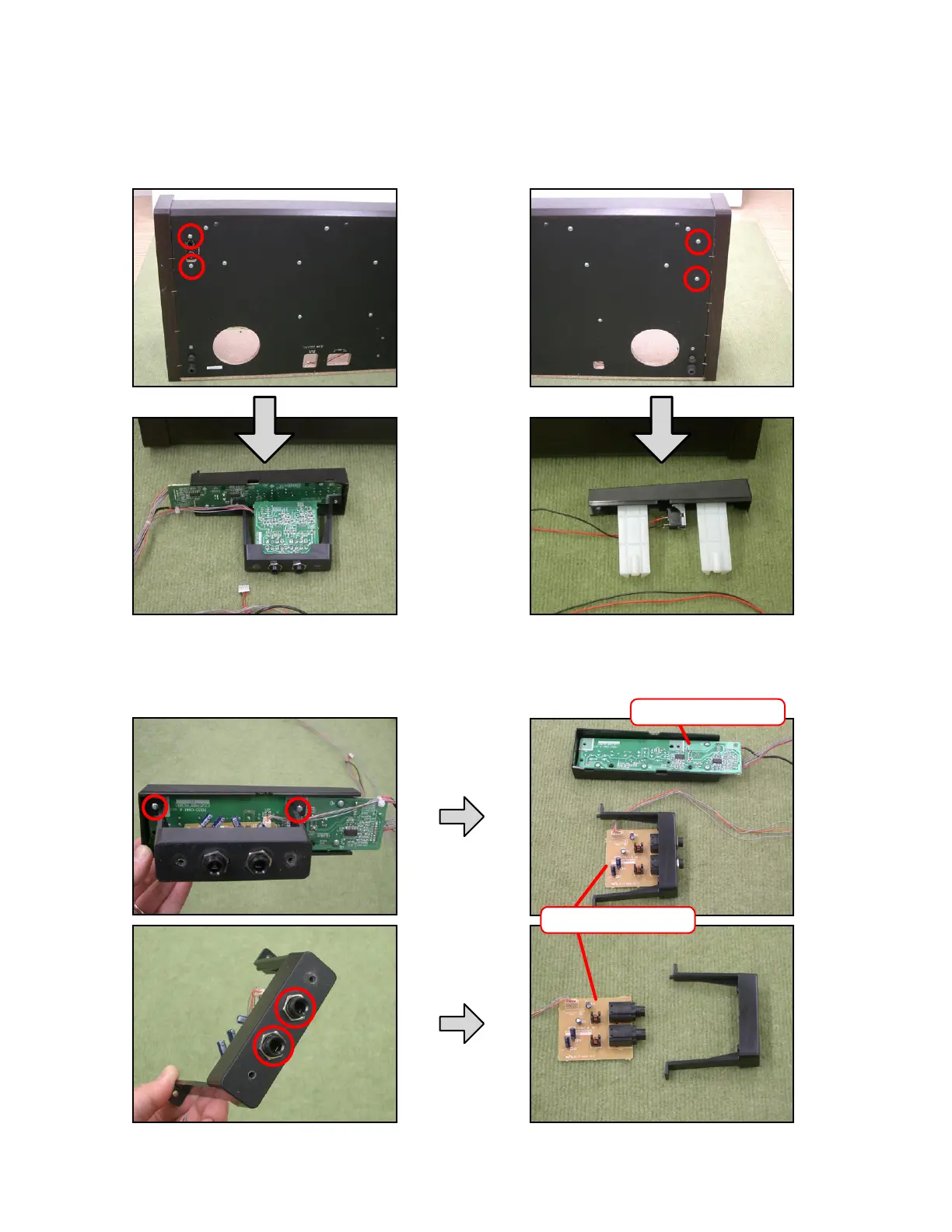

15. Removing the Side block
15-1. Remove 4 screws (left and right).
15-2. Remove the side units (left and right).
<The left side> <The right side>
16. Disassembling the left side unit (M333-CNA1 PCB, M333-CNA2 PCB)
16-1. Remove 2 screws and the M333-CNA2 unit.
16-2. Remove 2 nuts and the M333-CNA2 PCB.
M333-CNA2 PCB
M333-CNA1 PCB
