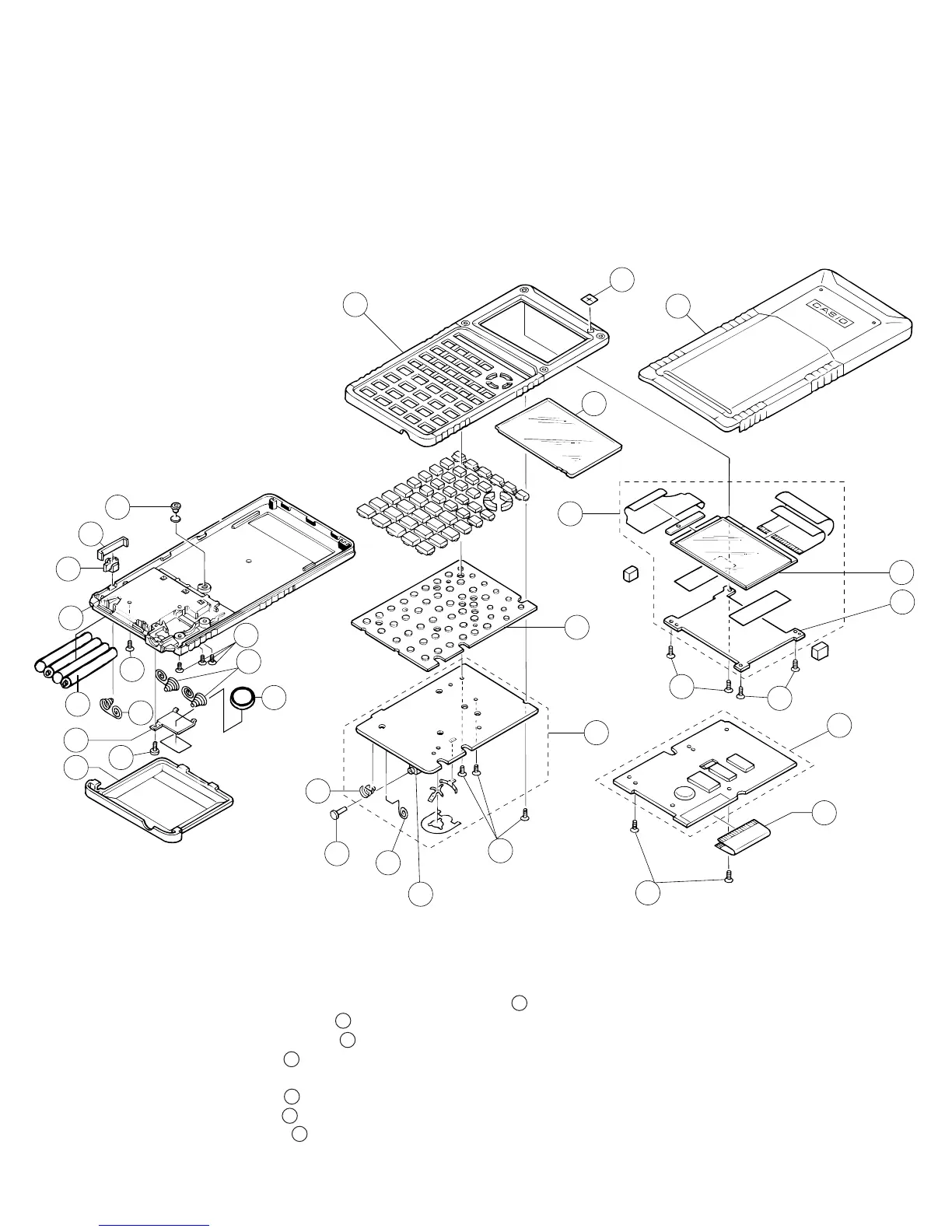

Casio CFX-9850G PLUS - 13 Exploded View

10
4
5
9
13
11
26
15
27
33
30
32
28
14
8
12
31
1
2
3
16
34
S1
S2
S4
S3
S3
S5
B2
S2
B1
29
— 29 —
1. Remove the hard case C.
2. Remove the battery cover R.
3. Remove the battery holder D, then loosen the screw .
4. Remove the lithium battery .
5. Remove four main batteries .
6. Loosen four screws .
7. Open the lower case W using any opener.
8. Loosen four screws .
9. Loosen two screws .
10. Loosen three screws .
S1
S2
S3
S4
S5
B1
B2
DISASSEMBLY
13. EXPLODED VIEW (1/2)
