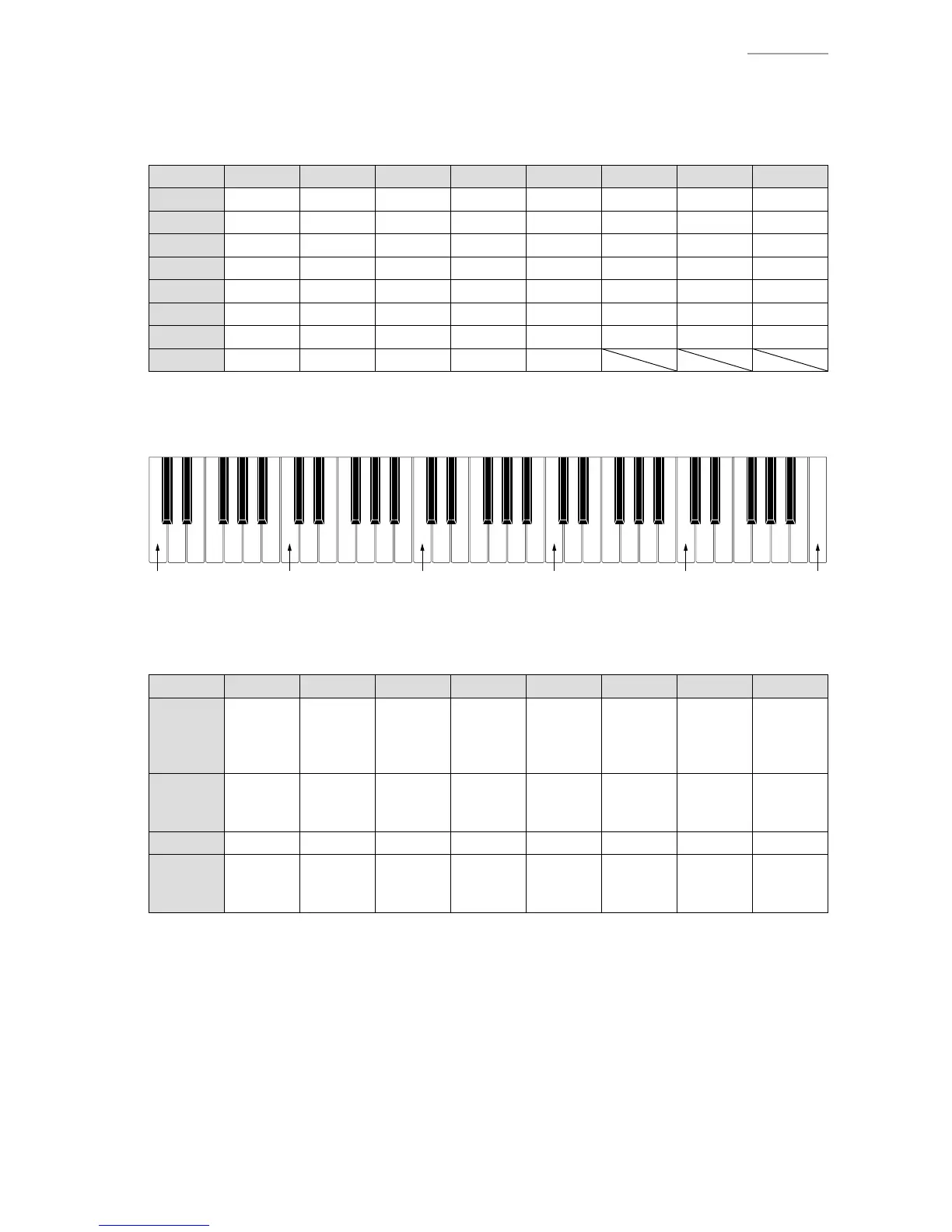

CIRCUIT DESCRIPTION

KEY MATRIX
KC0 KC1 KC2 KC3 KC4 KC5 KC6 KC7
KI0 C2 C2# D2 D2# E2 F2 F2# G2
KI1 G2# A2 A2# B2 C3 C3# D3 D3#
KI2 E3 F3 F3# G3 G3# A3 A3# B3
KI3 C4 C4# D4 D4# E4 F4 F4# G4
KI4 G4# A4 A4# B4 C5 C5# D5 D5#
KI5 E5 F5 F5# G5 G5# A5 A5# B5
KI6 C6 C6# D6 D6# E6 F6 F6# G6
KI7 G6# A6 A6# B6 C7

NOMENCLATURE OF KEYS
C2
C3
C4
C5
C6
C7

BUTTON MATRIX
KC0 KC1 KC2 KC3 KC4 KC5 KC6 KC7
KI1
SONG
BANK
TONE
TEMPO
q
SET SELECT,
MUSIC
CHALLENGE
VOICE
PAD4,
NEXT
START/
STOP,
PLAY/
STOP
METRONOME,
$
BEAT
REPEAT,
INTRO
KI2
RHYTHM,
ONE TOUCH
PRESET
$
TEMPO
w
VOICE
PAD2,
WATCH
VOICE
PAD3,
REMEMBER
VOICE
PAD1,
LISTEN
NORMAL/
FILL-IN,
REW
FUNCTION
VAR./
FILL-IN,
FF
FI9 0 1 2 3 4 5 6 -
FI10 7 8 9 +
VOICE
PAD5,
AUTO
SYNCHRO/
ENDING,
PAUSE
ACCOMP,
$
CHORDS,
PART SELECT
SAMPLING

Casio CTK-2200 Specifications

General

Keyboard number of keys	61
MIDI-keyboard number of keys	- keys
Product color	Black, Grey
Maximum polyphony (notes)	48
Music memory capacity (songs)	110
Interface	USB
Power requirements	9V
Power source type	AC

Weight and Dimensions

Depth	307 mm
Width	946 mm
Height	92 mm
Weight	3400 g
