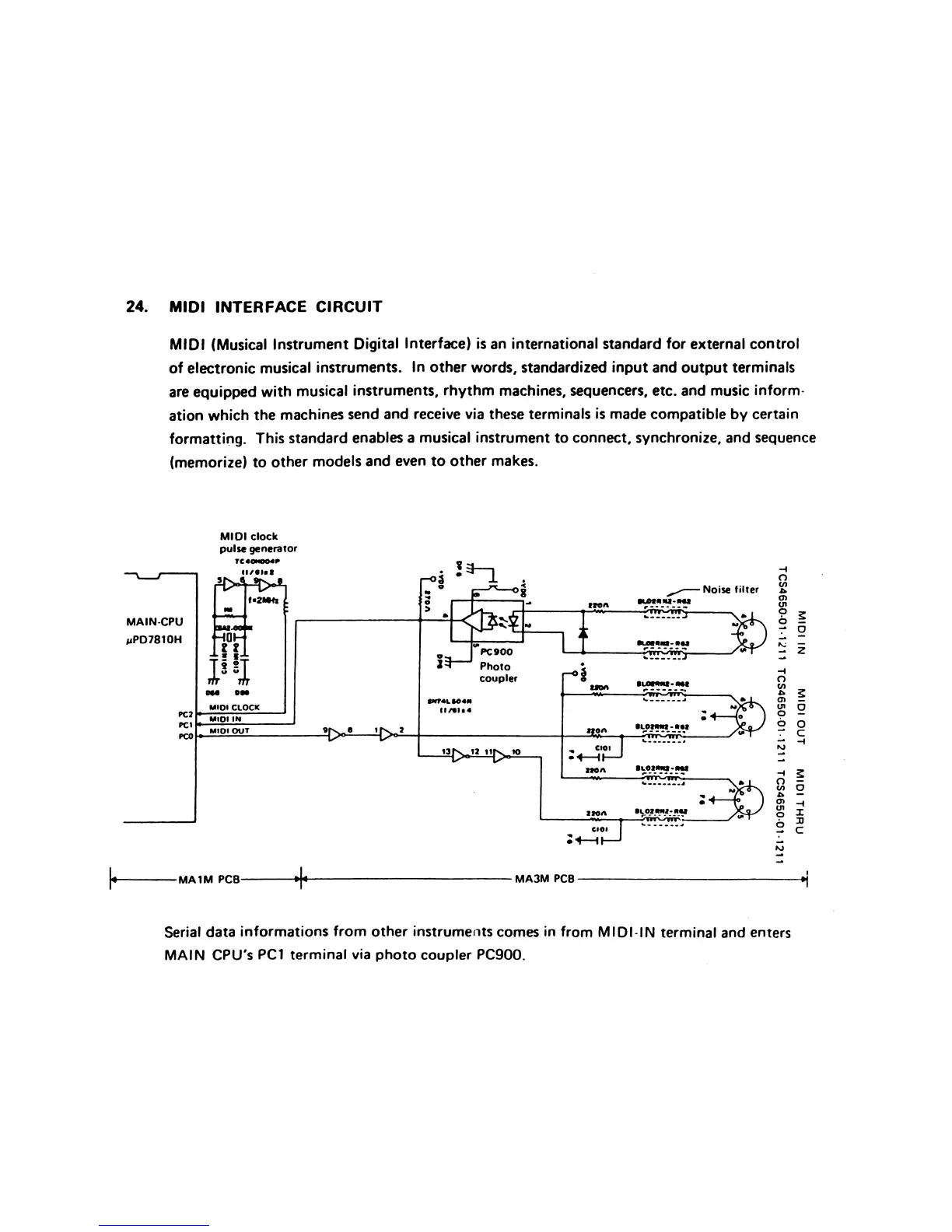

24.
MIDI INTERFACE
CIRCUIT
MIDI (Musical
Instrument
Digital
Interface)
is
an international standard for
external
control
of
electronic
musical
instruments.
In
other
words,
standardized
input and
output
terminals
are
equipped
with
musical
instruments,
rhythm
machines, sequencers, etc. and music
inform-
ation
which
the
machines
send
and
receive via
these
terminals
is made
compatible
by
certain
formatting.
This
standard
enables a
musical
instrument to
connect, synchronize,
and
sequence
(memorize)
to
other
models
and
even
to
other
makes.
MIDI
clock
pulse
generator
TC
ll/«lat
MAIN-CPU
*iPD7810H
-MA1M
PCB-
MA3M PCB
Serial
data
informations
from
other instruments
comes
in
from
MIDI-IN
terminal
and enters
MAIN
CPU's
PC1
terminal
via
coupler
PC900.
