Casio EX-843

V-R200 / VER.1
– 37 –

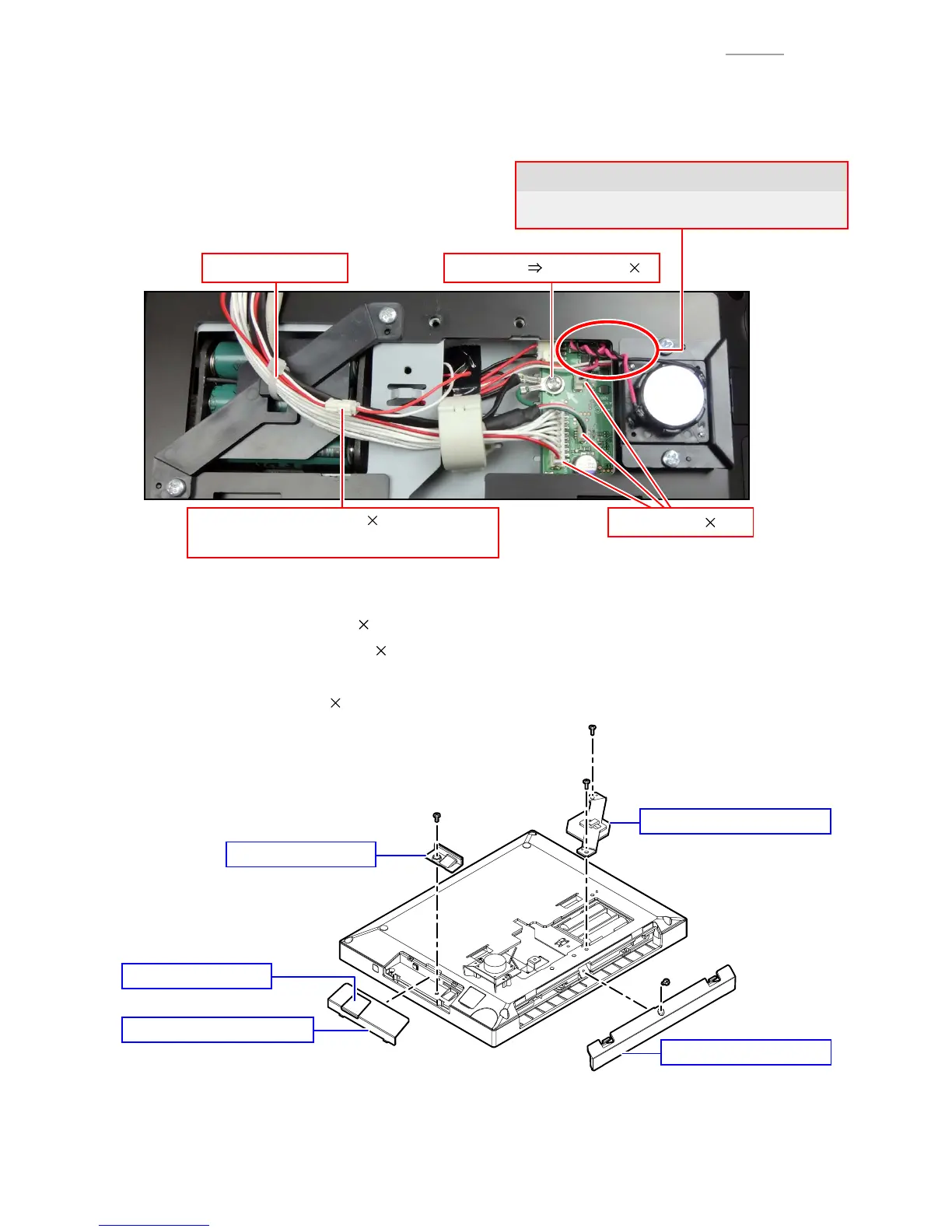

(3) Remove one cable tie.
(4) Undo one screw and remove two ground wires.
(5) Disconnect three connectors. (Four connectors for the model “V-R200-BD” (Dallas key built in model)).
Connector 3
Screw (S2) Ground wire 2Cable tie
Connector 1
V-R200-BD (Dallas key built in model) only
Note on reassembling
0
Put the lead wires of the speaker in the case.
A-2. Remove the following parts.
(1) COVER/SHEET (Screw (S8) 1)
(2) COVER/BATTERY (Screw (S3)
2)
(3) COVER/CONNECTOR (COVER-USB)
(4) COVER/SD (Screw (S8)
1)
(3)
(COVER/USB)
(4)
COVER/SD (S8)
(1)
COVER/SHEET (S8)
(2)
COVER/BATTERY (S3)
(3)
COVER/CONNECTOR
