Casio EX-843

– 69 –
V-R200 / VER.2

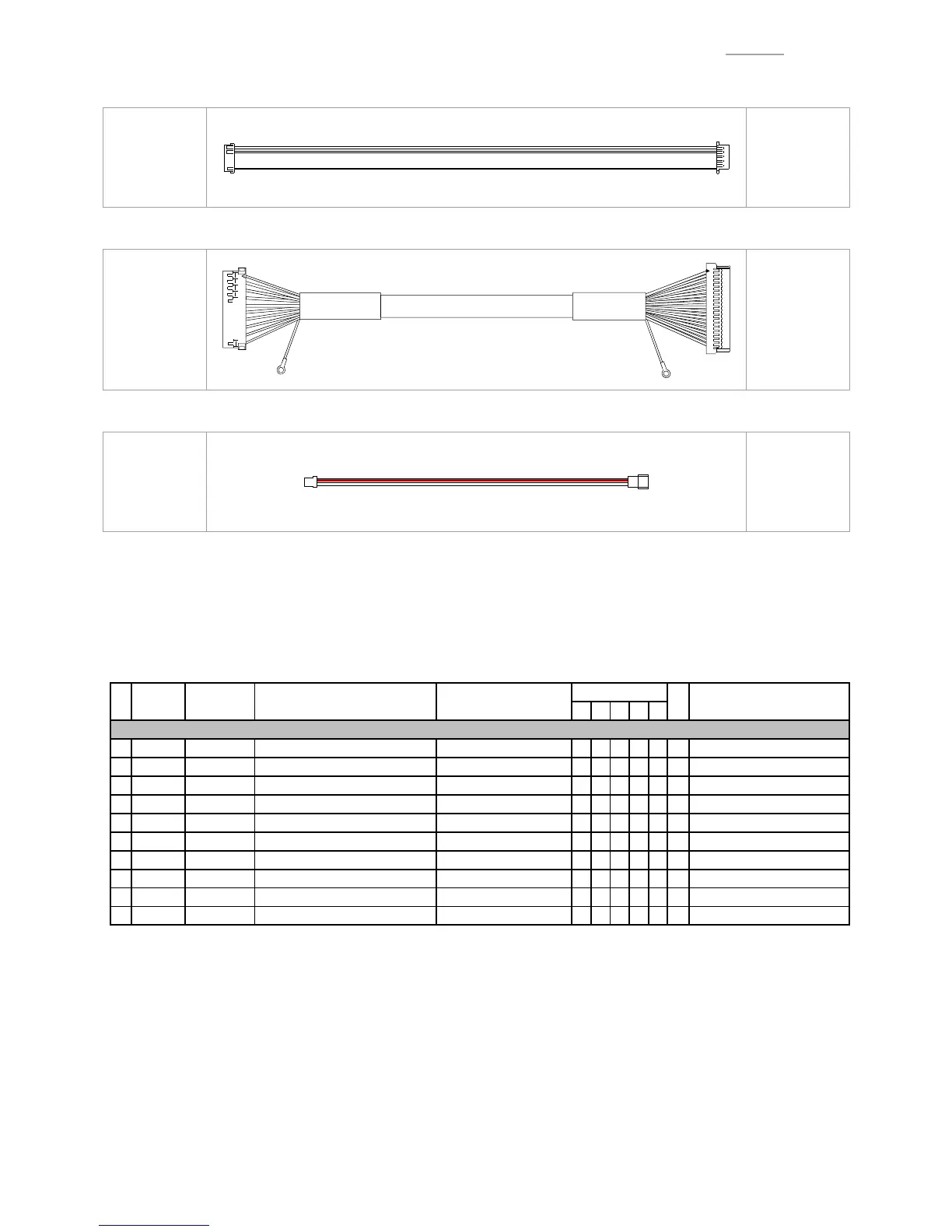

Item 47 (CABLE-SUBASSY/BL)
E843-1 PCB
CN5
LCD UNIT
Item 48 (CABLE-SUBASSY/LCD)
E843-1 PCB
CN2
LCD UNIT
Item 49 (CABLE-SUBASSY/DASR)
E843-IOC PCB
CN1
DALLAS ASSY
PARTS LIST
1: V-R200-BD 2: V-R200-BD-WE 3: V-R200-U 4: V-R200-U-WE 5: V-R200-C
12345
R RemarksN Item Code No. Parts Name Specification
Qt'y
CABLES
40 10476620 CABLE-SUBASSY/DRAWER RJE503863*001V04 11111CDRW1 (Length: 900 mm)
41 10412270 CABLE-SUBASSY/DRAWER RJE502394*002V02 11111CDRW2 (Length: 250 mm)
42 10406971 CABLE/FFC JOINER E441341-017V03 11111C
N 43 10544516 CABLE-SUBASSY/PRN RJE504534*001V01 11111C
N 44 10436476 CABLE-SUBASSY/FG RJE503921*001V01 11111C
N 45 10544517 CABLE-SUBASSY/USB RJE504532*001V01 11111C
N 46 10544518 CABLE-SUBASSY/IOC RJE504533*001V01 11111C
N 47 10413625 CABLE-SUBASSY/BL RJE503726*001V02 11111C
N 48 10409550 CABLE-SUBASSY/LCD RJE503739*001V01 11111C
N 49 10544515 CABLE-SUBASSY/DASR RJE504586*001V01 1 1 C
