F. Replacing the Printer

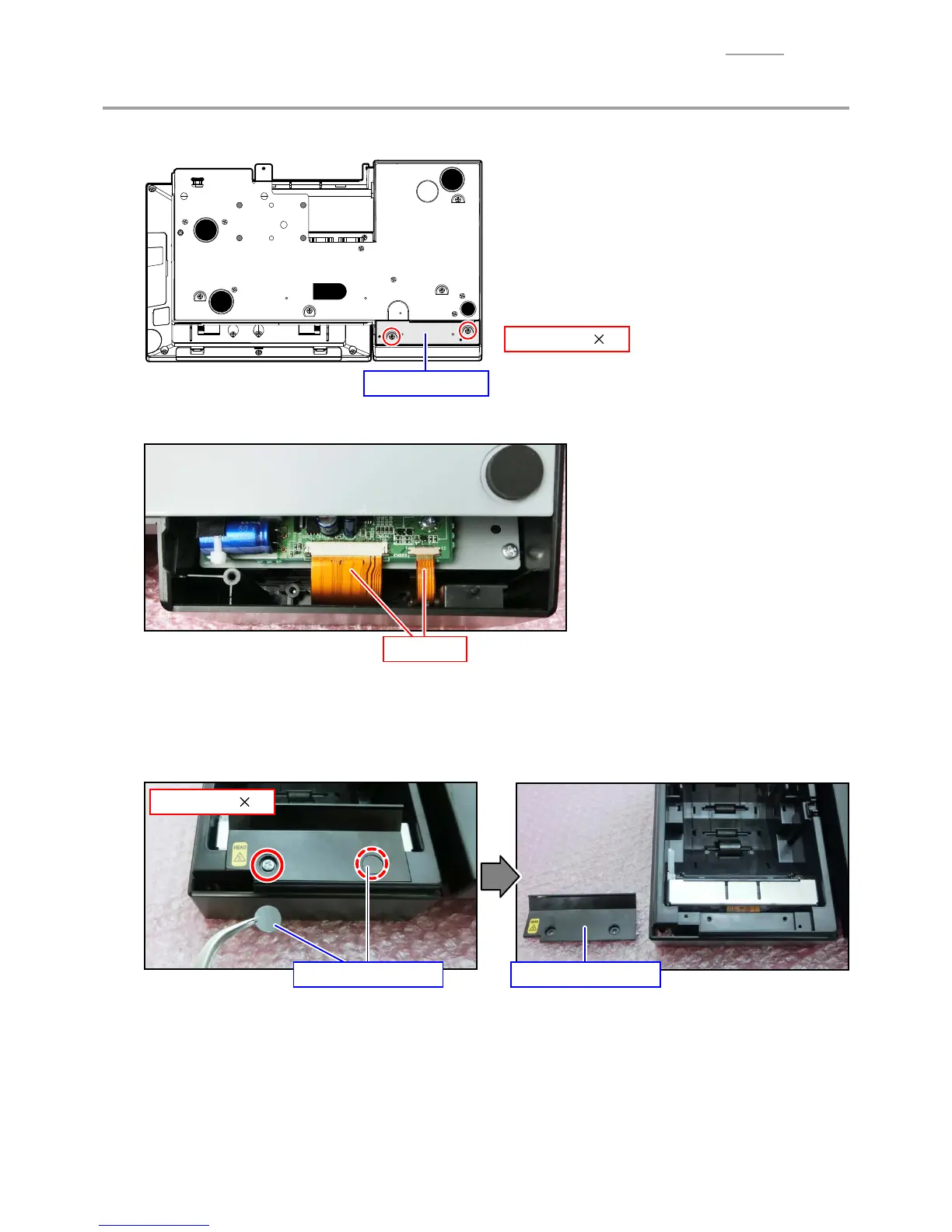

F-1. Undo two screws and remove the PLATE/BLIND.
Screw (S7) 2
PLATE/BLIND
F-2. Unlock the connector lock and disconnect two FPCs.
FPC
F-3. Remove the SHEET/BLIND.
NOTE: Be careful not to put a scratch on the MASK/PRINTER, when removing the SHEET/BLIND.
F-4. Undo two screws and remove the PLATE/BLIND.
MASK/PRINTER
Screw (S4) 2
SHEET/BLIND
