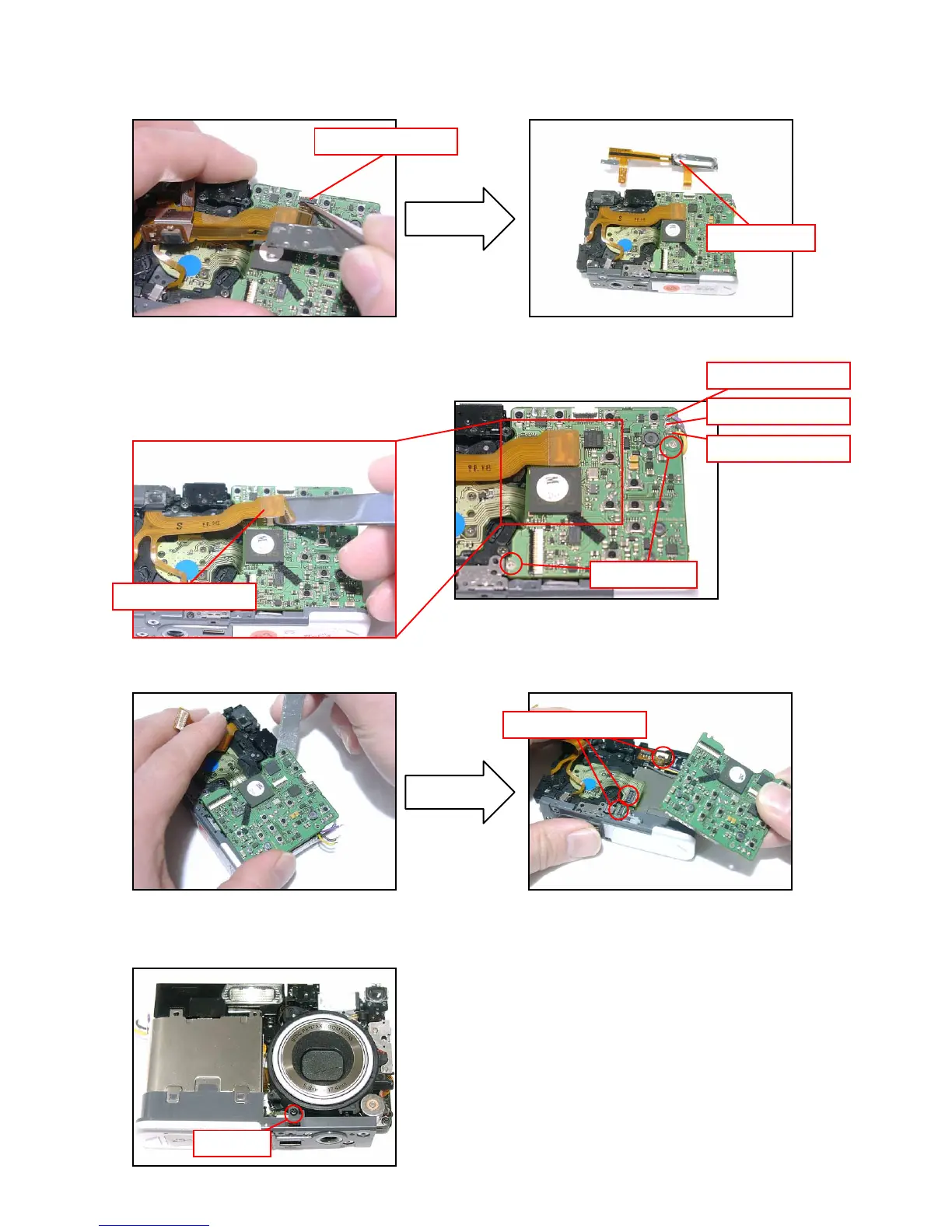

— 21 —
8.
Remove the connector and then the PW ASSY.
12.
Remove the main PCB.
■
Removing the lens unit
13.
Remove one screw.
PW ASSY
Connector
■
Removing the main PCB
9.
Remove two screws.
10.
Unsolder three lead wires.
11.
Disconnect the connector.
Connectors
Screw
Connector
Purple wire
Gray wire
Yellow wire
Screws (S1)
22
24
Table of Contents
Table of Contents
2
Specifications
3
Power Requirements
5
Block Diagram
7
Test Mode
8
Program Version Upgrading
9
To Update the Firmware Version
9
How to Restore the Firmware
10
To Install the Firmware
11
Adj Tool
12
Preparation
12
How to Use ADJ Tool When Replacing Lens Unit
14
How to Use ADJ Tool When Replacing MAIN PCB
15
Vcom DC Adjustment
16
Current Consumption
19
The Countermeasure for "System Error
19
Disassembly
20
Exploded View
27
Parts List
28
Printed Circuit Boards
29
Schematic Diagrams
31
